SECTION 7
HIGH PRESSURE WATER
p. 7-30
80078868
7.3.8 Hydraulic Cylinder
The inside diameter surface of the hydraulic cylinder should be inspected for wear
grooves and surface finish whenever the hydraulic cylinder heads are removed.
Excessive grooving on this bore is indicative of piston seal wear.

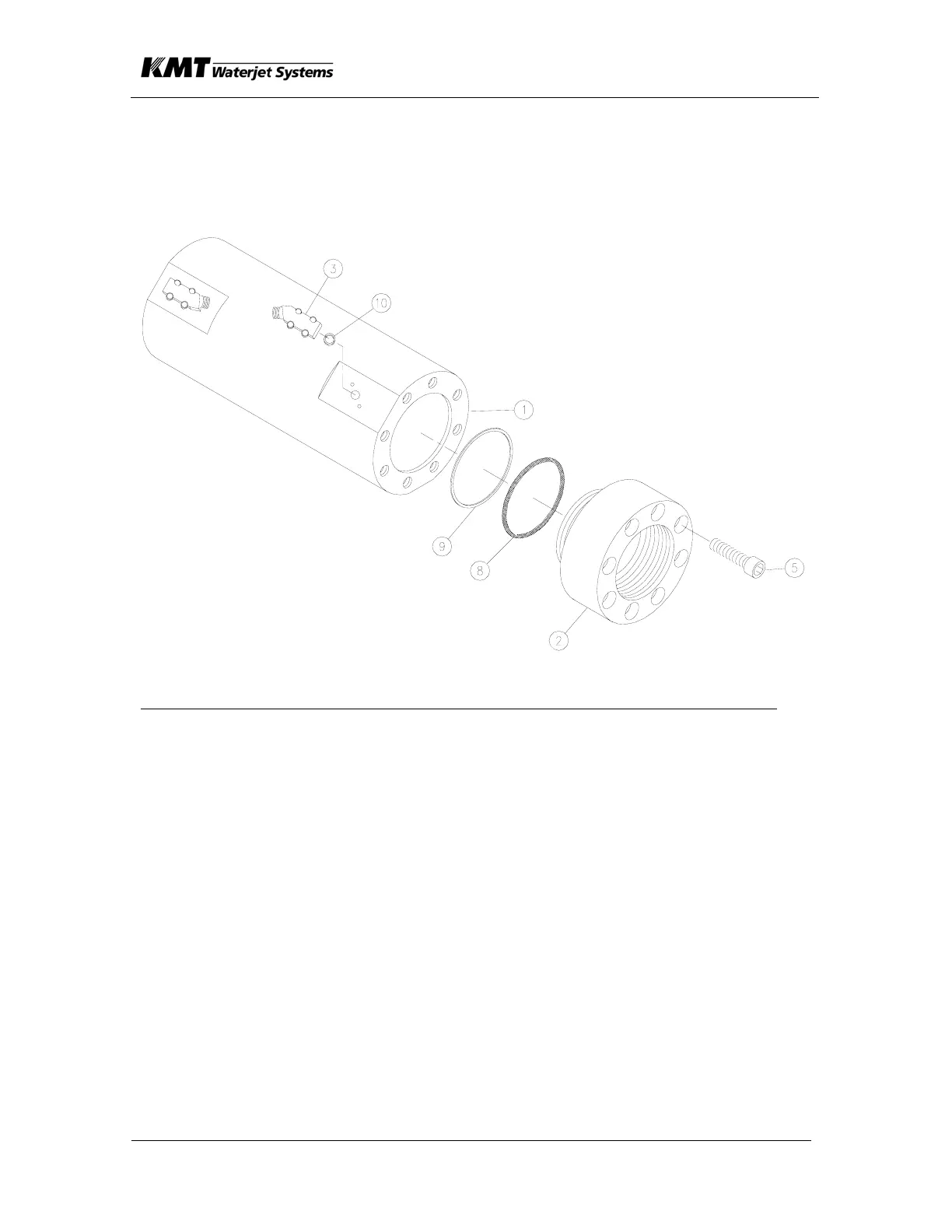

Figure 7-17
Item Description
(1) Hydraulic Cylinder (2) Cylinder Head (3) Proximity Switch
(5) Cap Screw (8) Back-up ring (9) O-ring
(10) Spacer
