SECTION 6
LOW PRESSURE WATER
Page 6-1
49831928
6 Low Pressure Water System
The SL-IV Waterjet Pump is equipped with two low pressure circuits:
• Cutting water supply for HP intensifier assembly
• Cooling water supply for the oil-to-water heat exchanger
The low pressure water system supplies the pump with the following:
• Water of sufficient cleanliness and pressure to the inlets of the HP cylinders.
• Cooling water of sufficient flow rate and low temperature to the oil-to-water
heat exchanger.

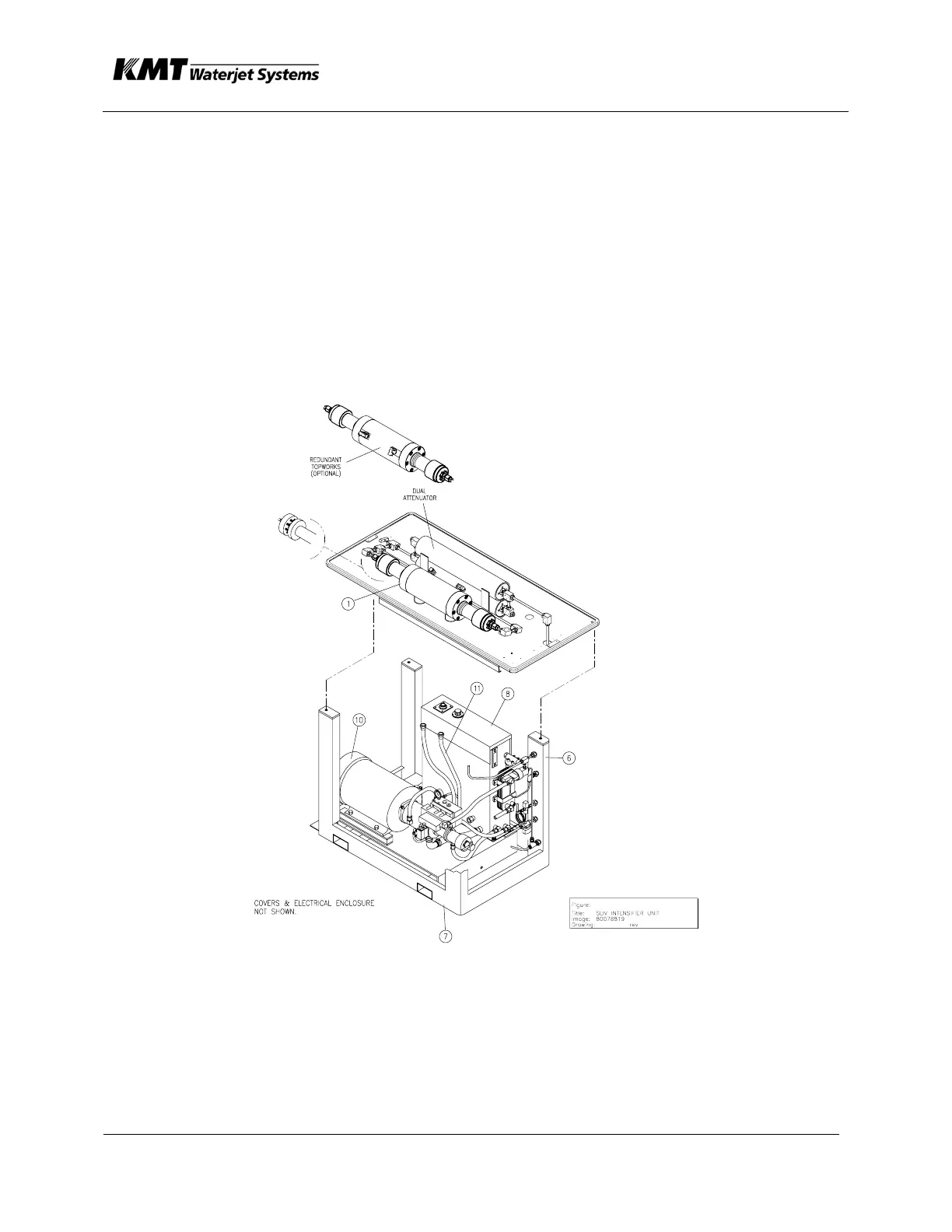

Figure 6.1 SLIV Waterjet Pump
Item Description
(1) Intensifier (6) Bulkhead/Frame (7) Drip Pan/Frame
(8) Hyd Reservoir (10) Motor/Pump Ass’y (11) Hydraulic Hoses
