SECTION 7
HIGH PRESSURE WATER
p. 7-1
80078868
SECTION 7
HIGH PRESSURE WATER
7 High Pressure Water
The high pressure (HP) water system takes the relatively low pressure water
inlet to up to maximum pressure in excess of 4,137 bar (60,000 psi) supplying
orifice diameters appropriate to the waterjet pump’s operating power (See
Specifications, Section 11).
7.1 Components
The HP water components include the hydraulic intensifier, HP attenuator(s),
HP dump valve, HP pressure indicator (optional), and HP piping.
Maintenance on the intensifier is discussed in detail in this section. In
addition to HP components and assemblies, the hydraulic cylinder features
of the intensifier are discussed in this section. See Section 12 for part number
information on specific components.

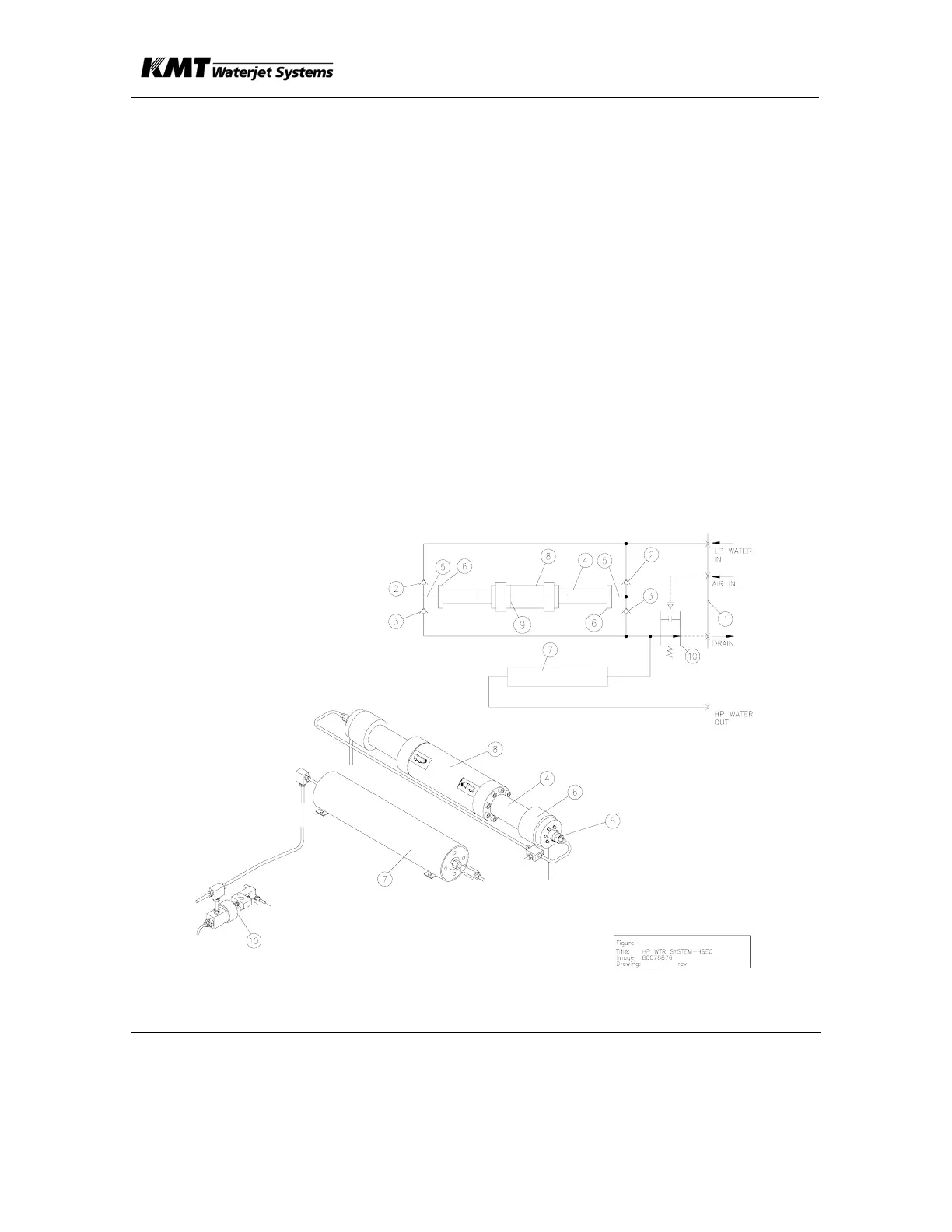

Figure 7-1
Item Description
1. Bulkhead Fittings
2. Inlet Check Valve
3. Discharge Check
Valve
4. HP Cylinder
5. Sealing Head
6. Hard Seal End Cap
7. HP Attenuator
8. Hydraulic Cylinder
9. Hydraulic Piston
10. HP Dump Valve
To Next Page
