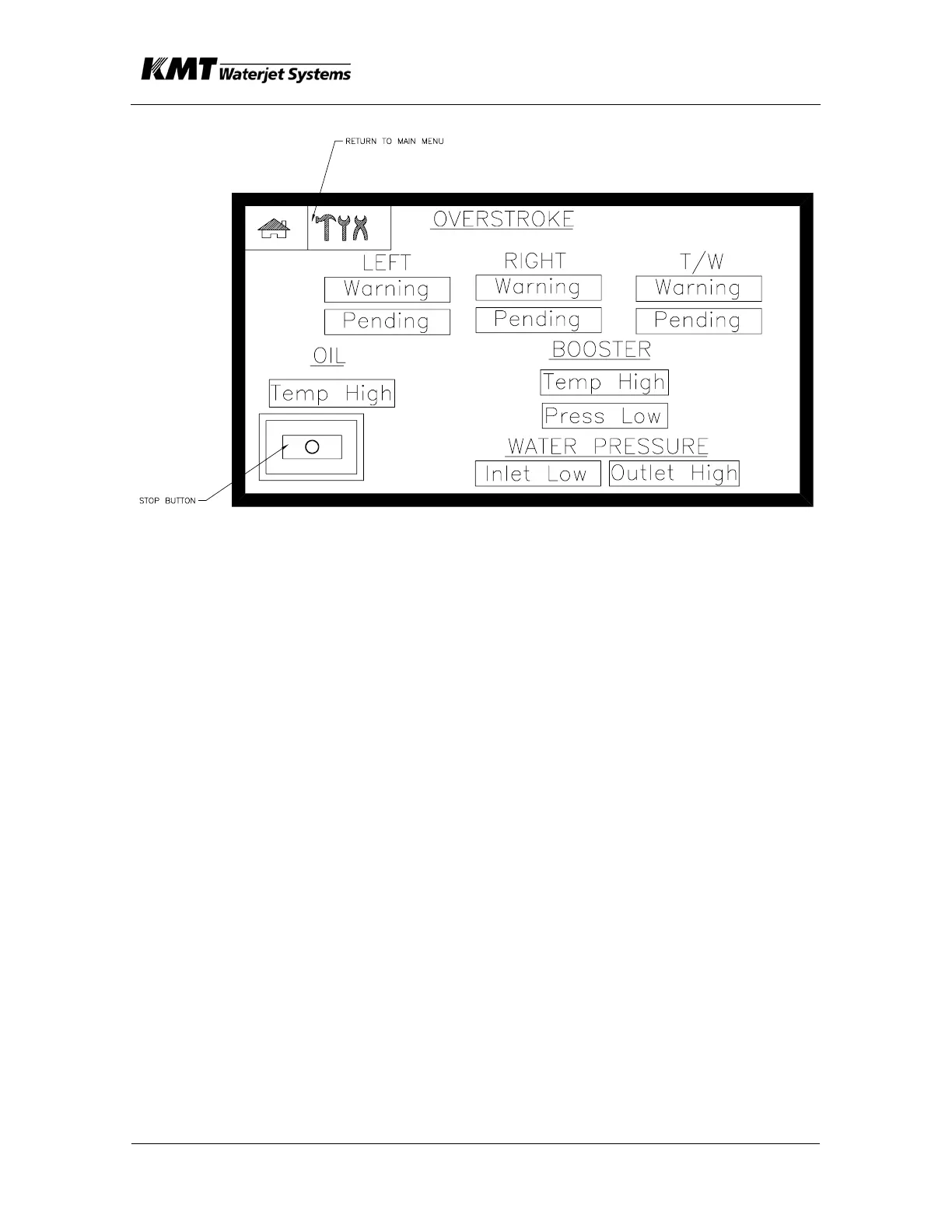

ALARM SCREEN
In ALARM condition, Message/Alarm, will flash. Messages are not visible if an
alarm condition does not exist. All alarm conditions are visible on this screen
and on START screen.
OIL Indicates high oil temperature. High oil temperature will shut the machine
off 60 seconds after detection of this alarm condition.
Low oil level (not on this screen) will immediately shut the machine off. This
alarm will appear on the ALARM BANNER.
BOOSTER PRESS LOW Alarm indicates low booster pump output pressure.
Low booster pressure will shut down the machine 40 seconds after alarm
condition is detected.
HIGH BOOSTER TEMPERATURE Alarm indicates high booster pump
temperature. The machine will shut down 30 seconds after this alarm
condition is detected.
PRESSURE INLET LOW alarm indicates low booster outlet water pressure. The
machine will be shut off if the condition persists for 30 seconds.
OUTLET HIGH alarm indicates excessively high discharge water pressure. This
alarm is available only if a pressure transducer is installed on the machine.
OVERSTROKE Alarms indicate overstroke conditions. First a WARNING, then
a PENDING SHUTDOWN alarm will occur. If condition persists the machine will
SHUTDOWN due to overstroke. This shutdown condition is indicated on the
ALARM BANNER.
