SECTION 9
HYDRAULIC SYSTEM
p. 9-2
49831993

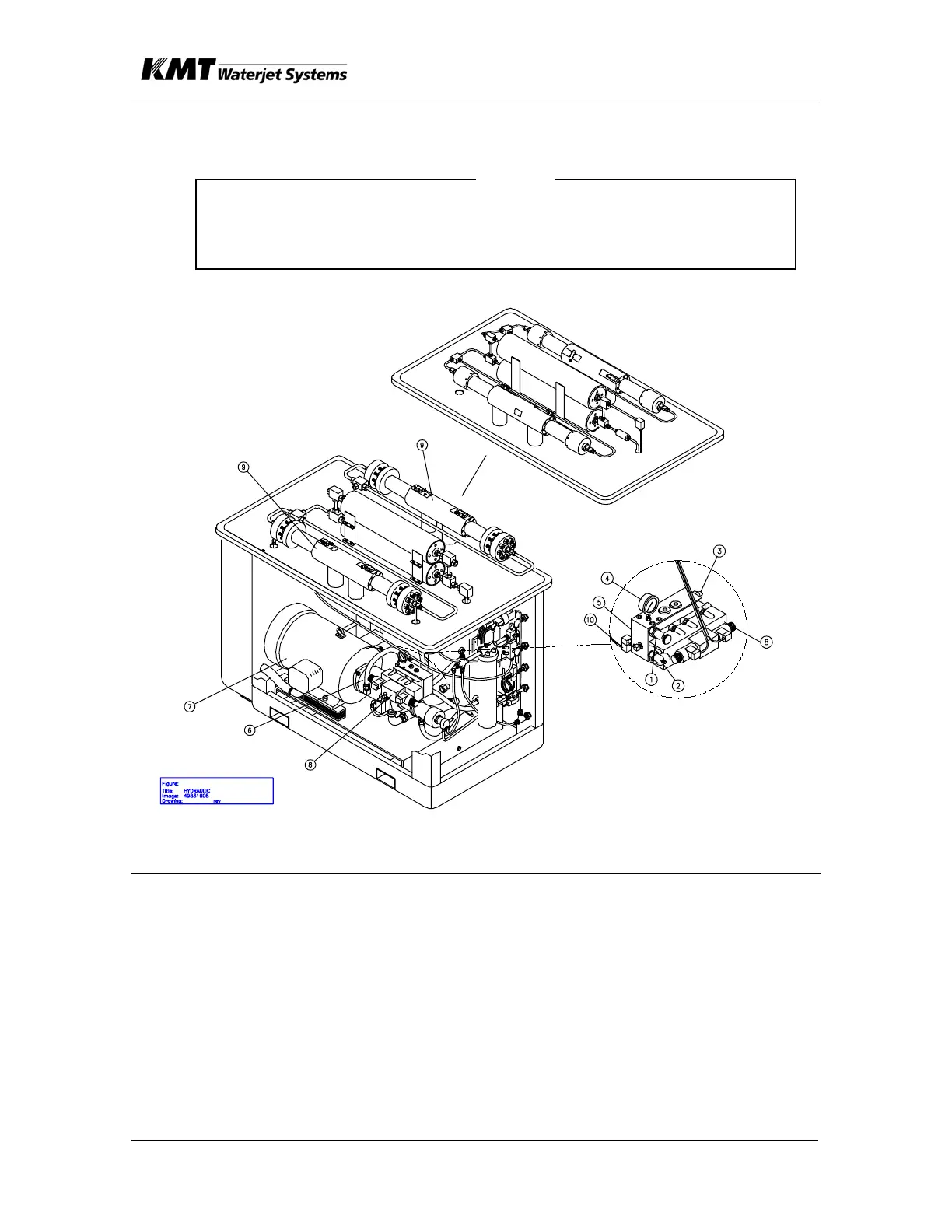

9.1.1 Components
Following are the hydraulic system components:
NOTE
The main pump is direct-mounted to the motor. The main
pump control includes hi and lo preset pressures. The operator
is able to switch between pressures at the operator’s console.
Item Description
(1) HI pressure control (2) LO pressure control (3) Fixed relief valve
(4) Gage (5) Manifold (6) Pump
(7) Motor (8) Directional Control Valve (9) Hydraulic Cylinder
(10) Hi-Lo Solenoid Valve
