SECTION 9
HYDRAULIC SYSTEM
p. 9-5
49831993
9.3 Motor/Hydraulic Service Maintenance
The hydraulic oil filter should be checked daily and replaced when the
visual indicator is in the red zone. The hydraulic oil should be replaced
every 3000 hours or yearly, whichever occurs first. For hydraulic oil and
filter maintenance, see Section 10, Recirculation System.
The hydraulic system components that require periodic maintenance are
the motor and the manifold. The motor needs to be serviced every 5000
hours of use. The operating pressure settings of the manifold needs to
be checked daily and adjusted if necessary.
Recommended Tools: Manual Grease Gun
Open End Wrench 14mm (9/16”)
Rags
Parts: Bearing Grease, SRI #2 or equivalent

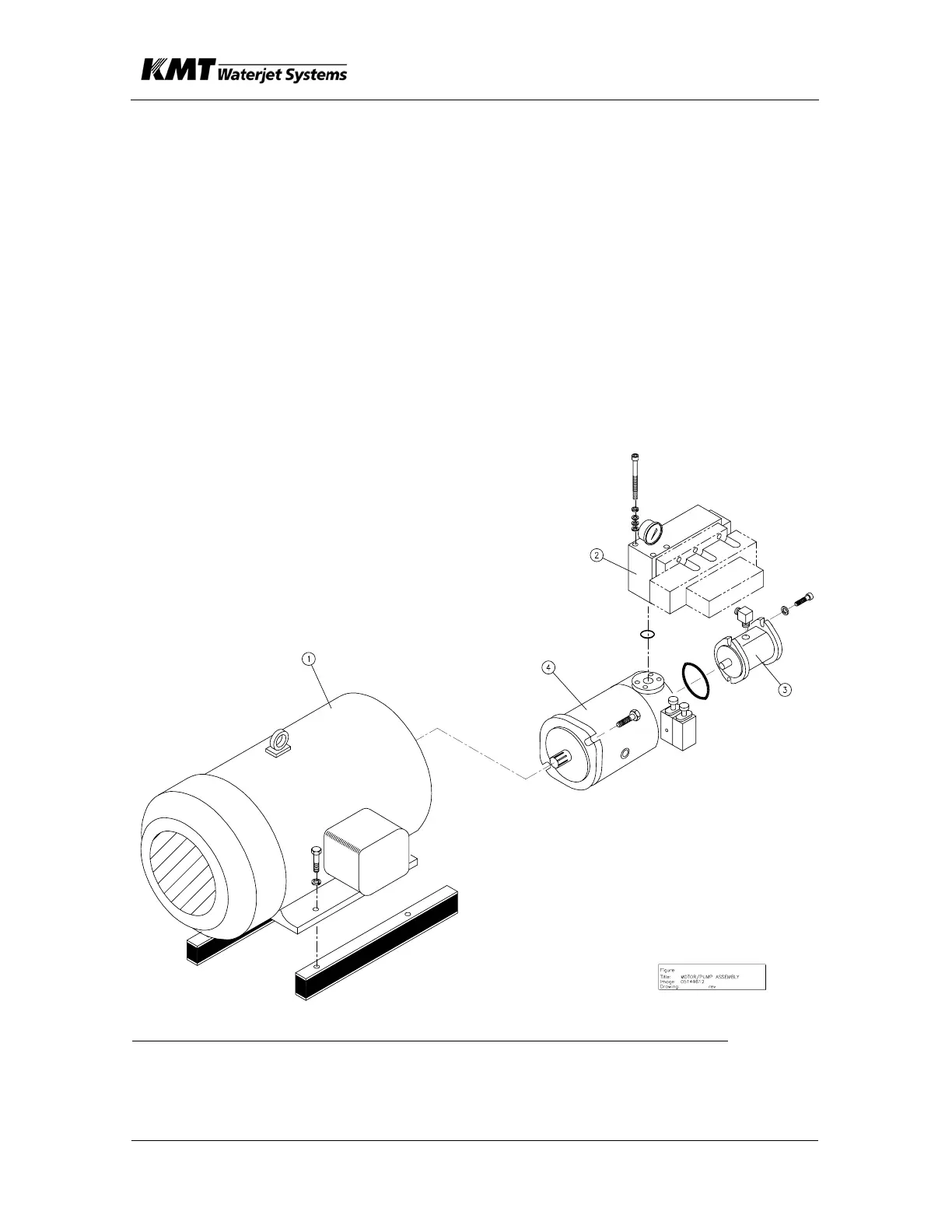

Item Description
(1) Motor (2) Manifold (3) Recirculation Pump
(4) Hydraulic Pump
