SECTION 2
INSTALLATION
Page 2-5
49831894

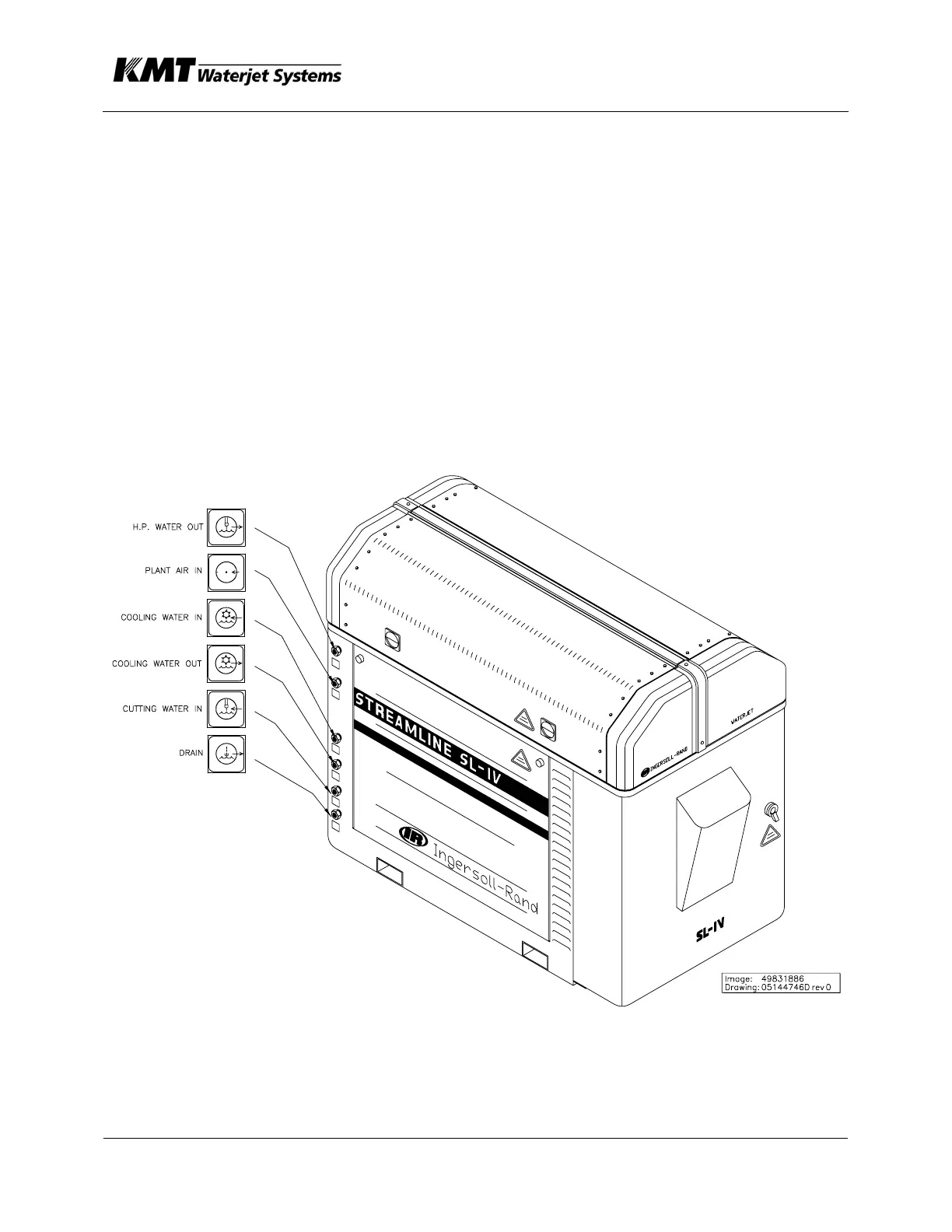

2.2.2 Service Connections
Cooling Water IN/OUT: Supply piping must be properly sized to handle the
necessary flow, and pressure. Piping must meet
national and local piping codes.
Cutting Water IN: Supply piping must be properly sized to handle the
necessary flow and pressure. Piping must meet
national and local piping codes.
HP Water OUT: Properly rated, sized, and well supported high
pressure (HP) piping must be connected to the
pump.
Drain: Cutting water released in the pump is discharged
from the drain port and must be piped to an
appropriate location (i.e. sewer line). Piping must
meet national and local piping codes.
