SECTION 6
LOW PRESSURE WATER
Page 6-2
49831928

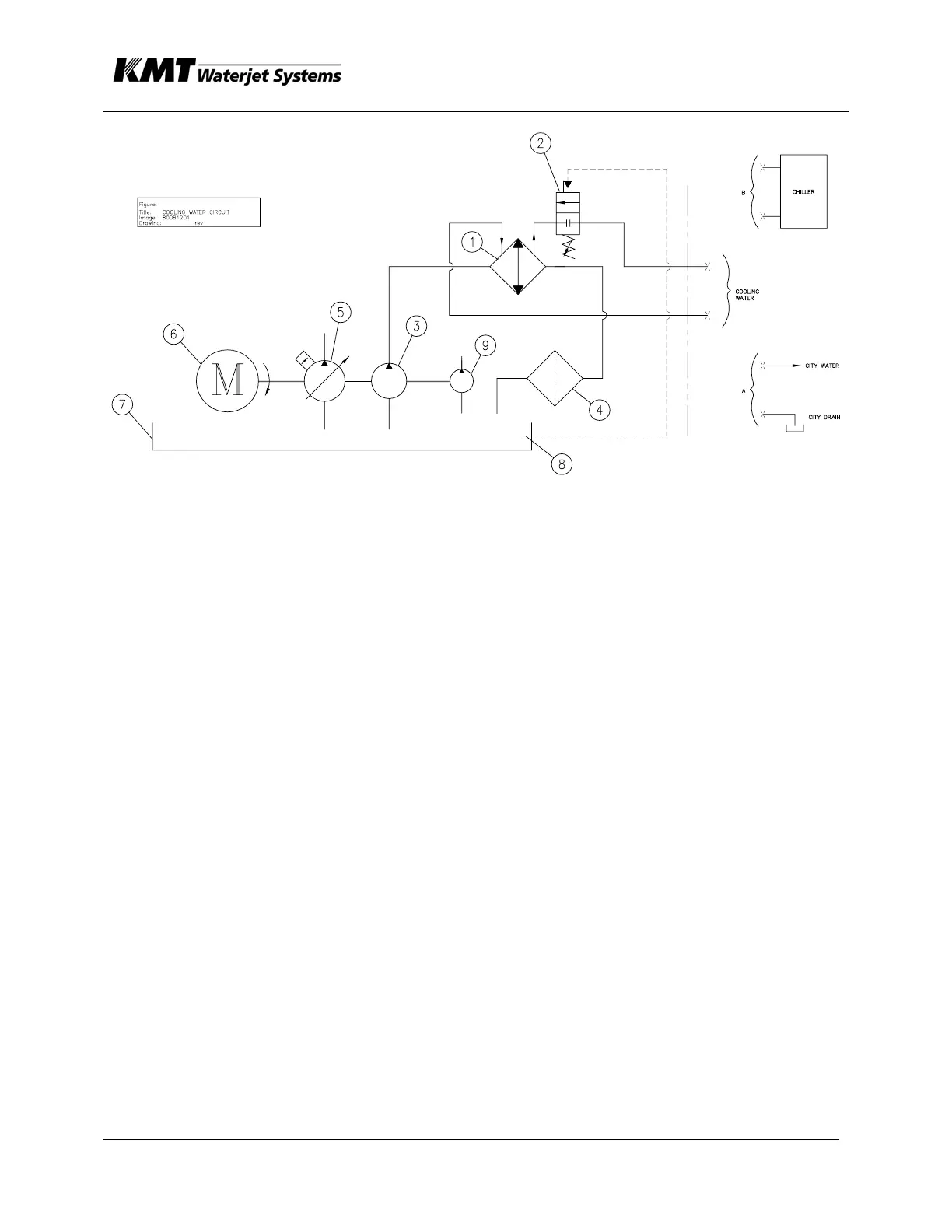

Figure 6.2 Cooling Water Circuit-SLIV Waterjet Pumps
(1) Heat Exchanger, Oil to Water Cooler (2) Water Modulating Valve
(3) Hydraulic Pump, Gear Type Recirculating (4) Hydraulic Filter, Return Line
(5) Main Hydraulic Pump (6) Electric Motor
(7) Hydraulic Reservoir (Tank) (8) Temperature Bulb/Reservoir Well
(9) Cutting Water Booster Pump
