SECTION 8
ELECTRICAL SYSTEM
p. 8-2
05148408

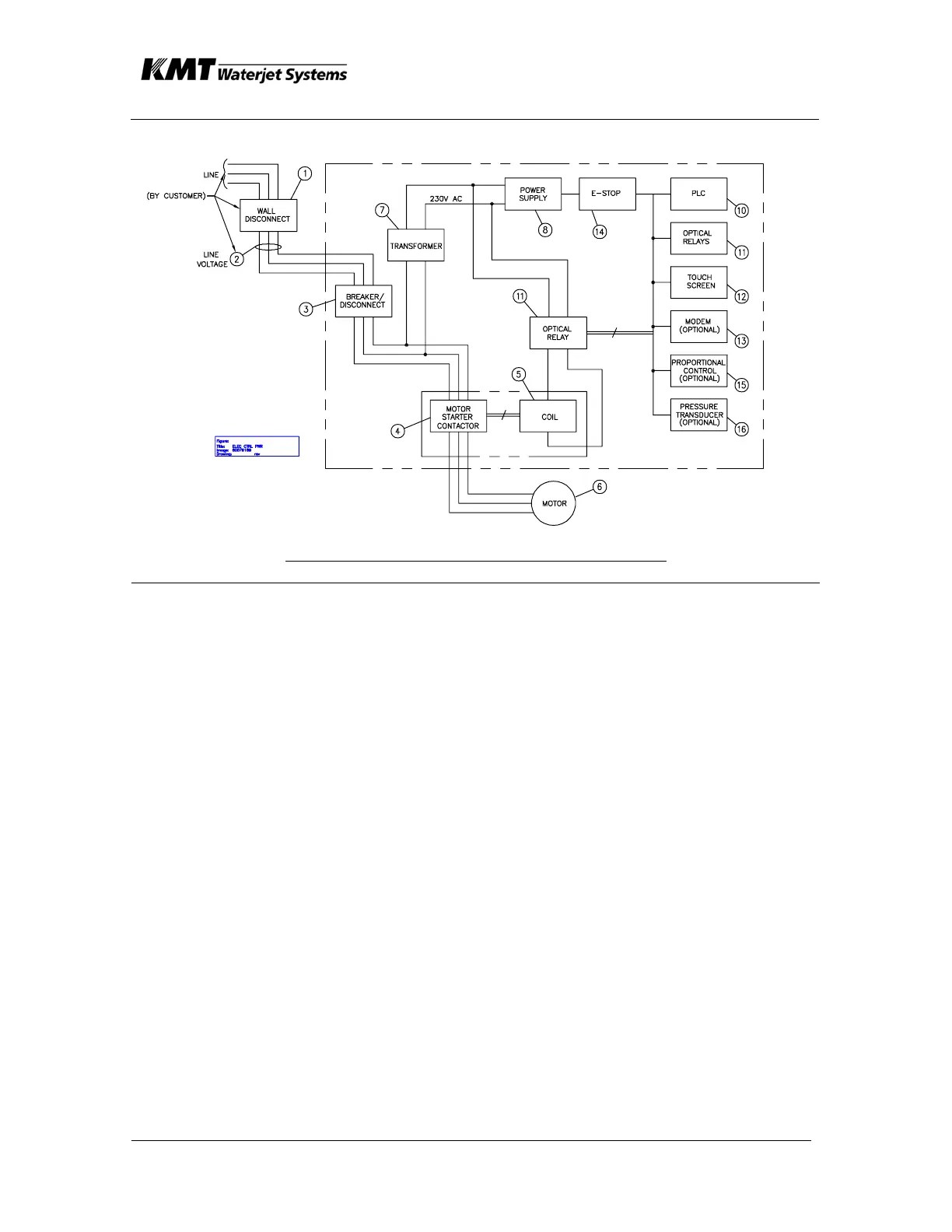

Figure 8-1 ELECTRICAL CONTROL POWER
Item Description
1 Wall Disconnect-Main Power 10 Programmable Logic Controller
2 3-Phase Line (Service Drop) Power 11 Optical Relays
3 Enclosure Door Disconnect/Circuit
Breaker
12 Touch Screen Interface Panel
4 Motor Starter Contactor(s) 13 Modem (Optional)
5 Contractor Coil(s) (230V) 14 Emergency Stop Button
6 Electric Motor 15 Proportional Control (Optional)
7 Transformer (230V AC Out) 16 Pressure Transducer (Optional)
8 Power Supply (24V DC Out)
