SECTION 10
RECIRCULATION SYSTEM
Page 10-7
49836026
Oil Tank
The oil tank is equipped with the following:
• Visual temperature and level indicator
• Air breather and filter that prevents dirt from being sucked into the tank
whenever the oil level drops, then allows air to escape when the level rises
• Drain valve, and
• Fill components.
The fill components consists of the Oil Filter Head, Fill Port, and the Fill Port
Cap.
The breather is not a fill component, and must not be used
as a fill point.
After 3,000 hours of operation, or yearly (whichever happens first), analyze the
hydraulic oil and replace if necessary.

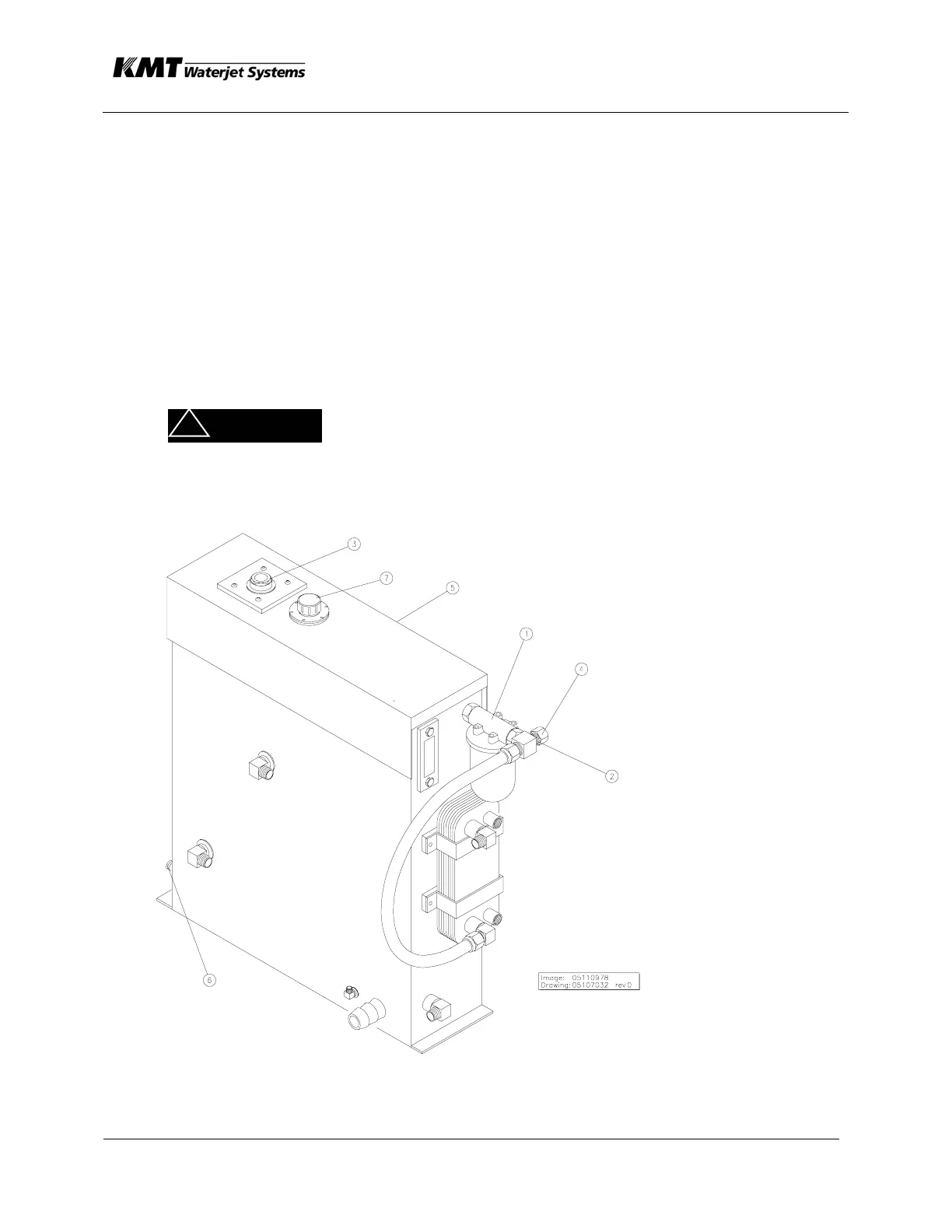

Item Description
(1) Filter Assembly
(2) Oil Fill Port
(3) Temperature Sensor
(4) Oil Fill Port Cap
(5) Oil Tank Cover
(6) Shut-Off Valve
(7) Breather
ARNING
!
To Next Page
