SECTION 6
LOW PRESSURE WATER
Page 6-6
49831928

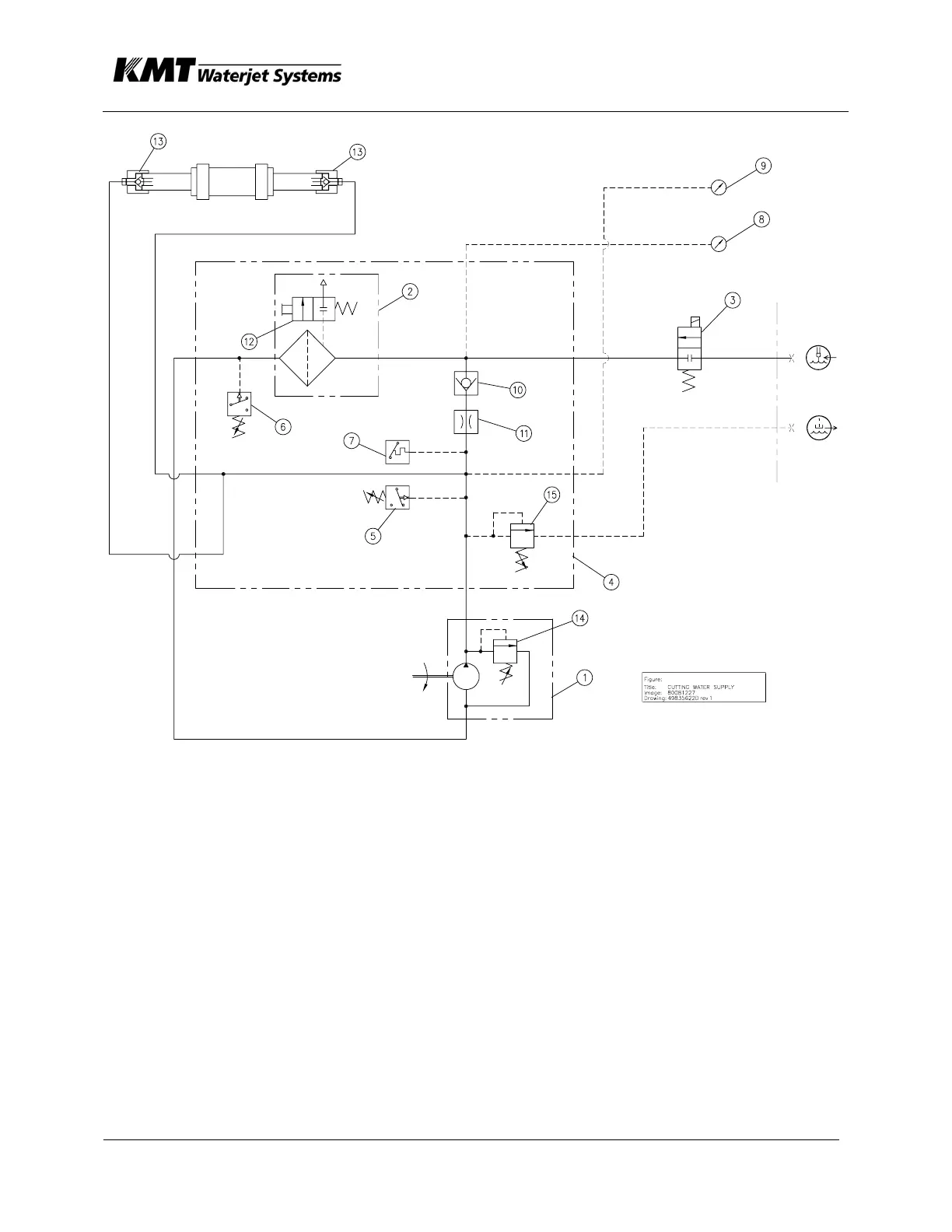

Figure 6.4 Cutting Water Supply System
(1) Booster Pump, Cutting Water Supply (2) Filter, Cutting Water Supply
(3) Solenoid Shutoff Valve, Cutting Water
Supply
(4) Filter Assembly, LP Water
(5) Pressure Switch, 60psig, Low Booster
Pump Pressure
(6) Pressure Switch, 30psig, Low
Supply Water Pressure
(7) Temperature Switch, High Booster Pump
Out
(8) Pressure Gage, Cutting Water
Supply Pressure
(9) Pressure Gage, Booster Pump Output
Pressure
(10) Check Valve
(11) Orifice (12) Air Bleed Valve
(13) Sealing Head Assembly, Intensifier (14) Relief Valve, Built-in
(15) Relief Valve, Circuit
To Next Page
