KMT STREAMLINE SL-IV 50 PLUS User Manual

SECTION 7
HIGH PRESSURE WATER
p. 7-17
80078868

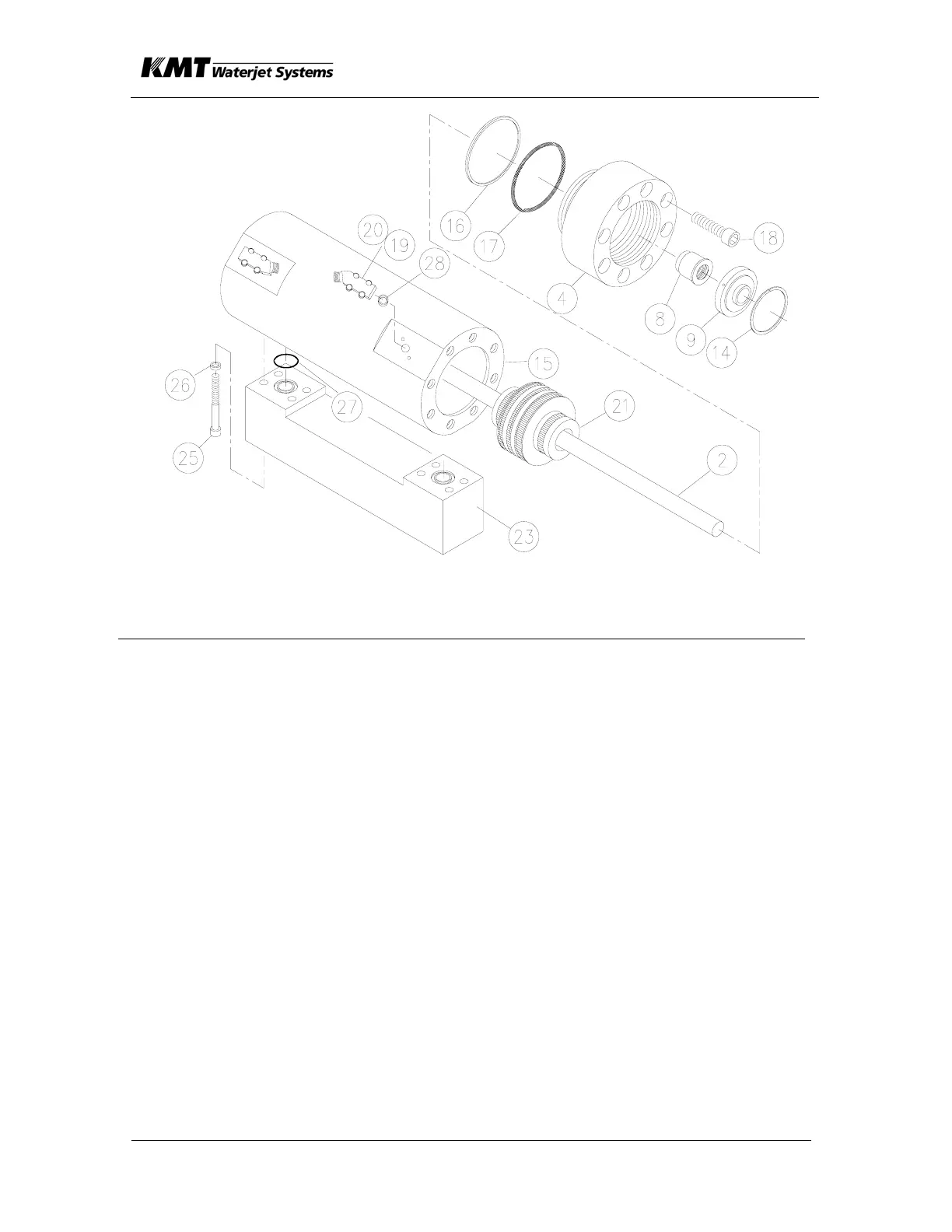

Figure 7-9
Item Description
2. Plunger 9.
Bushing Retainer
Flange
18. Cap Screw
4. Cylinder Head 19. Proximity Switch
15. Hydraulic Cylinder 20. Cap Screw
16. O-ring 21. Hyd Piston Assy
8.
Hyd Cartridge,
Plunger Seal Assy
17. Backup Ring 28. Spacer
7.3 Intensifier Subassemblies Inspection and Repair
The inspection and repair of the following subassemblies will be discussed:
• Discharge HP Check Valve, Section 7.3.1
• Inlet Check Valve, Section 7.3.2
• Sealing Head, Section 7.3.3
• HP Cylinder, Section 7.3.4
• Plunger, Section 7.3.5
• Hydraulic Seal Cartridge, Section 7.3.6
• Hydraulic Piston, Section 7.3.7
• Hydraulic Cylinder, Section 7.3.8
