D3-2 24VDC Electrical System Components D03026

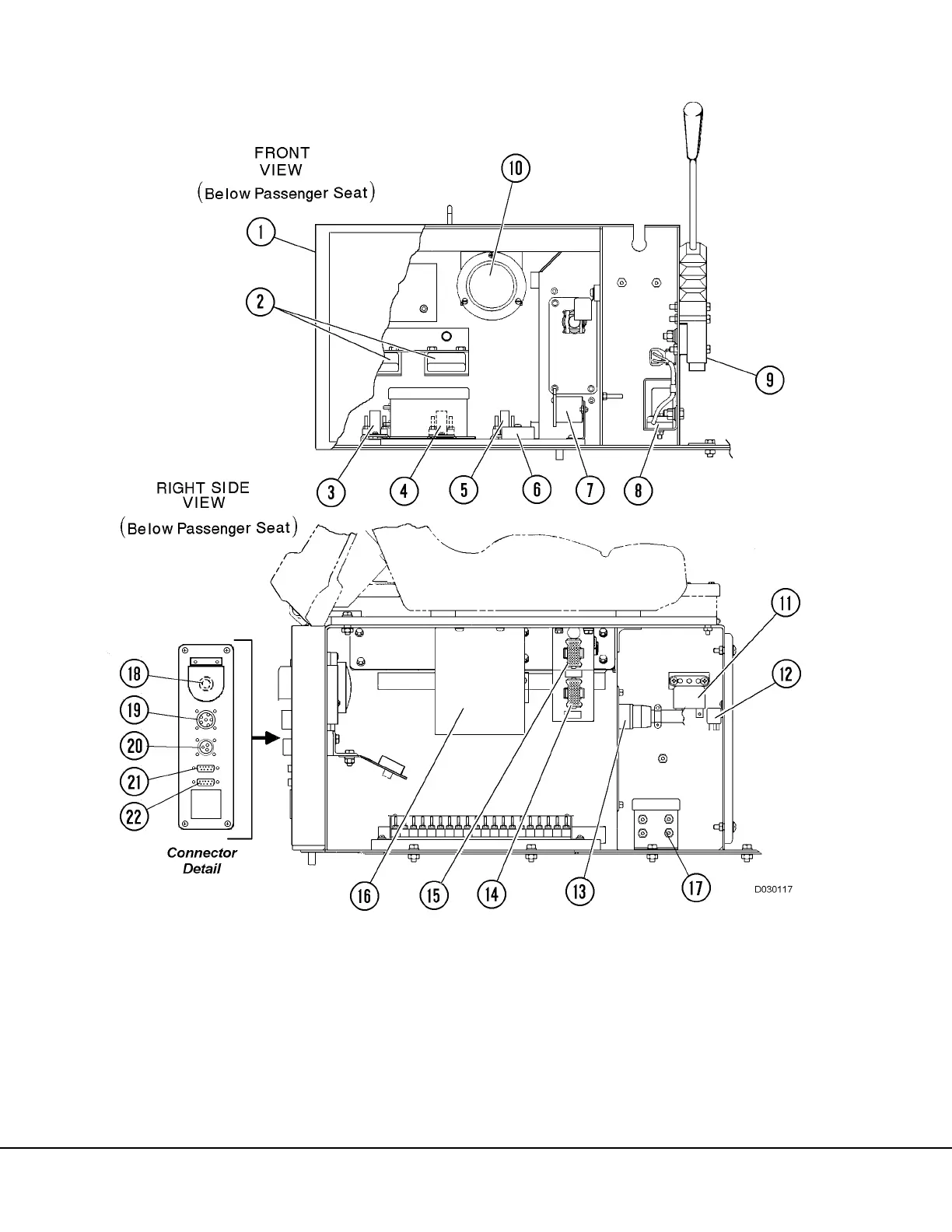

FIGURE 3-1. PASSENGER SEAT BASE COMPARTMENT
1. Seat Base
2. Tail Light Resistor/Diodes
(RD1/RD2)
3. Terminal Board (TB13)
4. Terminal Board (TB12)
5. Terminal Board (TB11)
6. 5 Minute Idle Timer
7. 5 Minute Idle Contactor
8. Inclinometer
9. Hoist Control
10. Compartment Service Light
11. Brake Warning Buzzer (BWB)
12. 5 Minute Idle Relay
13. Connector (RP226)
14. Connector (RP231)
15. Connector (RP230)
16. AID Module
17. Lube System Cycle Timer
18. Data Store Switch
19. QUANTUM Diagnostic Port
(Engine)
20. CENSE Diagnostic Port
(Engine)
21. G.E. Propulsion System
Diagnostic Port
22. For Optional Equipment
