FUEL RECEIVER
The fuel receiver (3, Figure 5-2) is mounted on the fuel
tank (2). Keep the cap on the receiver to prevent dirt
build-up during truck operation. If fuel spills from
breather valve or tank does not fill completely, check
breather to see that the balls are in place and the filter
is clean.
91493

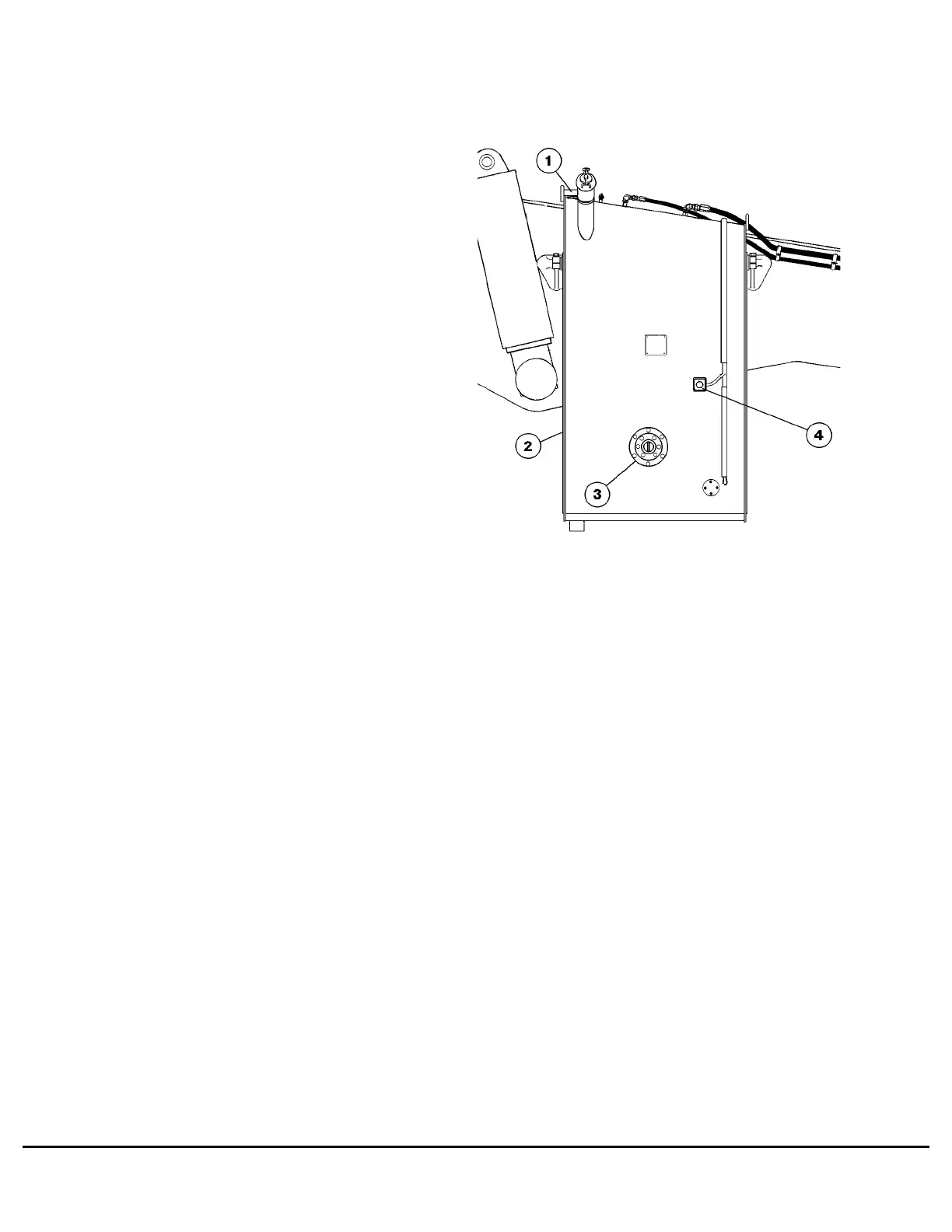

FIGURE 5-2. FUEL TANK BREATHER AND
RECEIVER INSTALLATION
1. Breather Valve
2. Fuel Tank
3. Fuel Receiver
4. Fuel Level Gauge
NOTE:
This Illustration Represents a Typical Installation.
Fuel tank may vary in size, shape and location
depending on truck model.
M5-2 Buckeye Quick Fill Fuel System M05003 5/90
