E03012 2/02 Statex III Electrical Checkout Procedure E3-7
1. Record the accelerator pedal % (percent) values shown on the MONITOR ANALOG INPUT
CHANNELS screen:
a. Pedal OFF - note on paper the % value shown on the PTU screen for “acc pedal”. (For
example, 11.3)
b. Depress the accelerator pedal and observe the % value increases - note on paper the %
value shown on the PTU screen when the pedal is fully depressed. (For example, 87.2)
Note: It is also necessary to perform the above procedure for the retard pedal as described in the
following step. Retard pedal % values should be recorded at this time as follows:
2. Record the retard pedal % (percent) values shown on the MONITOR ANALOG INPUT CHAN-
NELS screen:
a. Pedal OFF - note on paper the % value shown on the PTU screen for “ret pedal”. (For exam-
ple, 9.7)
b. Depress the retard pedal and observe the % value increases - note on paper the % value
shown on the PTU screen when the pedal is fully depressed. (For example, 89.5)

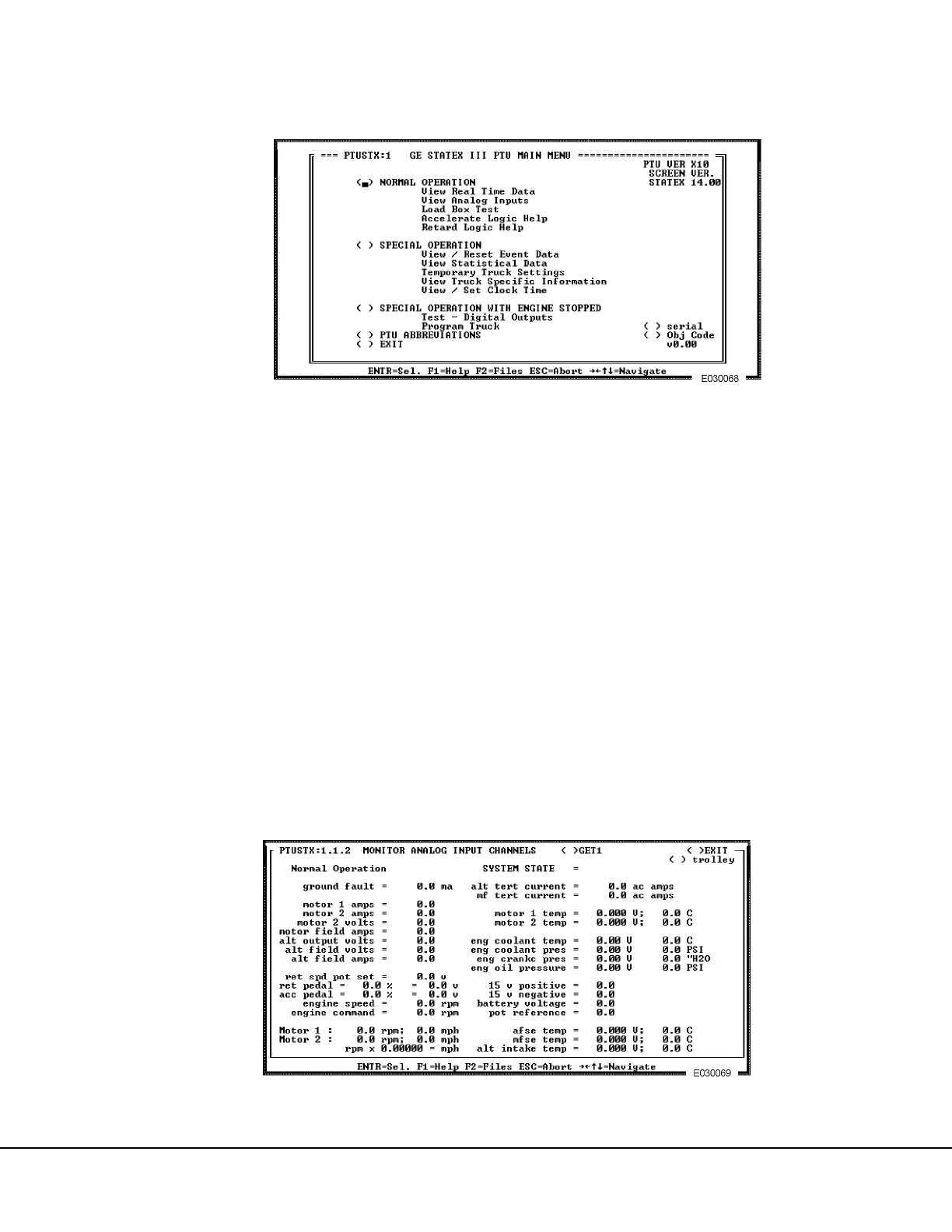

FIGURE 3-4. PTU MAIN MENU
FIGURE 3-5. MONITOR ANALOG INPUT CHANNELS SCREEN
