Komatsu 830E - Page 302

G3-12 Front Wheel Hub and Spindle 04/03 G03018

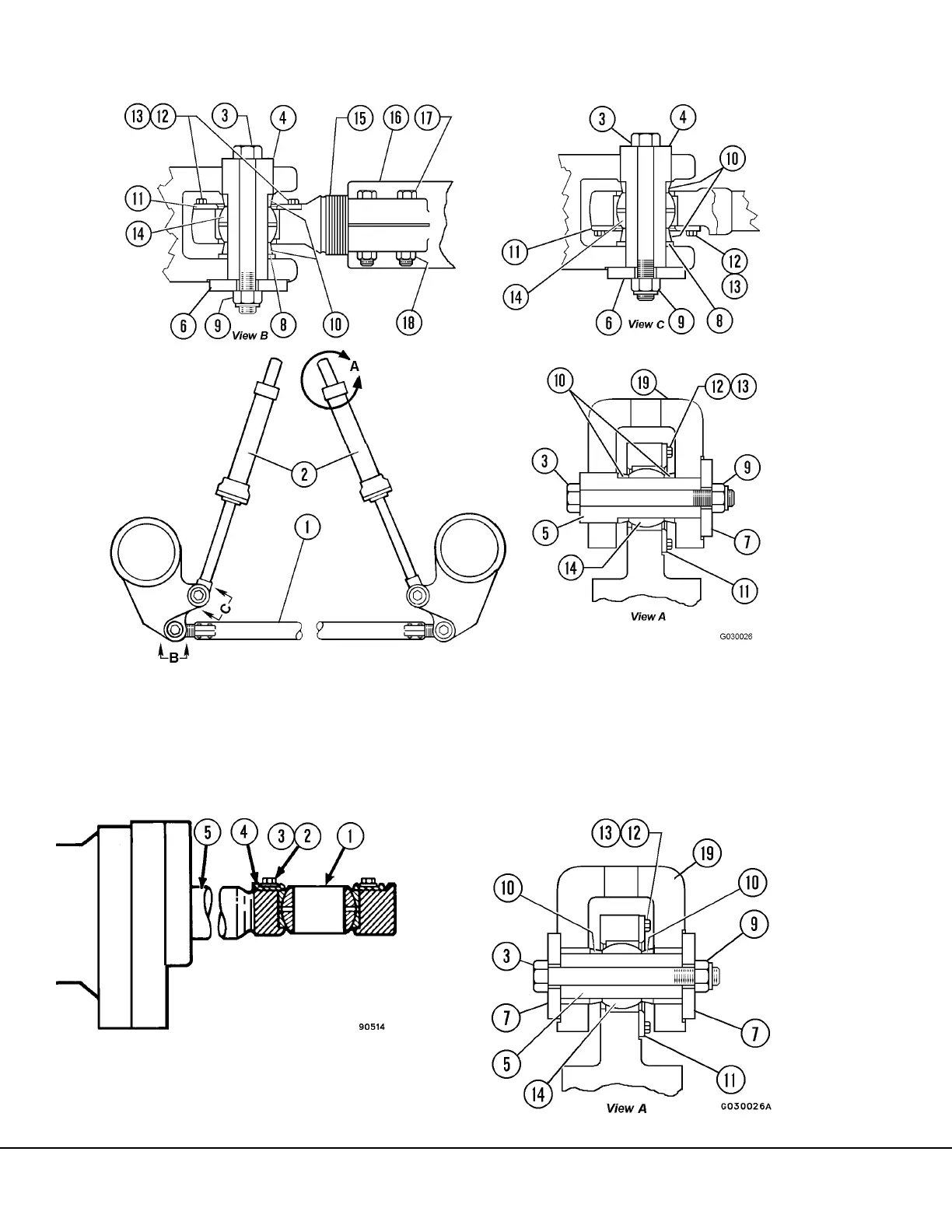

FIGURE 3-12. STEERING CYLINDER AND TIE ROD INSTALLATION
1. Tie Rod Assembly
2. Steering Cylinder
3. Capscrew
4. Pin
5. Pin
6. Retainer
7. Retainer
8. Hardened Washer
9. Locknut
10. Bearing Spacer
11. Bearing Retainer
12. Capscrew
13. Lockwasher
14. Bearing
15. Tie Rod End
16. Tie Rod Assembly
17. Capscrew
18. Locknut
19. Main Frame Mount
FIGURE 3-13. STEERING CYLINDER
1. Bearing
2. Capscrew
3. Lockwasher
4. Bearing Retainer
5. Rod End
EARLIER
PRODUCTION
