1. Actuator Base
2. Brake Valve
3. Orfice Set-Screw

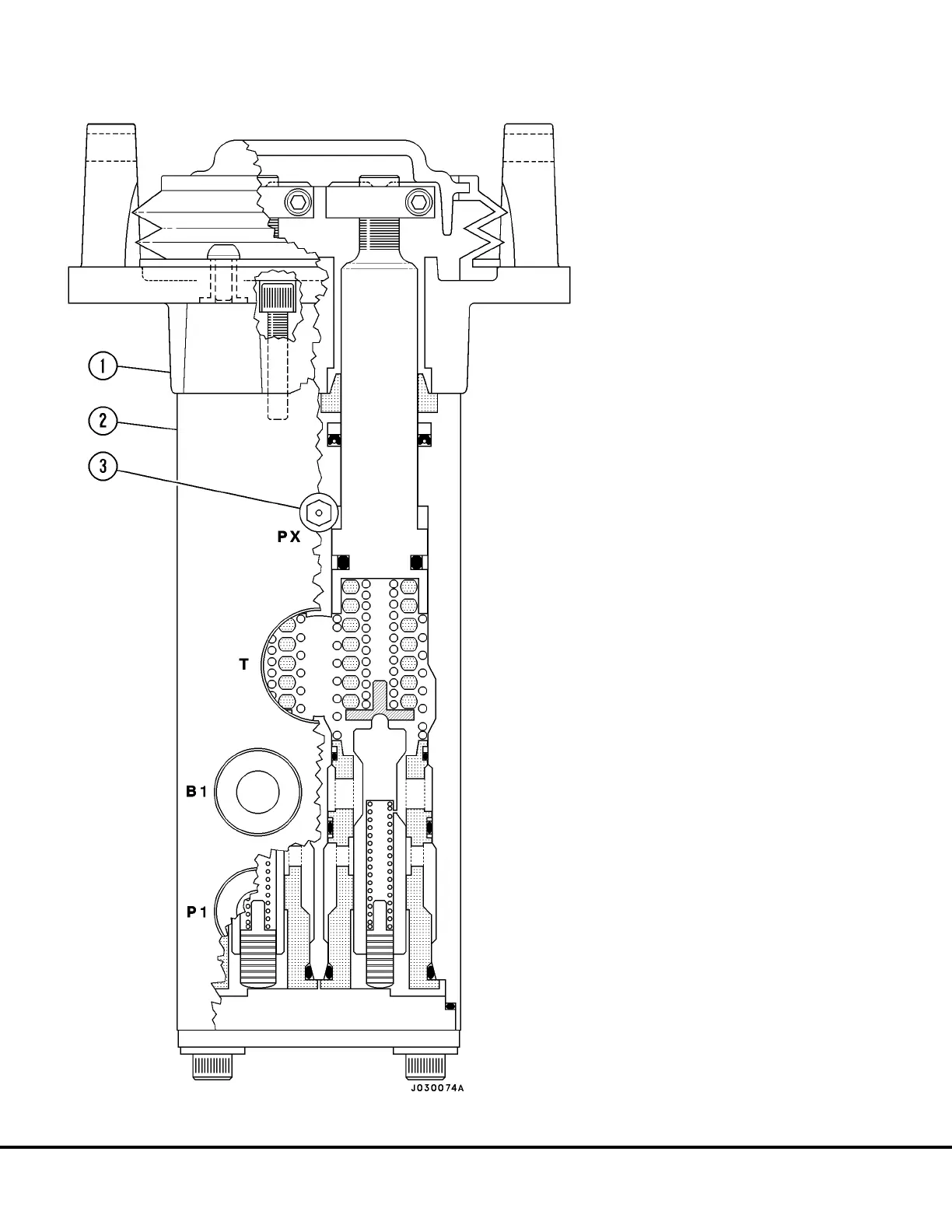

FIGURE 2-3. BRAKE VALVE
(PARTIAL CUT-AWAY)
J2-6 Brake Circuit J02032
