1. Bleeddown Solenoid
2. Quick Disconnect, Brake System
3. To Steering Accumulators
4. Low Steering Pressure Switch
5. Relief Valve (500 psi)
6. Flow Amplifier
7. Feedback Pressure to Unloader Valve
8. Check Valve
9. Relief Valve (4000 psi)
10. Bleeddown Manifold Valve Assembly
11. Tank Return Line
12. Supply (From Filter)
13. Check Valve (Piloted)
14. Supply to Flow Amplifier
15. Hoist Pilot Valve Return to Tank
16. Brake System Supply
17. Return From Flow Amplifier

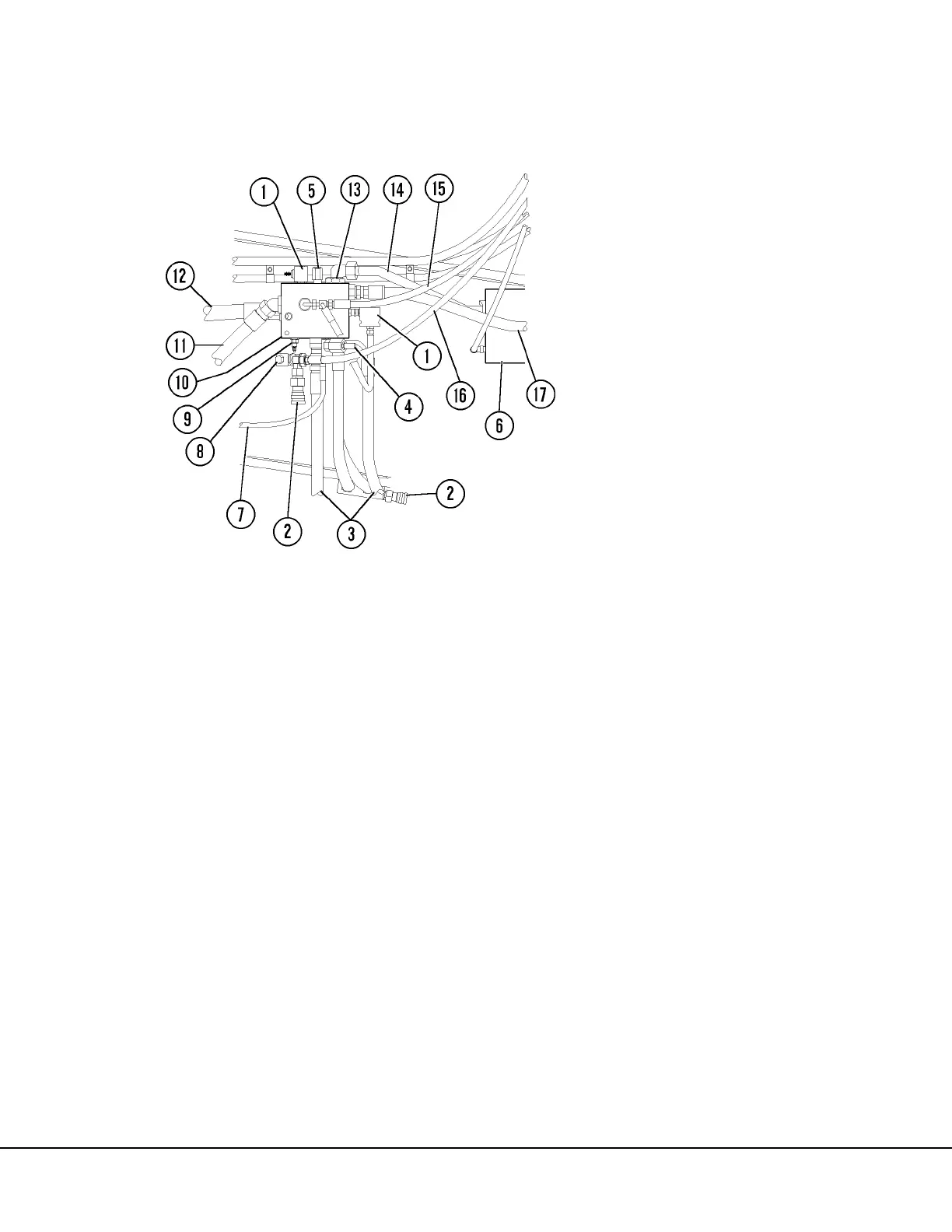

FIGURE 10-4. BLEEDDOWN MANIFOLD
