LEFT SIDE FILL
This location permits fueling the truck from the left side.
Keep the cap on the receiver to prevent dirt build up in
valve area and nozzle grooves. If fuel spills from tank
breather valve, or tank does not completely fill, check
breather valve to see that float balls are in place and
outlet screen is clean. If valve is operating properly, the
problem will be with the fuel supply system.

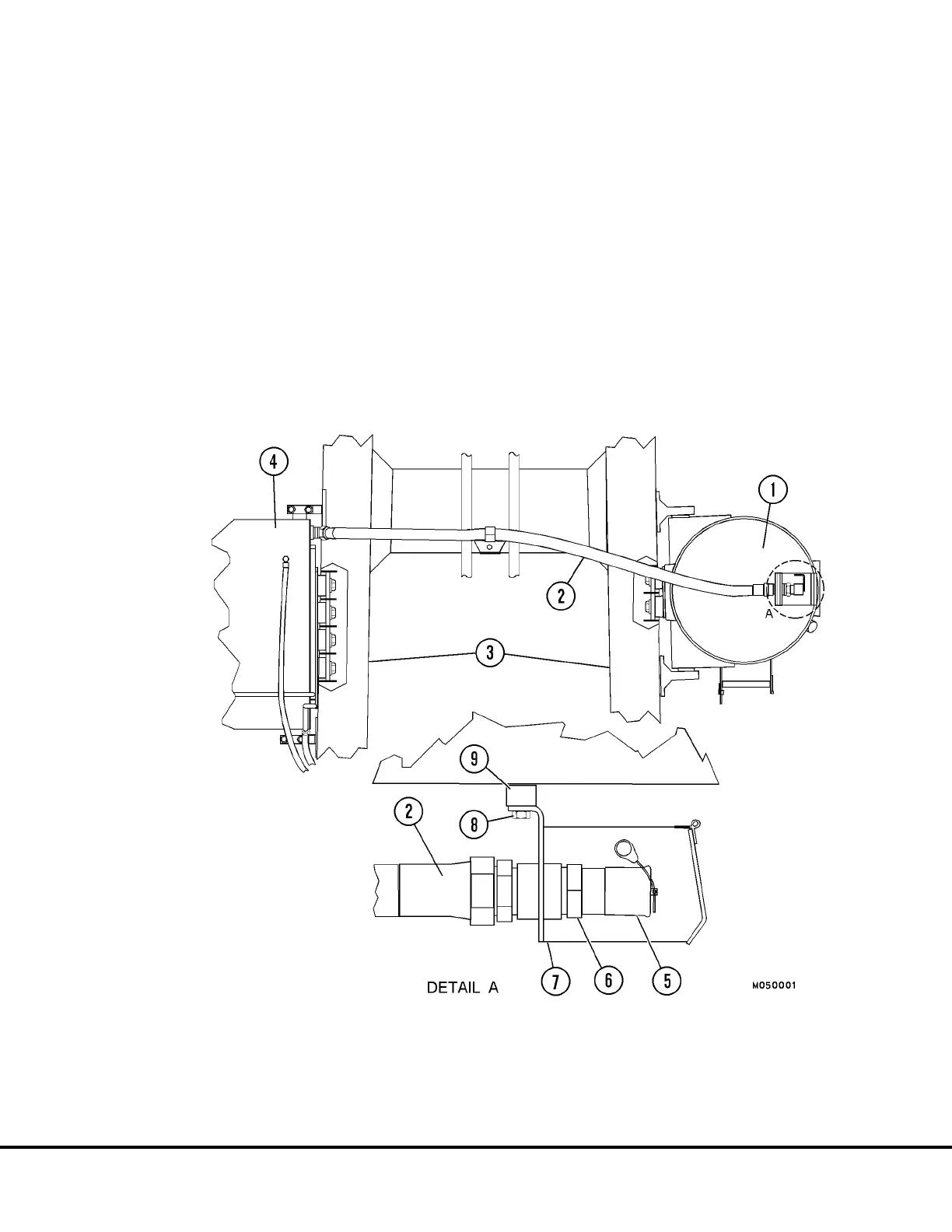

FIGURE 5-3. LEFT SIDE FILL
1. Hydraulic Tank 3. Frame Rails 5. Filler Cap 7. Refueling Box
2. Filler Hose 4. Fuel Tank 6. Receiver Assembly 8. Capscrew
9. Tapped Bar
NOTE: This Illustration Represents a Typical Installation. Installation may vary depending on truck model.
M05002 10/96 Wiggins Quick Fill Fuel System M5-3
