7. Remove 2 screws (Figure 2-8) holding the roller
track to the bottom of the door glass.
8. Support glass in door frame as shown (1, Figure
2-9). Remove screws (2) that hold the adapter
for the window regulator track.
Remove the screw at the lower end of the window
channels. It is necessary to pull the rubber felt insert
(2, Figure 2-10) out of the channel in order to be able
to remove the screws.
9. Remove the trim material covering the screws
holding the window frame to the door. Remove
screws (1, Figure 2-11) holding window frame to
the door.
Note: Screws along the bottom of window frame may
be shorter than along the top and sides.

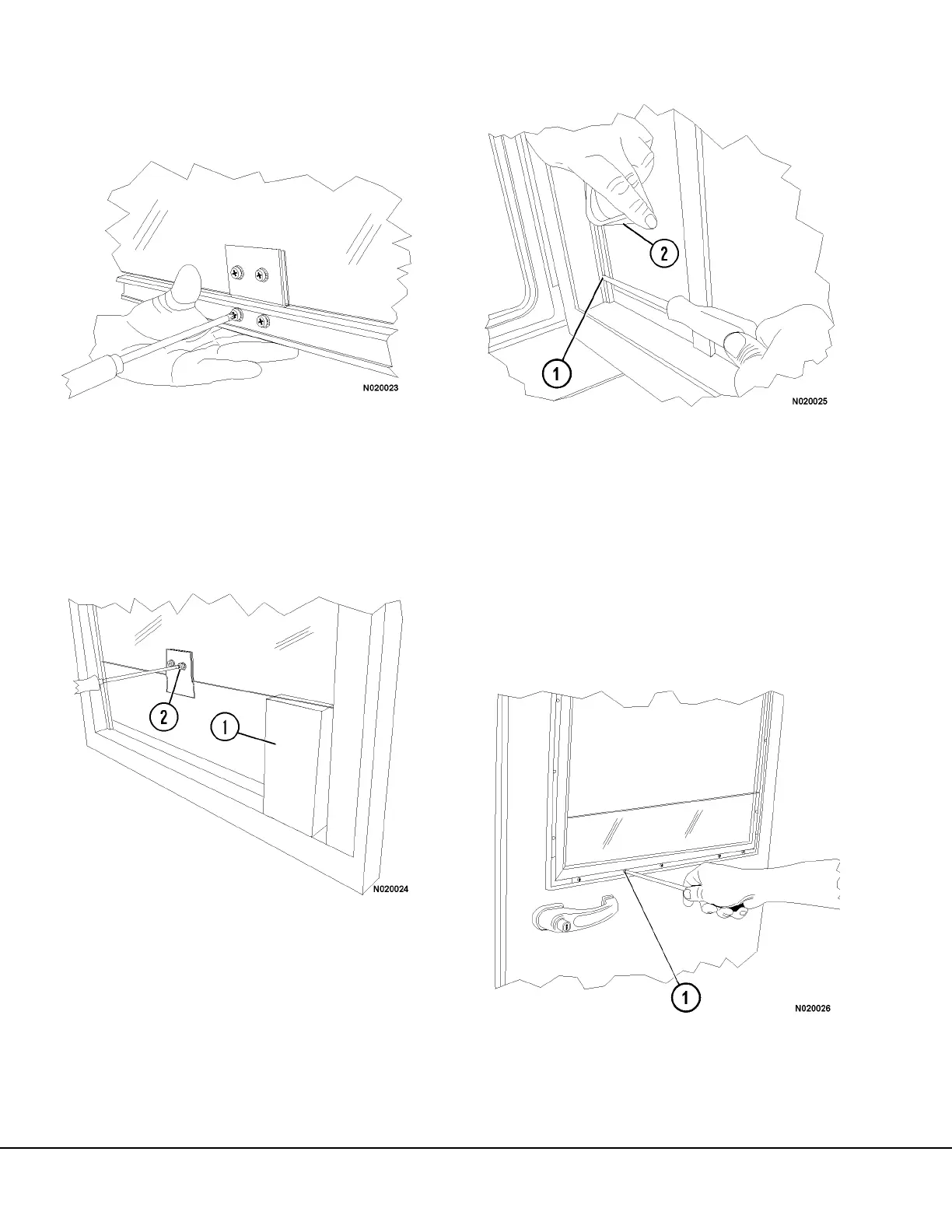

FIGURE 2-8.
FIGURE 2-9.
1. Support Block 2. Screws
FIGURE 2-10.
1. Screws 2. Rubber Felt Insert
FIGURE 2-11.
1. Screws
