OPERATION

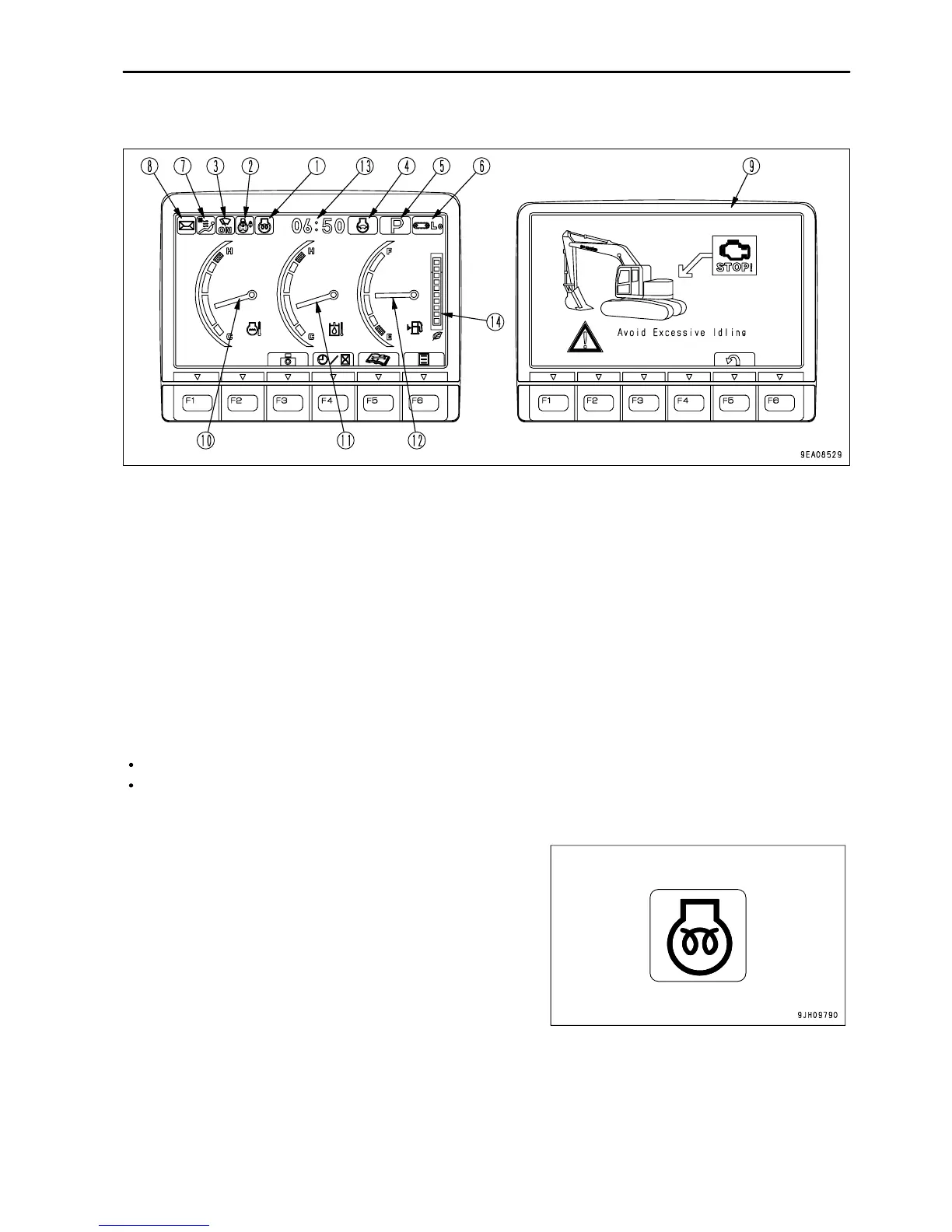

DETAILED CONTROLS AND GAUGES
Meter Display Portion
Pilot display Gauge and Meter
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Engine pre-heating monitor
Swing lock monitor
Wiper monitor
Auto-deceleration monitor
Working mode monitor
Travel speed monitor
Air conditioner monitor
Message monitor
Idle stop guidance
(10)
(11)
(12)
(13)
(14)
Engine coolant temperature gauge
Hydraulic oil temperature gauge
Fuel gauge
Service meter, clock
ECO gauge
Pilot Display
The pilot display at the top of the screen consists of the pilot lamps to confirm the actuation of each function.
When the starting switch is turned ON, the pilot lamp lights up when the display items are functioning.
Engine Pre-heating Monitor
This monitor (1) is displayed when preheating the engine before
starting the engine in temperatures below 0°C (32°F).
In cold weather, when the starting switch is turned to the HEAT
position, the preheating monitor lights up. After lighting up for
approx. 30 seconds, it starts to flash to inform the operator that the
preheating has been completed. After flashing for approx. 10
seconds, the monitor goes out.
