Kongsberg cNODE Maxi User Manual

36
322217/G
Installingadifferentialinclinometer
Thetranspondermusthaveaninclinometer(I)endcaptobeabletoconnecttheexternal
inclinometersensor.
Prerequisites
Turnonthetransponderbeforeinstallation.
Thetranspondermusthaveaninclinometer(I)endcap
tobeabletoconnecttheexternalinclinometersensor.
Procedure

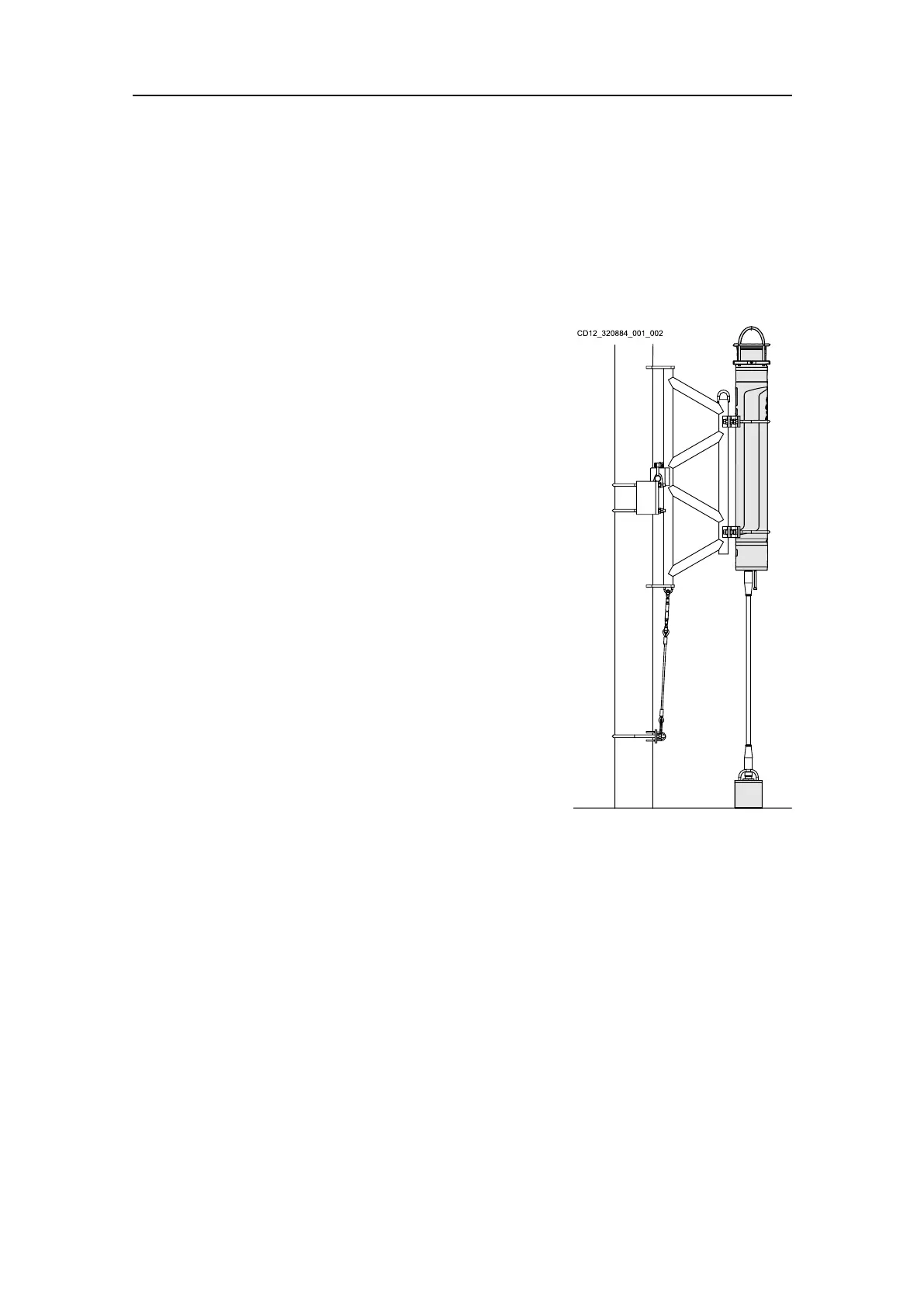

1Placethetransponderandtransponderrackonthe
oor.
2Mountthetransponderinthetransponderrackby
fasteningtheclampsaroundthetransponder.
3Securetheclampswithscrewsandtightenthem
properly.
4Connecttheinterfacecabletothetransponderand
theotherendtotheexternalinclinometer.
Alwaysapplygreasebeforematingconnectors.
SubConn
®
connectorsshouldnotbeexposedto
extendedperiodsofheatordirectsunlight.Ifa
connectorbecomesverydry,itshouldbesoaked
infreshwaterbeforeuse.
5Makesurebothunitsfacethesamedirection.
FWDismouldedintothecoatingofthesensor
moduleonthetransponderanditisengravedintothetopendcapofthesensorunit.
6Mountthearrangementtothecustomer’sstructure.
7AdjusttheoffsetvaluesinAPOStomakesuretheanglesarecorrect.
Installingaseacurrentmeter
Thetranspondermusthaveansensorinterface(Si)endcaptobeabletoconnectthe
externalsensor.
Prerequisites
Turnonthetransponderbeforeinstallation.
Thetranspondermusthaveansensorinterface(Si)endcaptobeabletoconnectthe
externalsensor.
KongsbergcNODEInstructionManual
