CP3002 CP3002-HDD
ID 1042-9252, Rev. 2.0 Page A - 11
P R E L I M I N A R Y
A.6.4 CFast Card Connector
To enable flexible flash expansion, a CFast card connector, J6, is available on the CP3002-
HDD.

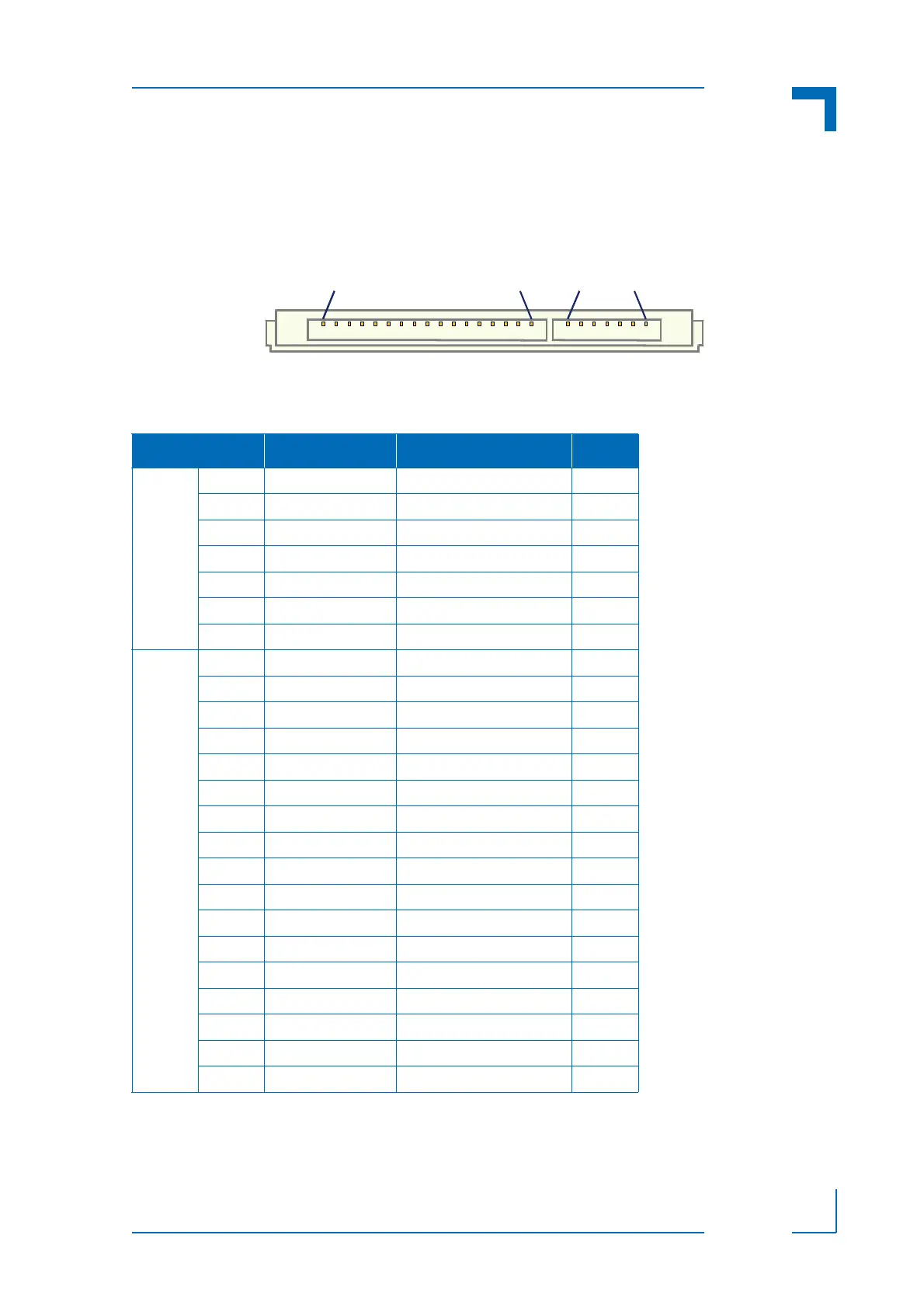

Figure A-8: CFast Connector J6
The following table provides the pinout for the CFast connector J6.
Table A-5: CFast Connector J6 Pinout
PIN SIGNAL FUNCTION I/O
Signal Segment
S1 GND Ground signal --
S2 SATA_TX+ Differential Transmit+ O
S3 SATA_TX- Differential Transmit- O
S4 GND Ground signal --
S5 SATA_RX- Differential Receive- I
S6 SATA_RX+ Differential Receive+ I
S7 GND Ground signal --
Power Segment
PC1 RSV Reserved --
PC2 GND Ground signal --
PC3 NC Not connected --
PC4 NC Not connected --
PC5 NC Not connected --
PC6 NC Not connected --
PC7 GND Ground signal --
PC8 RSV Reserved --
PC9 RSV Reserved --
PC10 NC Not connected --
PC11 NC Not connected --
PC12 NC Not connected --
PC13 3.3V 3.3V power --
PC14 3.3V 3.3V power --
PC15 GND Ground signal --
PC16 GND Ground signal --
PC17 RSV Reserved --
