CP3002 CP-RIO3-04 Rear I/O
ID 1042-9252, Rev. 2.0 Page B - 11
P R E L I M I N A R Y
B.5.5 Peripheral Control Interface
A power supply with power management can be connected to the CP-RIO3-04 via the
peripheral control connector J13.
The following figure and table provide pinout information for connector J13.

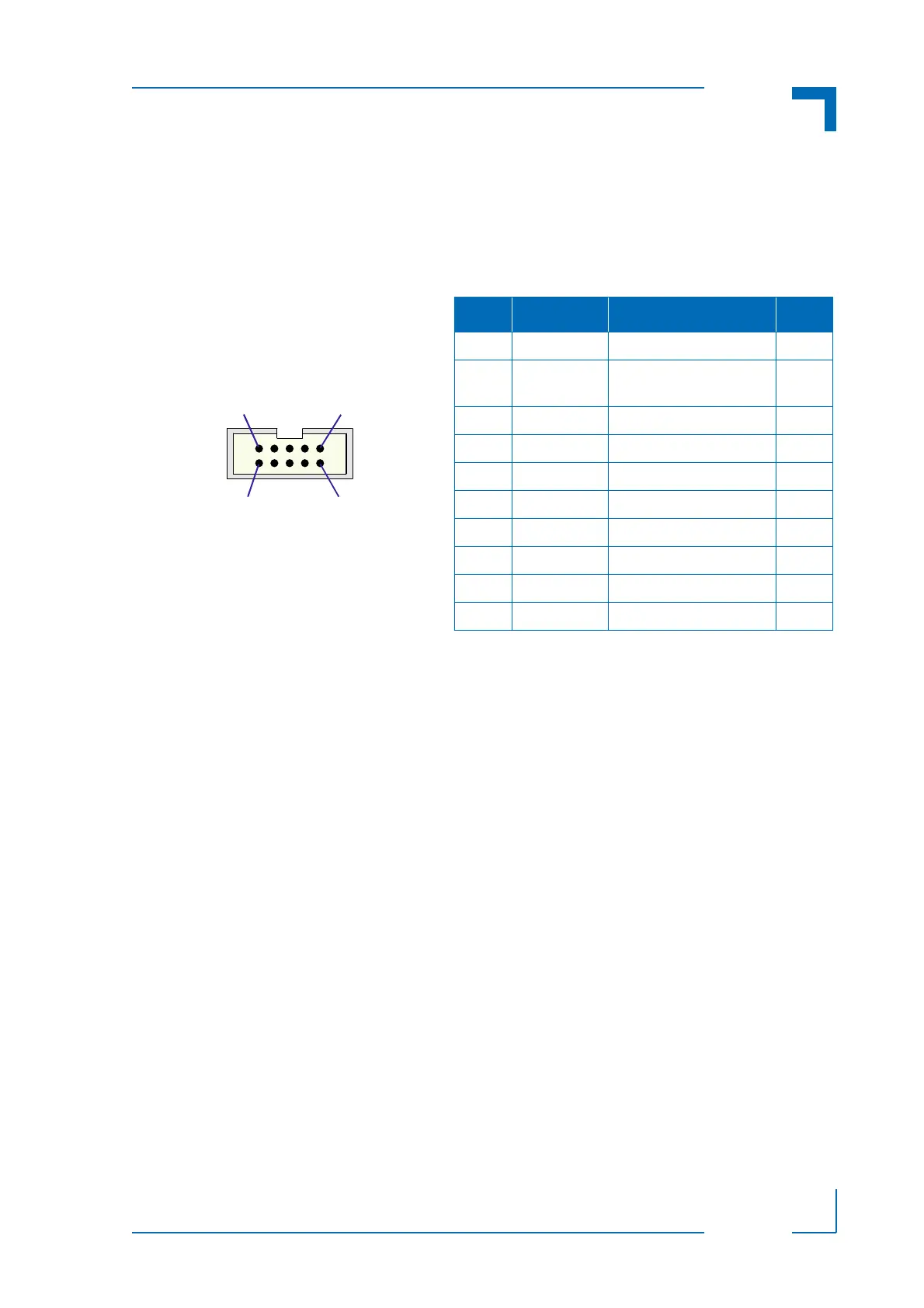

Figure B-9: Peripheral Con. J13
Table B-7: Peripheral Connector J13 Pinout
PIN SIGNAL DESCRIPTION I/O
1 GND Signal ground --
2 PWR_5VSTDBY +5V standby power
(optional)
I
3 RSV Reserved --
4 VCC5V Power +5V O
5 RSV Reserved --
6 VCC3V3 Power +3.3V O
7 PWR_SLPS3# Power supply sleep mode O
8 GND Signal ground --
9 PWR_BTN# Wake-up / sleep input I
10 GND Signal ground --
