CP3002 Introduction
ID 1042-9252, Rev. 2.0 Page 1 - 7
P R E L I M I N A R Y
1.4.2 Front Panel

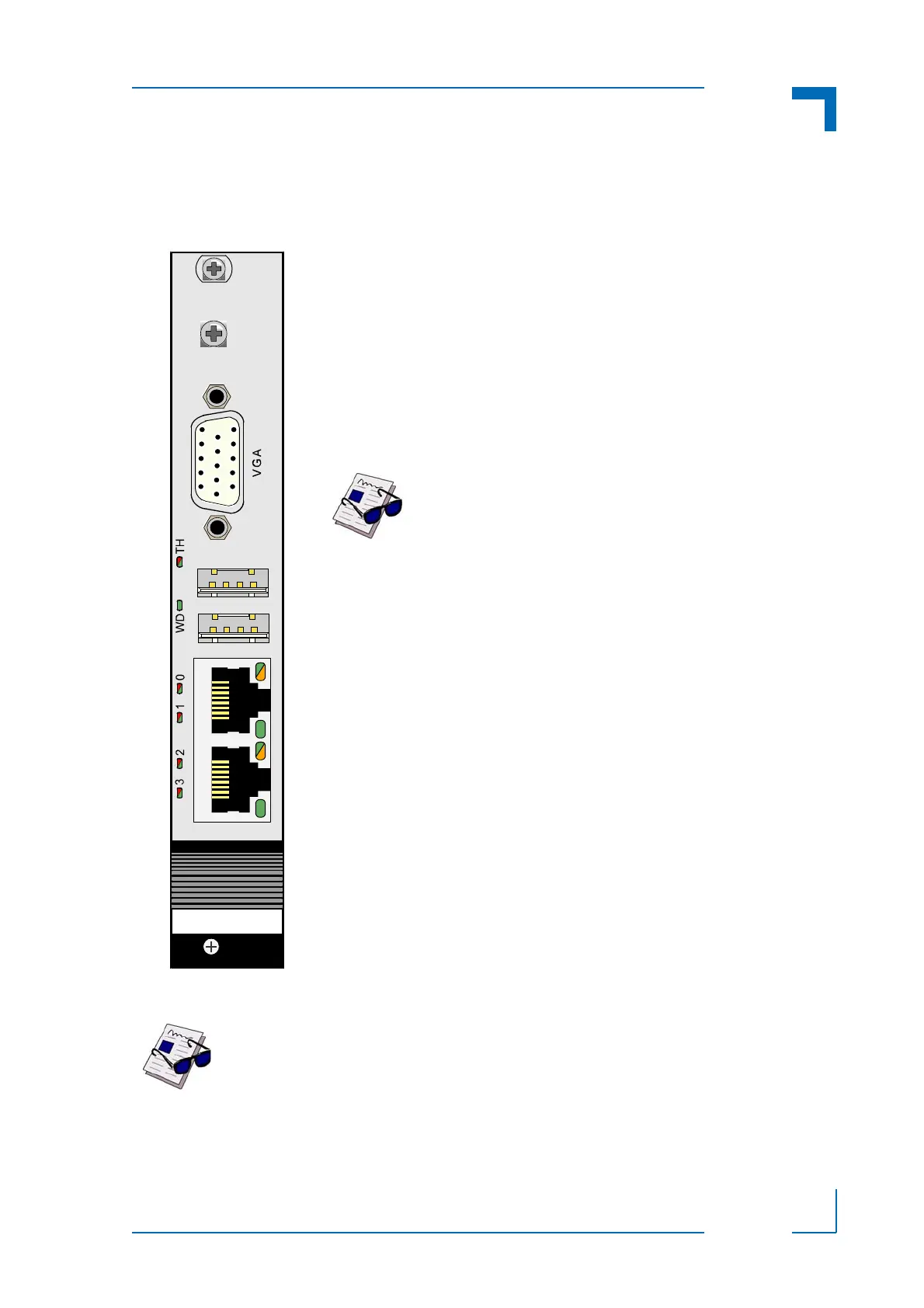

Figure 1-2: 4HP CP3002 Front Panel
Note ...
For information regarding the front panel of the 8HP CP3002, refer to Appendix
A, CP3002-HDD Module.
USB 2.0
CP3002
GbE A
GbE B
LEGEND:
Watchdog and Overtemperature Status LEDs:
WD (green): Watchdog Status
TH (red/green): Overtemperature Status
General Purpose LEDs:
LED0..3 (red/green/red+green): General Purpose/POST Code
Ethernet LEDs:
ACT (green): Ethernet Link/Activity
SPEED (green/orange): Ethernet Speed
Note ...
If the General Purpose LEDs 0..3 are lit red dur-
ing boot-up, a failure is indicated before the uEFI
BIOS has started.
For further information, please contact Kontron.
