CP3002 Functional Description
ID 1042-9252, Rev. 2.0 Page 2 - 15
P R E L I M I N A R Y
2.11.7 Serial ATA Interfaces
The CP3002 provides six SATA I (1.5 Gbit/sec) and SATA II (3.0 Gbit/sec) compliant interfaces
with RAID support (0/1/5/10), one for the SATA Flash module, one for the onboard SATA con-
nector J3, two for the 8 HP extension module and two for rear I/O. For further information on the
SATA Flash Module, refer to Appendix C.
2.11.7.1 Serial ATA Connector J3
The CP3002 is equipped with one standard SATA connector, J3, which is used to connect a
standard HDD/SSD or another SATA device to the CP3002.
Note ...
If the onboard SATA connector will be used, due to the big SATA connector and
the stiff SATA cable, the CP3002 will exceed the thickness of 4HP.
Note ...
To ensure secure connectivity, the SATA connector supports the use of SATA II
cables (SATA cables with locking latch).

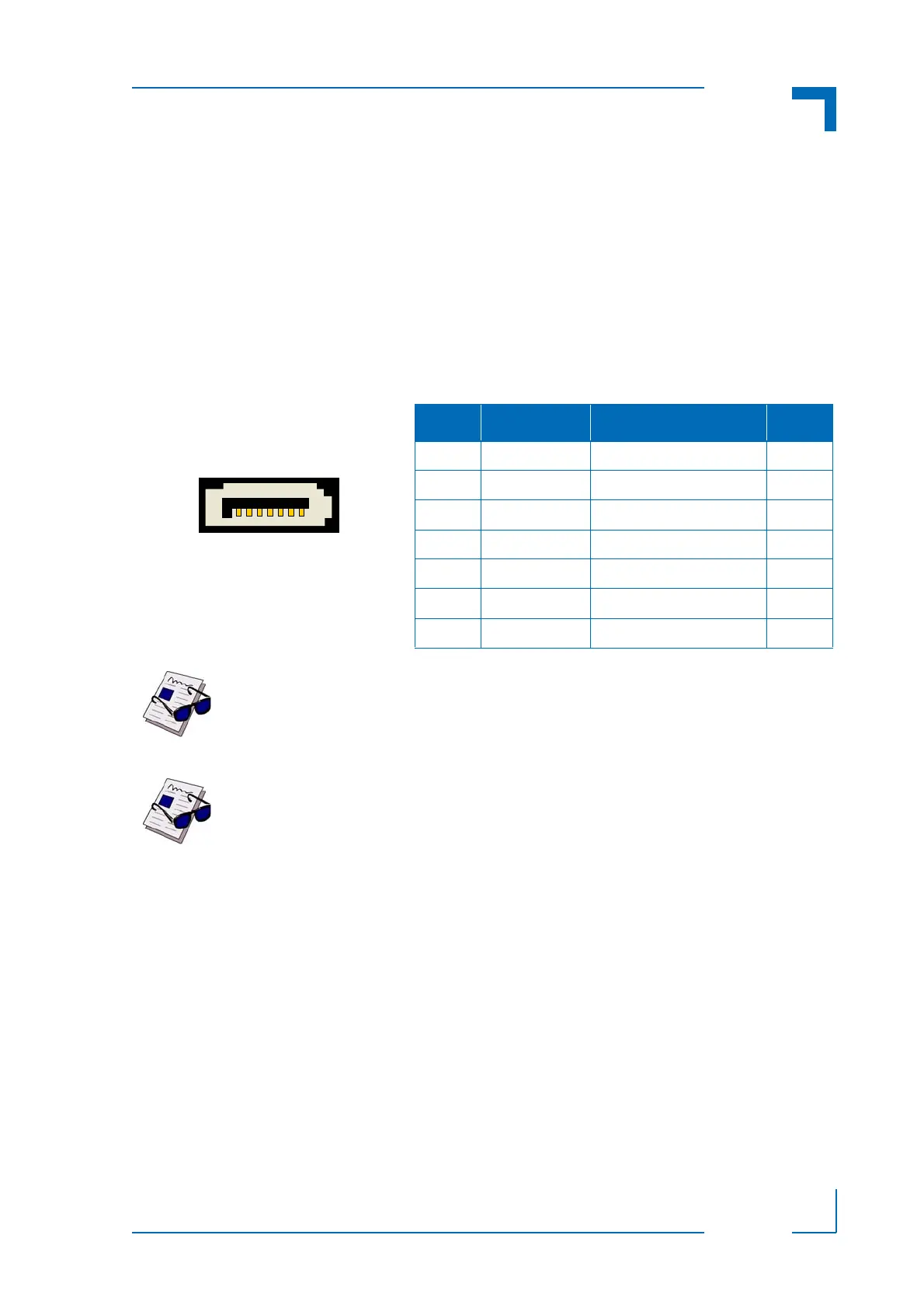

Figure 2-4: SATA Con. J3
71
Table 2-11: SATA Connector J3 Pinout
PIN SIGNAL FUNCTION I/O
1 GND Ground signal --
2 SATA_TX+ Differential Transmit + O
3 SATA_TX- Differential Transmit - O
4 GND Ground signal --
5 SATA_RX- Differential Receive - I
6 SATA_RX+ Differential Receive + I
7 GND Ground signal --
