CP3002 CP-RIO3-04 Rear I/O
ID 1042-9252, Rev. 2.0 Page B - 13
P R E L I M I N A R Y
B.5.7 Rear I/O Interface on CompactPCI Connector rJ2
The CP-RIO3-04 rear I/O module conducts a wide range of I/O signals through the rear I/O con-
nector rJ2.

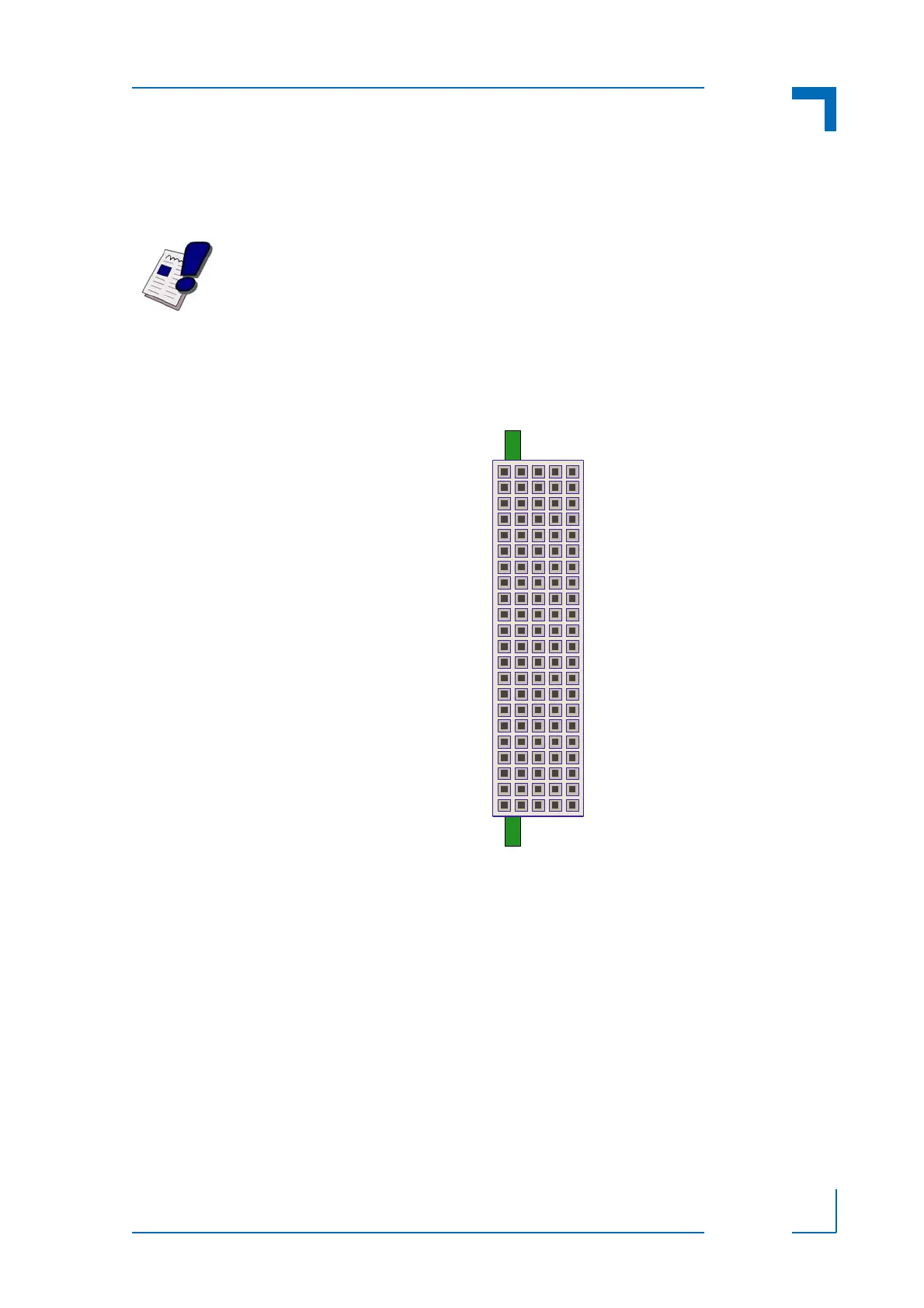

Figure B-11: Rear I/O CompactPCI Connector rJ2
Warning!
To support the rear I/O feature, a 3U CompactPCI backplane with rear I/O sup-
port is required. Do not plug a rear I/O configured board in a backplane without
rear I/O support. Failure to comply with the above will result in damage to your
board.
Note:
Pinrow F: GND
Pinrow Z: NC
22
1
ABCDE
Z F
rJ2
