5
Introduction

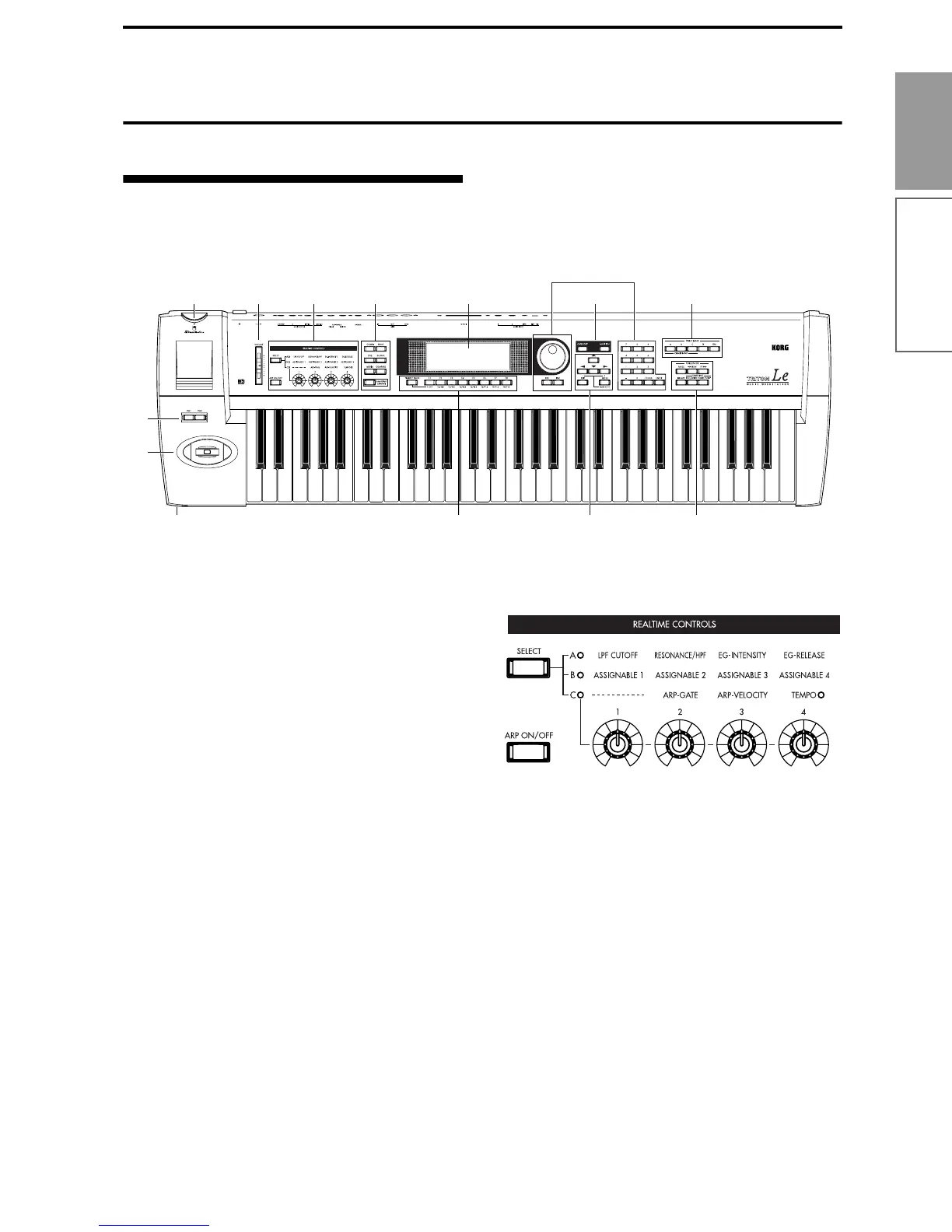

Front and rear panel
Front and rear panel
Front panel
1. SmartMedia slot
SmartMedia cards can be inserted here, allowing you
to save or load data or song data or other types of data
you edited.
For details on handling SmartMedia, refer to “Caution
when handling SmartMedia” (
☞p.96).
2. [SW1] key, [SW2] key
These keys are on/off switches for the functions to
which they were assigned in Program, Combination,
Sequencer and Sampling modes (if the EXB-SMPL
option is installed). When on, the key will light
(
☞p.23).
3. Joystick
This controls pitch or modulation, etc.
Move the joystick up/down or left/right (+Y, –Y,
–X, +X) to control (
☞p.23).
Various program parameters and effect parameters
will determine what is controlled by the joystick.
4. Headphone jack
A set of headphones with (1/4") stereo phono plug can
be connected here.
The output from the L/MONO and R OUTPUT jacks
can be monitored in stereo through the headphones.
5. [VOLUME] slider
This adjusts the volume that is output from the OUT-
PUT jacks (L/MONO, R) and the headphone jack.
6. REALTIME CONTROLS
Use the [SELECT] key to select realtime controller
mode A/B/C, and use knobs [1]–[4] to control the
tone, effects, MIDI control changes, and arpeggiator
etc. while you perform. (
☞p.24, 26)
[SELECT] key
This key switches the realtime controller between A-
mode, B-mode, and C-mode. The LED of the selected
mode will light.
[ARP ON/OFF] key
This key turns the arpeggiator on/off. When on, the
key will light.
[1], [2], [3], [4] knob
A-mode
[1] LPF CUTOFF:
Controls the cutoff frequency of the low pass filter.
[2] RESONANCE/HPF:
Controls the filter resonance level or the high pass filter
cutoff frequency.
2
1
4
5
8
10
11
14
13
3
6
79
12
