TECHNICAL DESCRIPTION

H215 AE Rev.: 10 kortho Hot Quick Coder-D

2-3

1. Preheatunitwithhotroll

2. Warningsign

3. Printhead

4. Textholder

5. Heatingringwithhotroll

6. Airsupply(tocontrolbox)

7. Powersupply(tocontrolbox)

8. Warningsign

9. Mountingblock

10. Locationserialnumberlabel



2.3 Coding unit



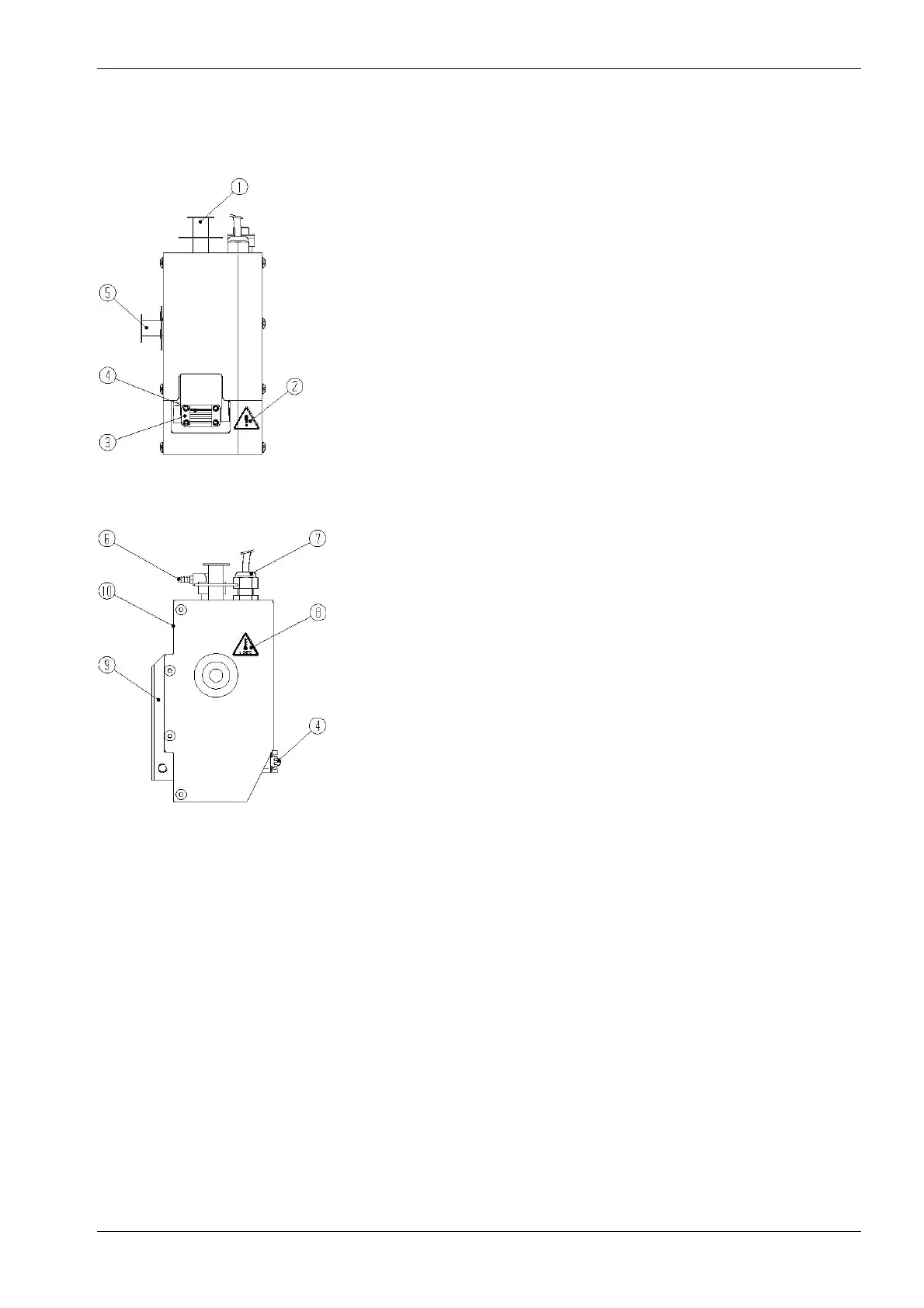

Fig. 2.3 CodingunitHQC‐Dfrontview.



Fig. 2.4 CodingunitHQC‐Dleftview.
