TECHNICAL DESCRIPTION
kortho Hot Quick Coder-D H215 AE Rev.: 10
2-2
2.2 Control box
0
2
46
8
10
BAR
100x kPa
RUN 135…C
psi
1
5
3
7
2
6
4
17
16
15
14
13
12
9
11
10
8

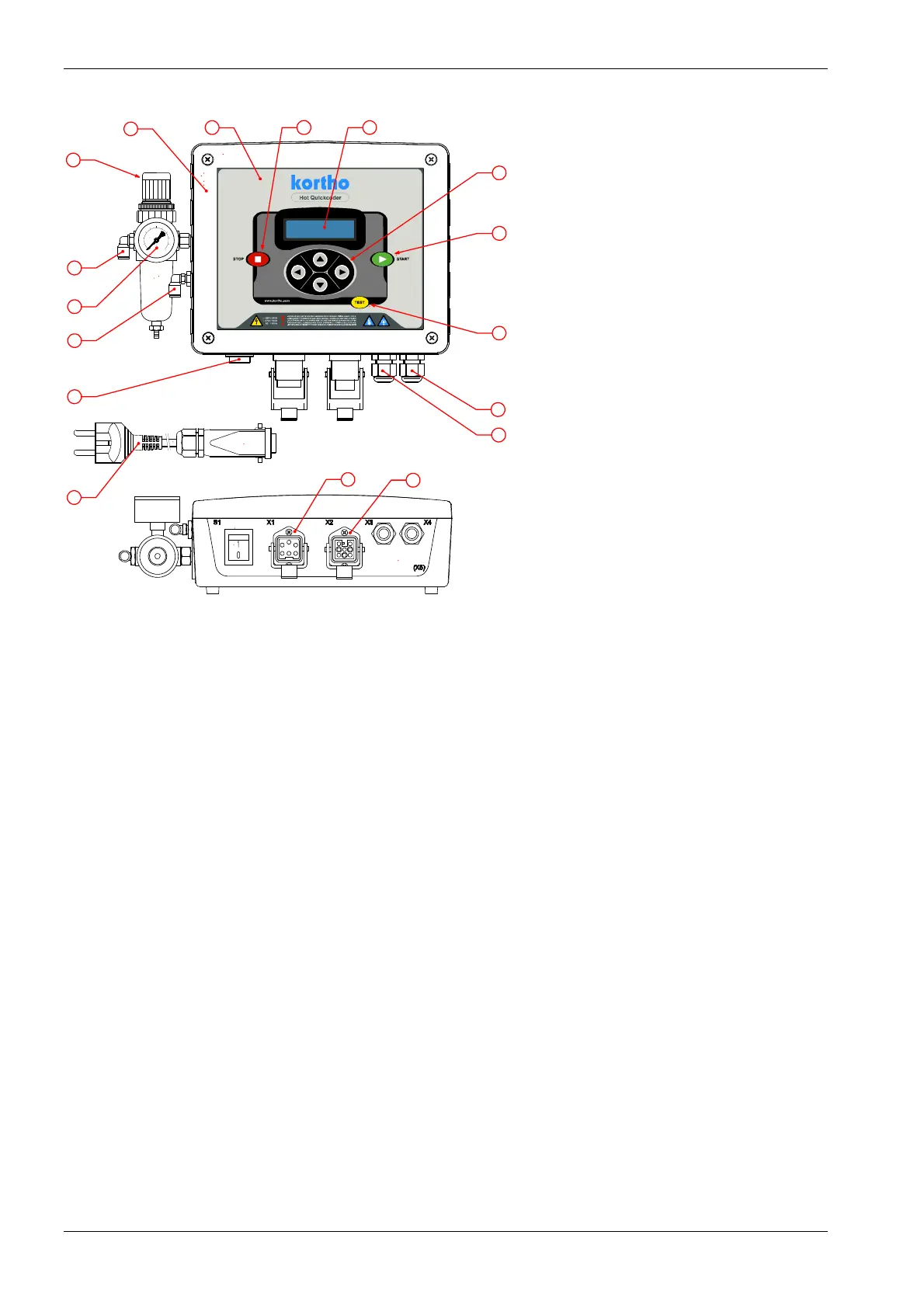

Fig. 2.2 Controlbox.
1. ControlboxHotQuickCoderD
2. Controlpanel
3. Stopkey
4. LCDdisplay
5. Cursorkeypad(up,down,left,right)
6. Startkey
7. Testkey
8. X4Cablegland
9. X3Cablegland
10. X2Printerconnection
11. X1Supplyconnection
12. Supplycable+Europlug
13. Powerswitch
14. Printerfitting
15. Manometerprintpressure
16. Supplypressurefitting
17. Printpressureadjustment
