6 Installation
6.1 Spatial specifications
Space required for installation and maintenance of the DC Wallbox
The DC wallbox requires a minimum space of 900 x 1100mm, which is as follows:
Size of the charging station W x D x H: 500 x 230 x 650 mm.
Additional 300mm each on the left and right to ensure working at the charging station without obstacles.
The wall charging station should be mounted on the wall at least 600mm above the floor to avoid obstacles
when connecting.
6.2 Ventilation of the DC wall charging station
The DC wallbox has an air inlet (bottom side) and an air outlet (right side).
ATTENTION
Keep the air inlets and outlets clean. Make sure that
they are free of snow and leaves or other materials.

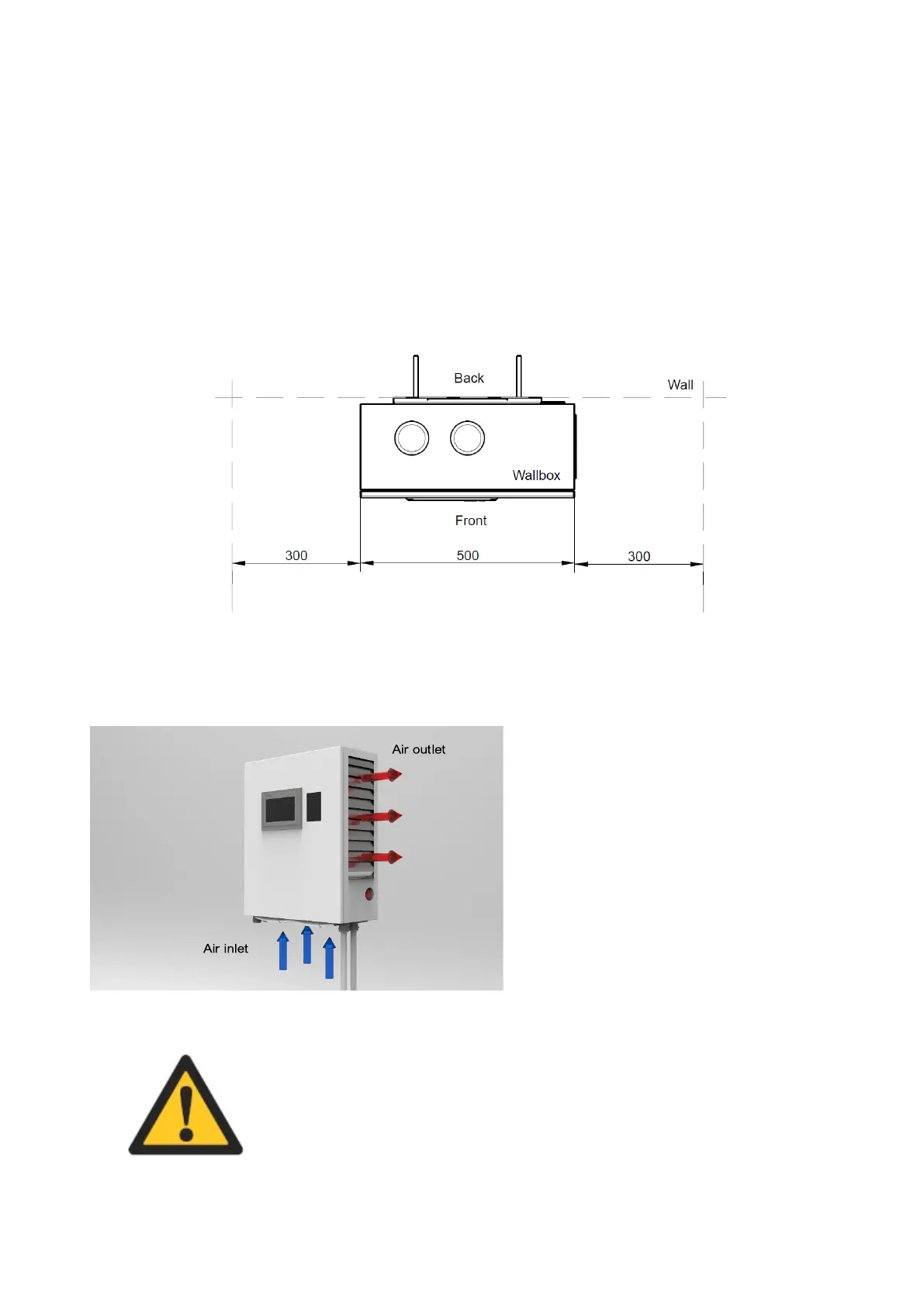

Fig 3: Kostad DC wall box space requirement
Fig 4: Kostad DC wallbox ventilation
