6.4.7 Installing the cable gland
The maximum diameter of the mains cable is 21mm.
1. Slide the cable gland
over the cable.
2. Push the cables back through the flange
plate until there is enough cable length to
reach the cable clamps.
3. Tighten the ring of the cable gland by
turning it.
6.5 Locking system
The front door can be locked with a separately available half-cylinder lock. In the event that no on-site lock
or locking system has been ordered, the DC Wallbox is not delivered lockable.
On request, the charging station can be equipped with a customized locking cylinder and delivered. It is
possible to install a locking cylinder system, which must also be provided by the customer. This enables the
operator to apply the general key principle for several charging stations and/or to manage the locking
authorizations of his service staff.
ATTENTION
It is mandatory to secure the charging station against unauthorized interference.
Use a half cylinder lock with an external length of 40mm

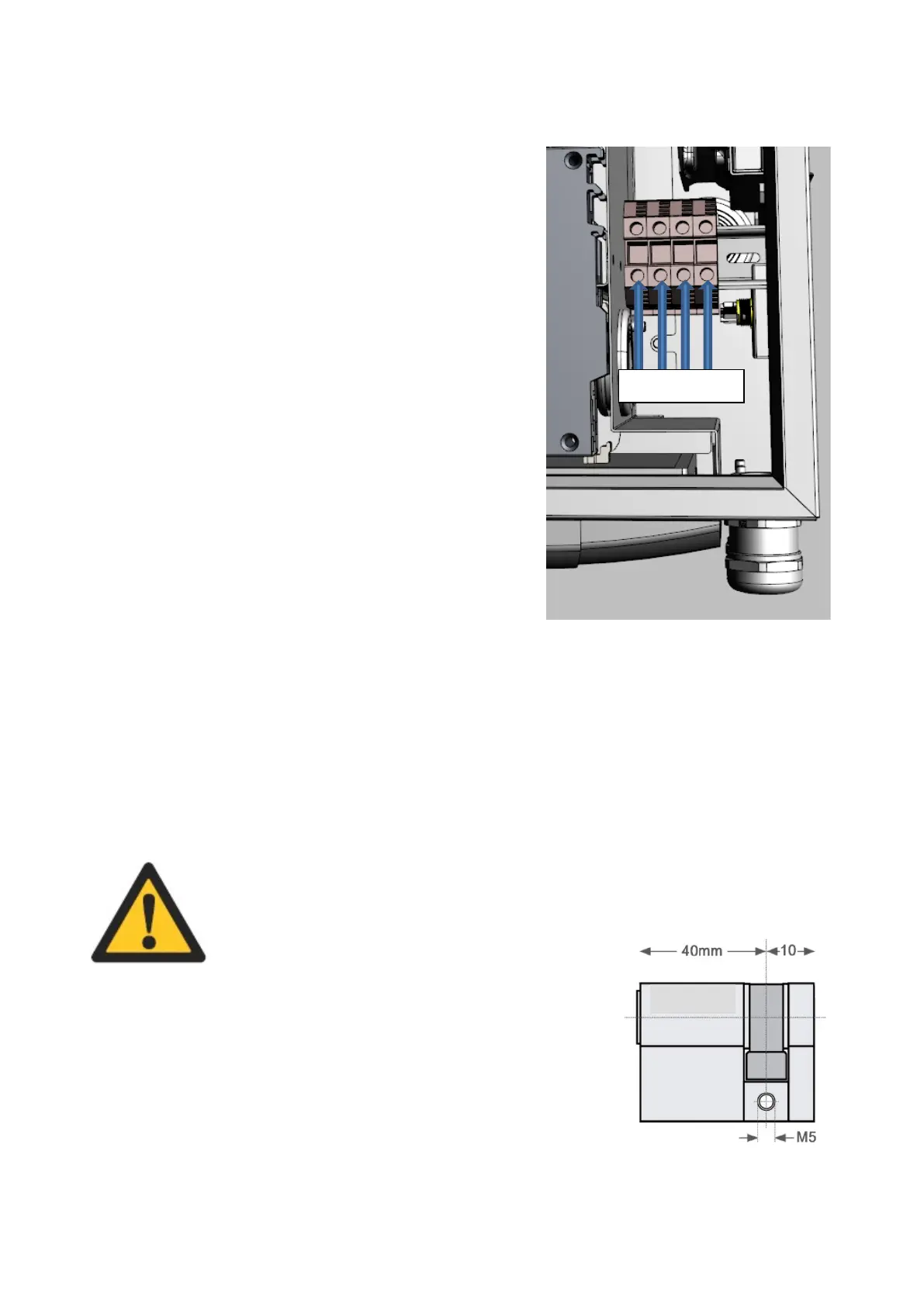

Fig 9: Cable gland mains connection
