5 Product description
5.1 Overview of the system

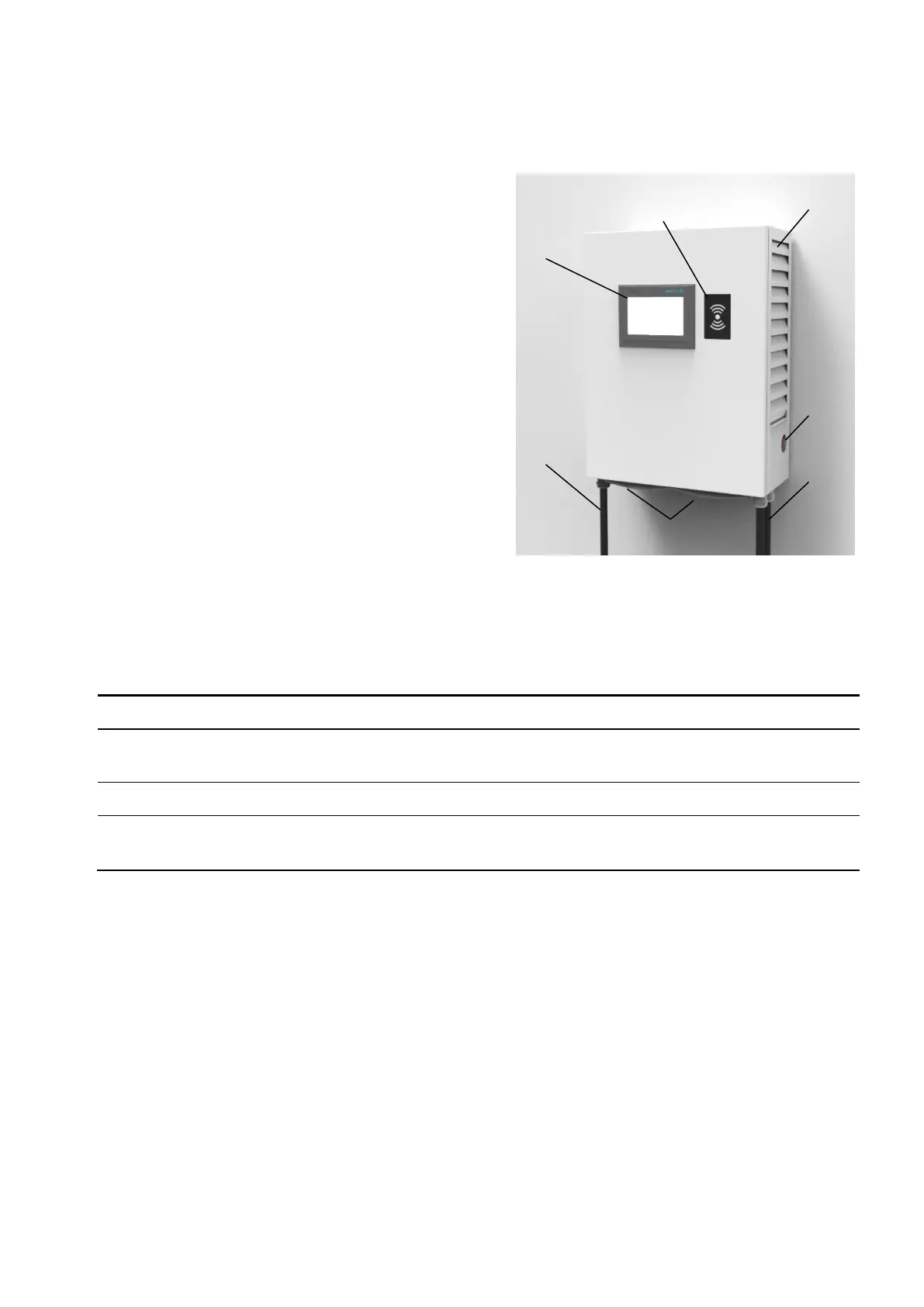

The components relevant for use are shown in Figure 1:
A. Display / HMI
B. RFID card reader
C. Air outlet
D. Emergency stop
E. Mains-side supply cable (AC)
F. Air inlet
G. Charging outputs DC
5.2 Hardware configurations
The Kostad DC Wallbox supports the following DC charging standards:
Abbreviati
on
Description
CJ One CCS and one CHAdeMO output up to 80 A / 22 kW; No simultaneous charging possible
C One CCS output with output current/power; 80 A / 22 kW
J One CHAdeMO output with output current/power; 80 A / 22 kW
A
B
C
D
E
F
G
Fig 1:
View Kostad DC Wallbox
