8.2 Filter exchange

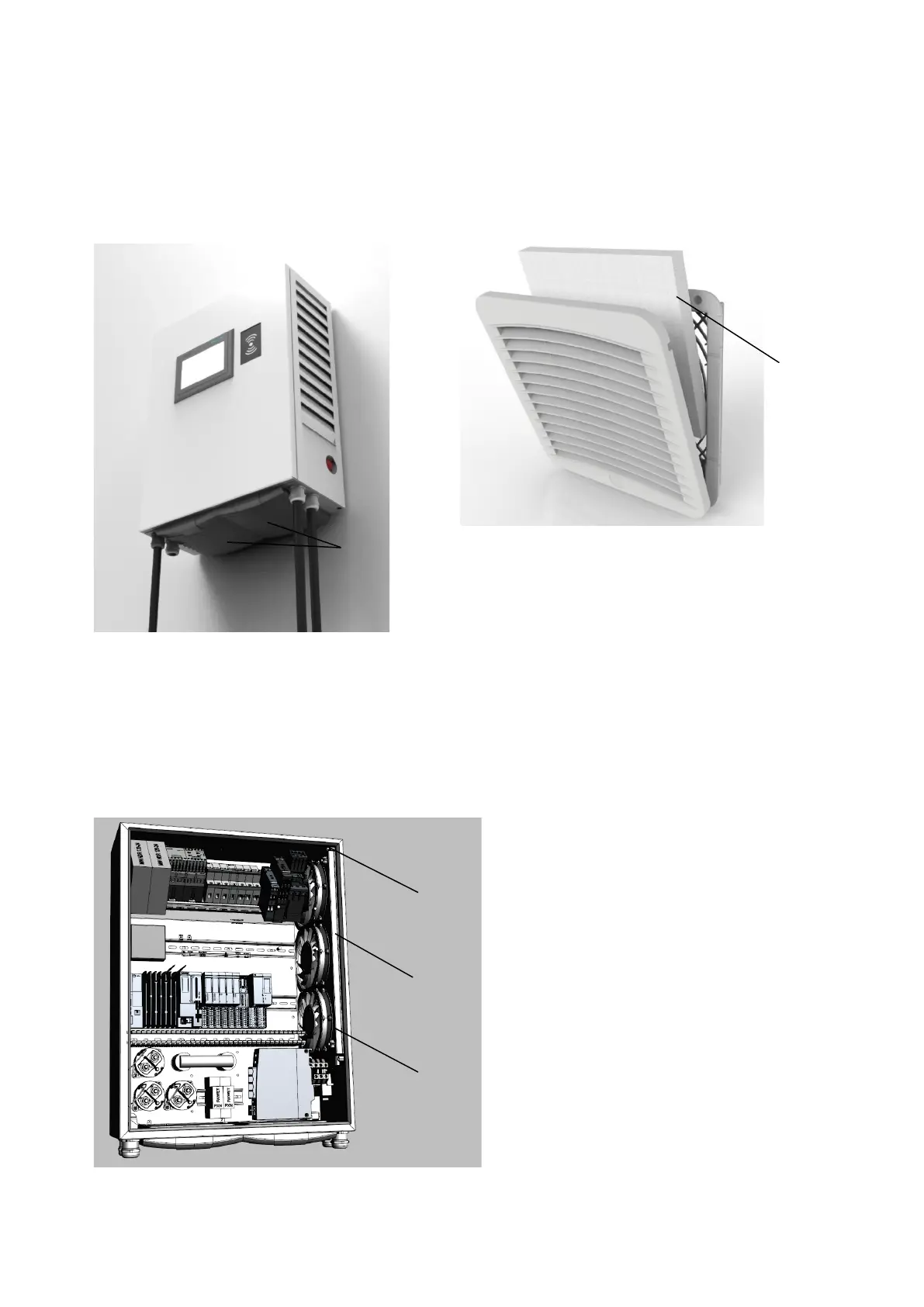

8.2.1 Inlet filter
Using a slotted screwdriver, open the cover of the inlet filter, which is located on the underside of the DC
wallbox.
A. Inlet filter
B. Filter mat
8.2.2 Exit filter
Open the door of the DC Wallbox. After opening, the filter cassette is located in the outer right area (see
illustration). Open it using the two quick-release screws. Then pull the cassette out of the lock, change the
filter, reinsert it and close the quick-release screws again.
A
B
C
D
C
C.
Quick release screws
D. Filter cassette
Fig 50: Exit filter
Fig 51: Interior view
