Operating Instructions 10/2020 2010045v10
Use zero-based addressing
If the remote station uses zero-based addressing ("address offset"), (register shifted by 1), then this can be
activated here. This value may only be set when the connection is deactivated.
Start holder register setpoints (partner -> charging station)
The holding registers for setpoints and actual data must not overlap. This value may only be set when the
connection is deactivated.
Allowed values: 0-9873 (9998 - 125)
Start holder register actual data (charging station -> partner)
The holding registers for setpoints and actual data must not overlap. This value may only be set when the
connection is deactivated.
Allowed values: 0-9873 (9998 - 125)
Data mirroring (only for commissioning purposes)
To facilitate commissioning, it can be set here that the setpoint holding registers are copied to the actual
data registers. The data is not copied to the data structures on the charging station. This value may only be
set when the connection is deactivated.
Data structure version
Version number of the data interface. This must always be output to the start holding registers so that the
data can be transferred. The currently set version is also output in the start holding register of the actual
data.
Specifications for the data structure:
• Only whole words are read and written, i.e.
a word must also be defined for a bit.
• The data length of the data structure for
setpoints and actual data must be the
same.
• A maximum of 125 words may be
exchanged.
The following table shows the individual elements of data set #1 (ID1) as a telegram version.

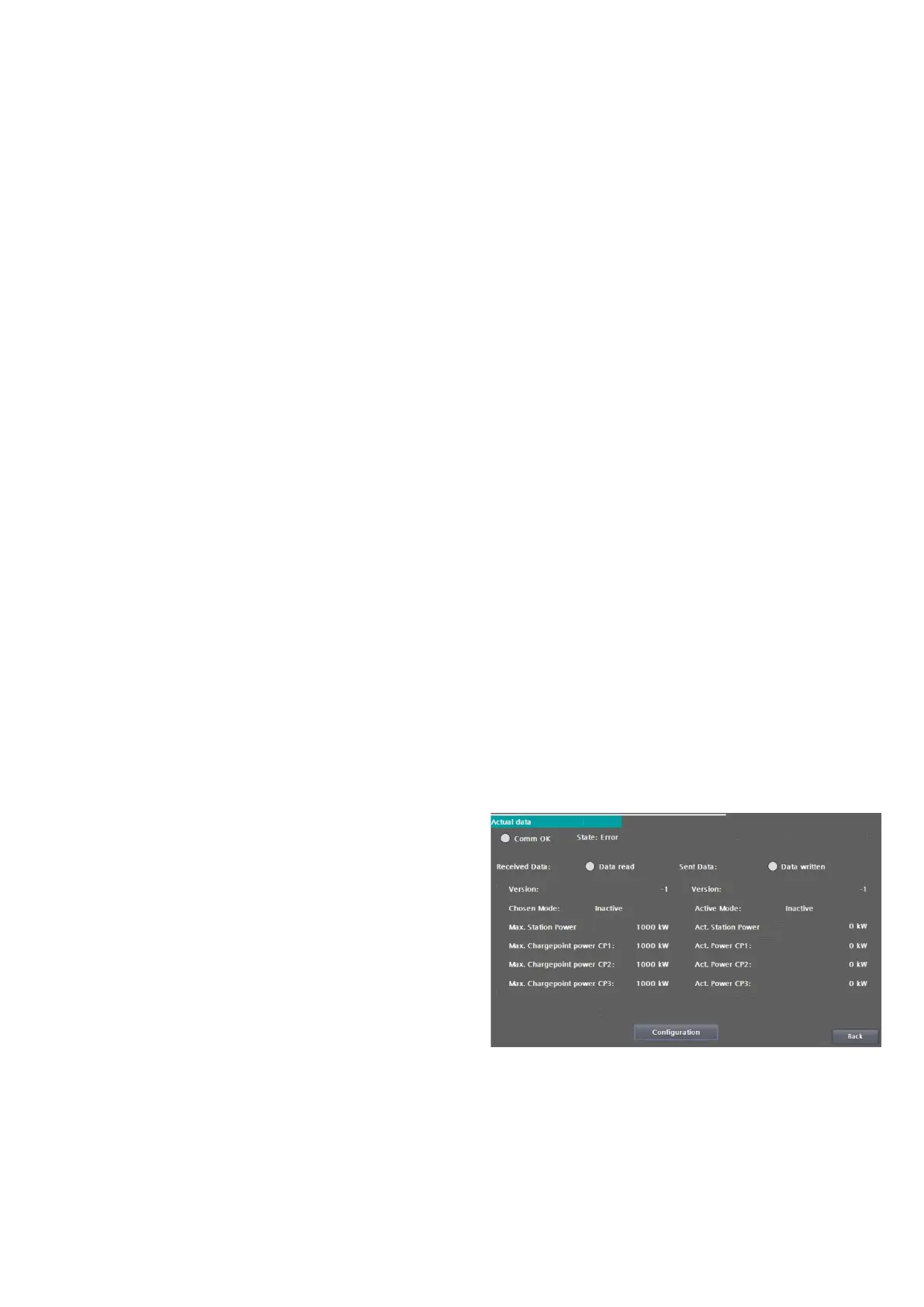

Fig 36: Data structure of external performance
management for actual values
