Operation 3
3.14 Opening/closing the engine cover
Risk of injury. Risk of shearing due to rotating parts!
☞Stop the diesel engine before opening the engine cover
☞Open the engine cover
• Stop the diesel engine and remove the ignition key
• Press lock A
• Pull the engine cover upward
☞Close the engine cover
• Firmly press down the engine cover until lock A engages with an audible click
☞Lock and unlock the engine cover
Lock or unlock the engine cover with the ignition key of the preheating start switch.
3.15 Battery master switch (option)
The battery master switch is located in the engine compartment next to the battery
Interrupting power supply
☞Turn and remove the key of the battery master switch (notched position)
Switching on power supply
☞Insert the key in the battery master switch
☞Turn the key to the notched position
3.16 Location of fire extinguisher (option)
Fire extinguisher operation
The fire extinguisher is not included in the machine’s standard equipment (option).
☞If a fire extinguisher is retrofitted according to DIN-EN 3, then this must be performed
by an authorized service centre
☞It is located on the rear cabin wall, to the left of the operator seat
☞Fire extinguisher operation is described with the symbols on the fire extinguisher
The fire extinguisher must be refilled and sealed by authorized staff after it has
been used.

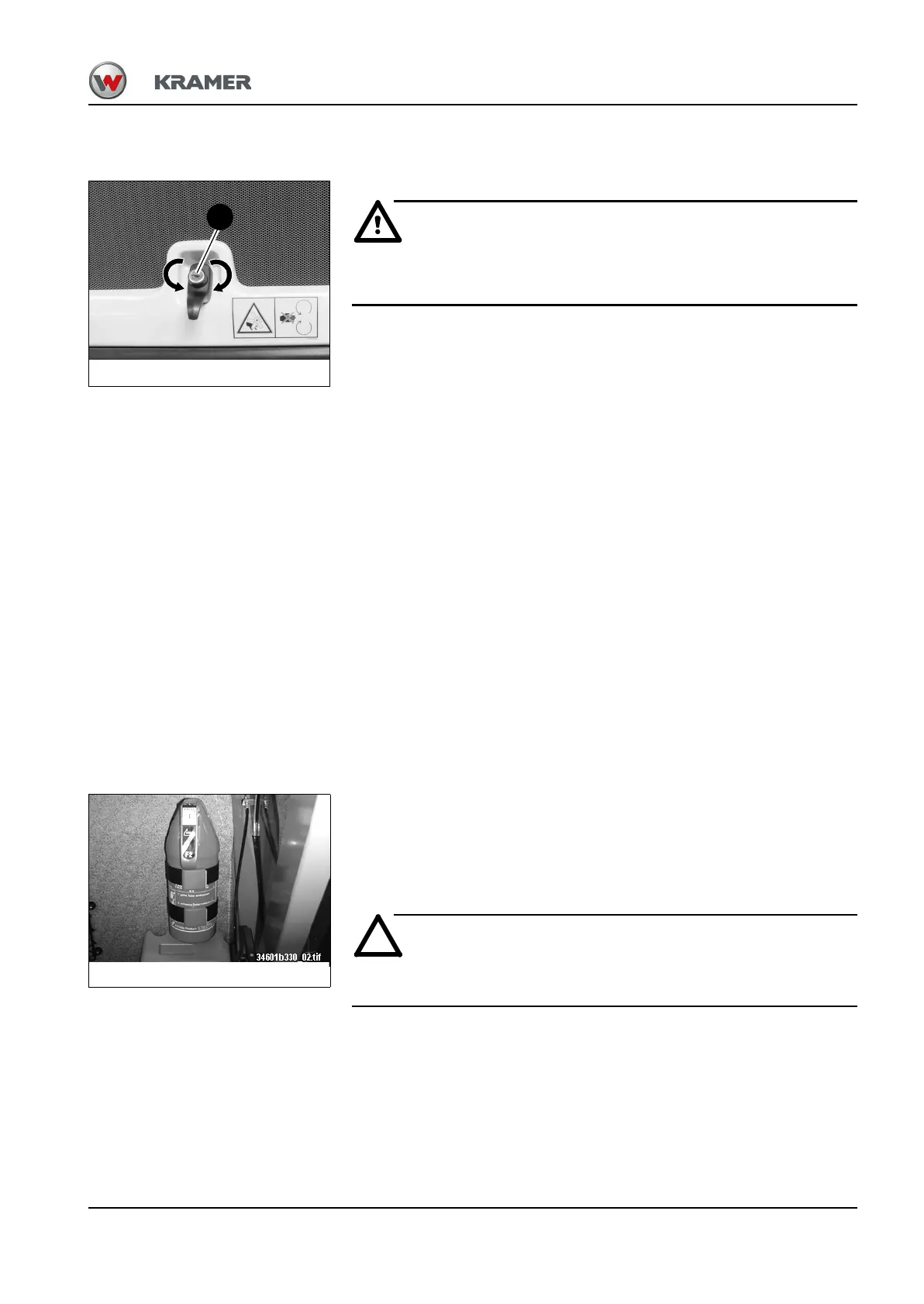

Fig. 55 : Engine cover lock
A
RL
Fig. 56 : Fire extinguisher (option)
