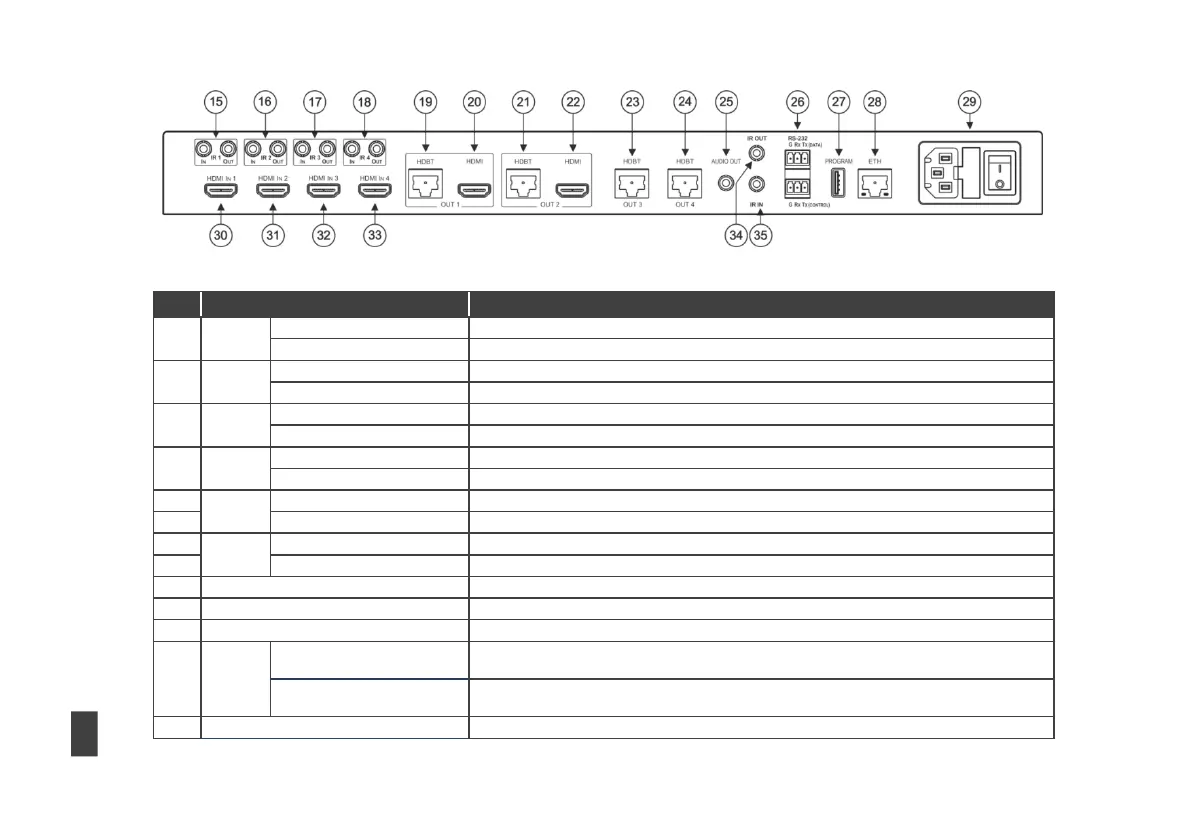

Kramer VS-44DT - Figure 2: VS-44 DT 4 X4 HDMI;HDBT Matrix Switcher Rear Panel

Figure 2: VS-44DT 4x4 HDMI/HDBT Matrix Switcher Rear Panel
#
Feature
Function
15
IR 1
IN 3.5mm Mini Jack
Connect to an IR sensor. Receives IR commands and sends them over HDBT OUT 1
OUT 3.5mm Mini Jack
Connect to the first IR emitter. Transmits IR commands that are sent over HDBT OUT 1
16
IR 2
IN 3.5mm Mini Jack
Connect to an IR sensor. Receives IR commands and sends them over HDBT OUT 2
OUT 3.5mm Mini Jack
Connect to the second IR emitter. Transmits IR commands that are sent over HDBT OUT 2
17
IR 3
IN 3.5mm Mini Jack
Connect to an IR sensor. Receives IR commands and sends them over HDBT OUT 3
OUT 3.5mm Mini Jack
Connect to the third IR emitter. Transmits IR commands that are sent over HDBT OUT 3
18
IR 4
IN 3.5mm Mini Jack
Connect to an IR sensor. Receives IR commands and sends them over HDBT OUT 4
OUT 3.5mm Mini Jack
Connect to the fourth IR emitter. Transmits IR commands that are sent over HDBT OUT 4
19
OUT 1
HDBT RJ-45 Connector
Connect to the first HDBT receiver, (for example, the TP-580RXR)
20
HDMI Connector
Connect to the first HDMI receiver, (for example, an HDMI display)
21
OUT 2
HDBT RJ-45 Connector
Connect to the second HDBT receiver, (for example, the TP-580RXR)
22
HDMI Connector
Connect to the second HDMI receiver, (for example, an HDMI display)
23
HDBT OUT 3 RJ-45 Connector
Connect to the third HDBT receiver, (for example, the TP-580RXR)
24
HDBT OUT 4 RJ-45 Connector
Connect to the fourth HDBT receiver, (for example, the TP-580RXR)
25
AUDIO OUT 3.5mm Mini Jack
Connect to an audio receiver, (for example, active speakers)
26
RS-232
DATA 3-pin Terminal Block
(G,Rx,Tx)
Connect to a serial source/target
CONTROL 3-pin Terminal
Block (G,Rx,Tx)
Connect to a serial controller
27
PROGRAM USB Connector
Connect to a PC to perform firmware upgrades
