Krone ActiveMow R 200 - 3 Machine Description; Machine Overview

Machine Description 3
Machine overview 3.1
ActiveMow R 200
Original Operating Instructions 150000521_04_en 31
3 Machine Description
3.1 Machine overview

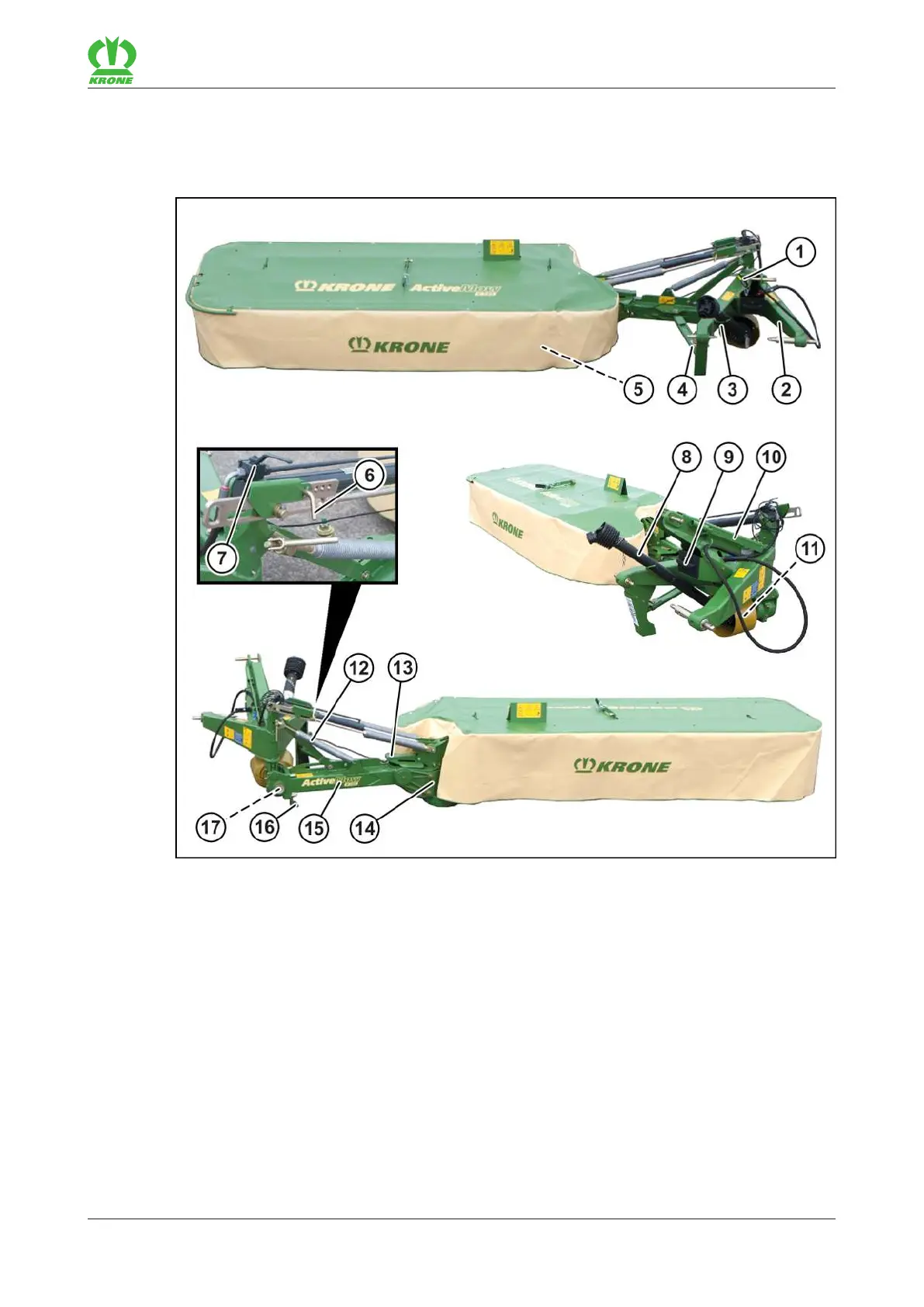

KMG000-072
1 Document storage tube 10 Blade key
2 Three-point hitch 11 Friction clutch
3 Universal shaft bracket 12 Relief spring(s) carrying bar
4 Impact damage protection system 13 Locking
5 Cutterbar 14 Mower gearbox
6 Locking for relief spring(s) 15 Intermediate universal shaft
7 Stop cock 16 Support jack
8 Universally-jointed drive shaft 17 Main gearbox
9 Spare blade drawer
