Maintenance - Cutterbar 14
Check/change blades 14.3
ActiveMow R 200
Original Operating Instructions 150000521_04_en 71
INFORMATION: The blades for anticlockwise rotating and clockwise rotating cutting discs/
mower drums are different. Mind the direction of rotation when mounting the blades. The arrow
on the blade must correspond to the direction of rotation of the respective cutting disc/mower
drum.
Insert the new blade (5) between the wear skid (2) and the cutting disc (1).
Insert the retaining bolt (3) from below through the wear skid (2), the blade (5) and the
cutting disc (1).
INFO: Only use the locknut (4) once.
Screw the locknut(4) from above onto the retaining bolt(3) and tighten it, tightening torque,
refer to page58.
Repeat the process for all blades.
Fold down the front guard.
INFORMATION
Clockwise rotating blades can be ordered by stating order number 00139889*.
Anticlockwise rotating blades can be ordered by stating order number 00139888*.
14.3.3 Changing blades for the “blade quick fastener” version
KM000-045
ü The machine is in the working position, refer to page47.
ü The machine is shut down and safeguarded, refer to page24.
ü The front guard is folded up, refer to page43.
ü The area around the blade, mowing discs and mower drums is cleaned.

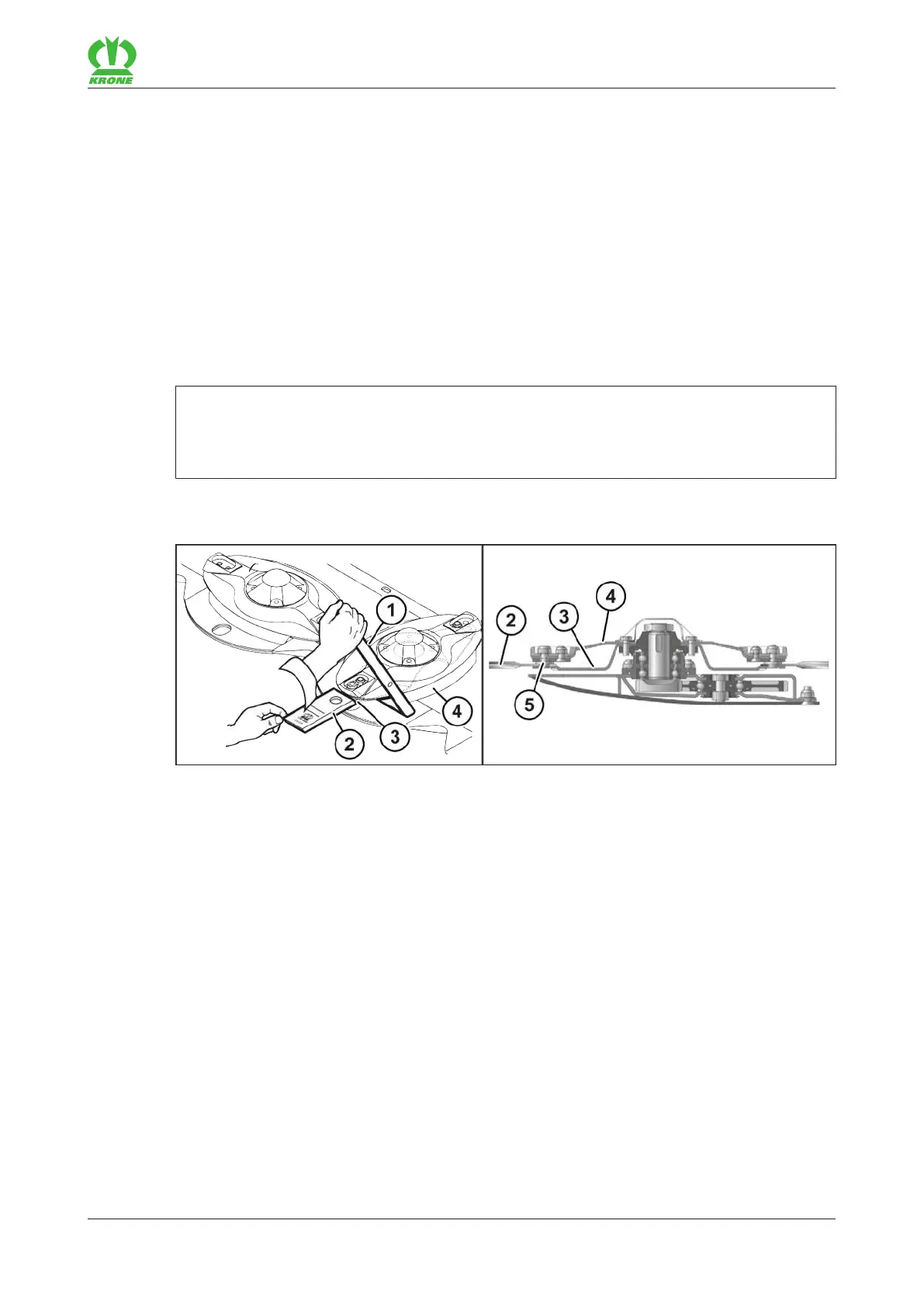

To remove the blade(2), slide the blade key(1) between the mowing disc(4) and the blade
carrier(3) as far as it will go, press it down with one hand and hold it.
Check the fastening parts of the blade(2), refer to page72. Replace worn or damaged
fastening parts immediately.
INFO: The blades of counterclockwise rotating mowing discs/mower drums are different than
those of clockwise rotating ones. When installing the blades, make certain the direction of
rotation is correct. The arrow on the blade must match the direction of rotation of the
corresponding mowing disc/mower drum.
To insert the new blade(2), slide the blade key(1) between the mowing disc(4) and the
blade carrier(3) as far as it will go, press it down with one hand and hold it.
Guide the blade(2) onto the retaining bolt(5) and in a controlled manner release the force
of your hand on the blade key(1).
Repeat the process for all blades
Fold down the front guard.
