Maintenance - Cutterbar 14
Checking/replacing blade carrier 14.5
ActiveMow R 200
Original Operating Instructions 150000521_04_en 73
KM000-089
Remove the blades.
Clean the section to be checked.

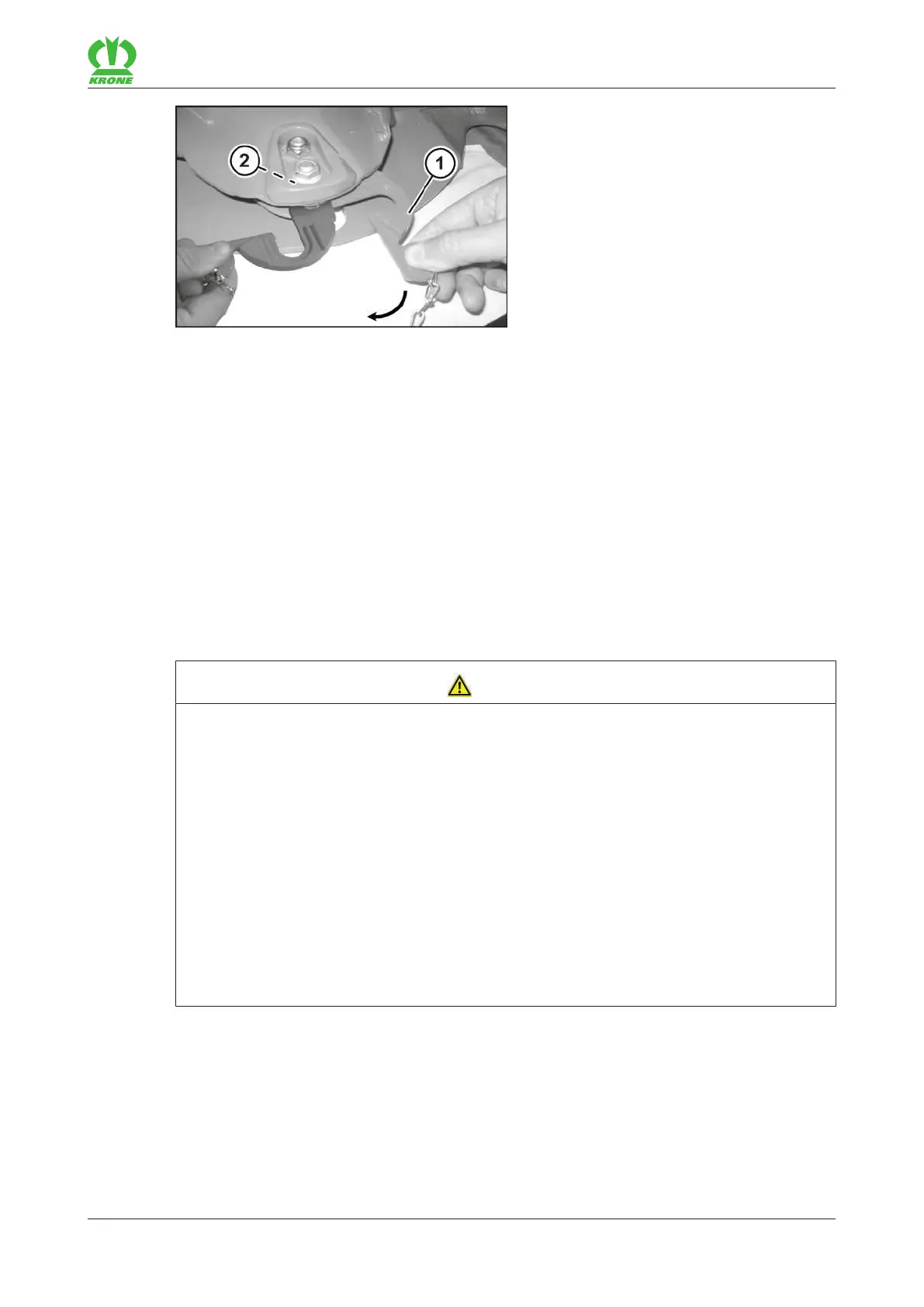

Place the gauge (1) with the section (1.1) against the retaining bolt (2).
Rotate the gauge by 90 degrees.
Æ If it is not possible to slide the gauge (1) over the retaining bolt (2) during the rotation, the
retaining bolt (2) is OK.
Æ If it is possible to slide the gauge (1) over the retaining bolt (2) during the rotation, the
retaining bolt (2) must be replaced immediately.
14.5 Checking/replacing blade carrier
"Blade quick fastener" version
WARNING
Risk of injury due to low material thickness and/or worn application seam on the blade
carriers
If the material thickness is too low and/or an application seam on the blade carrier is worn,
blades may loosen due to the high rotating speed. Thus there is a risk of serious injuries or
death.
The blade carriers must be checked for damage at least once a day or after contact with
foreign objects.
Whenever a blade is changed, check the material thickness of the blade carriers.
The material thickness of the blade carriers must not be less than 3 mm at the weakest
point.
The blade carriers must be replaced at the latest when the application seam (1) is worn at
one point.
The blade carriers must only be replaced by KRONE original spare parts.
