Operation 8
Locking/releasing stop cock 8.3
ActiveMow R 200
Original Operating Instructions 150000521_04_en 47

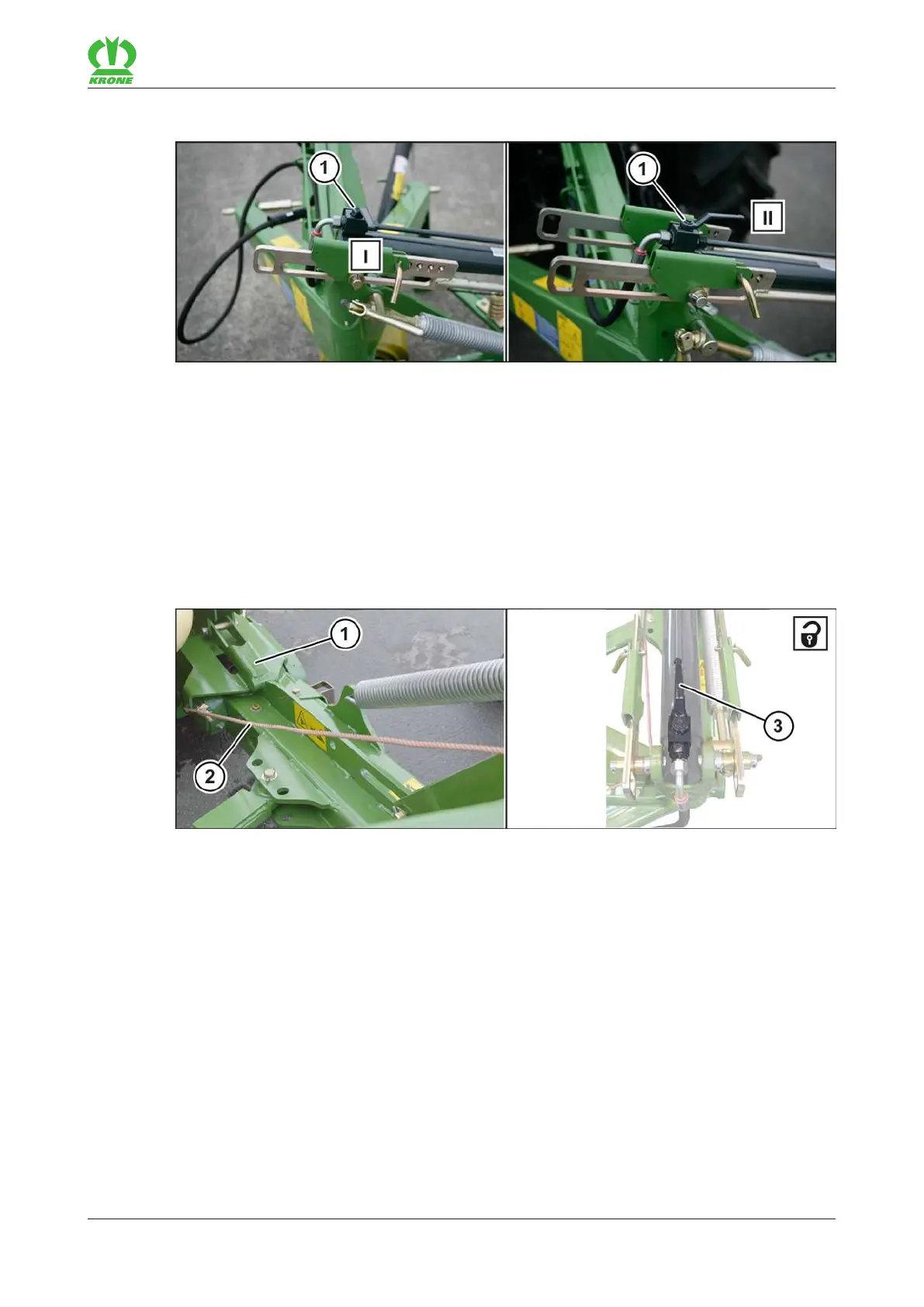

8.3 Locking/releasing stop cock
KMG000-089
Locking
Move stop cock (1) into position (I).
Releasing
Move the stop cock (1) into position (II).
8.4 Lowering machine from transport position to working position
KMG000-075
From transport position to headland position
ü The stop cock is open./The stop cocks are open.
To relieve the locking (1), actuate the control unit (1+).
To release the locking (1), tauten the operating cable (2) and keep it tensioned.
To lower the mower, move the single-acting control unit (1+) to the float position.
Release the operating cable (2).
Headland positions
ü The locking (1) is folded down and the operating cable (2) is not tensioned.
