10 Settings
10.3 Increasing/reducing ground pressure
54
ActiveMow R 200
Original Operating Instructions 150000521_04_en
Setting range of cutting height, .
ü The machine is in the working position, refer to page47.
Shut down and safeguard the machine, refer to page24.
Turn the top link until the cutting height is set.
ð Top link longer = greater cutting height
ð Top link shorter = smaller cutting height
For version with “high-cut skids”
The cutting height can be increased by means of high-cut skids.
KMG000-025
ü The mower is supported securely, refer to page24.
ü The machine is shut down and safeguarded, refer to page24.
The high-cut skids must always be mounted underneath the cutting discs that run next to the
mower drums.

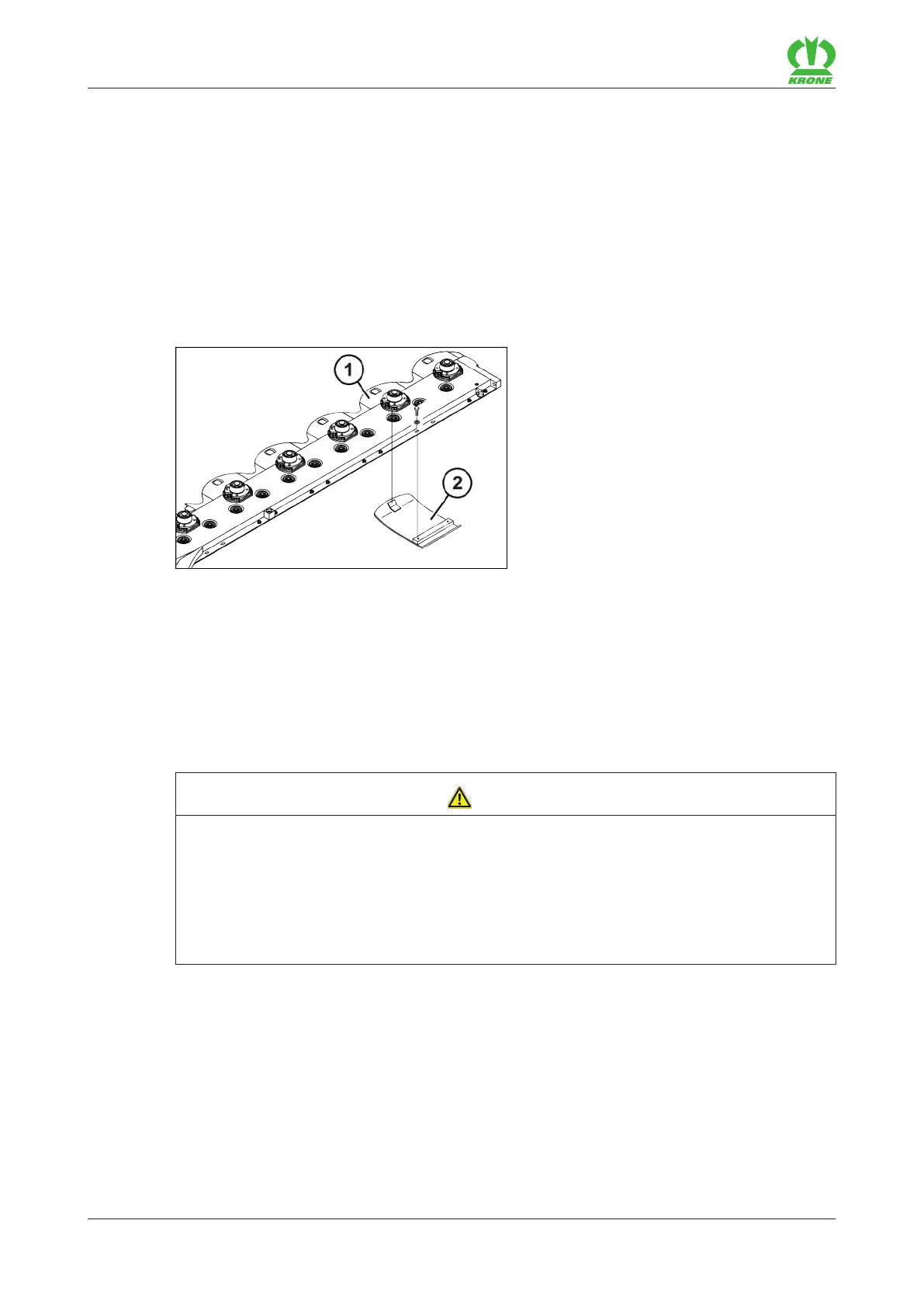

Insert the high-cut skid(2) into the sliding skid(1) and screw it.
10.3 Increasing/reducing ground pressure
WARNING
Risk of injury due to adjustment of relief spring(s)
In the working position the relief spring(s) are subject to high drawing tension. In case an
attempt is made to remove or adjust the relief spring(s) when the machine is in the working
position, people may be seriously injured or killed.
The relief spring(s) must only be dismounted or adjusted in the transport position.
The bottom fittings on the relief spring(s) are fully screwed in.
