Operating support jack 8.2
ActiveMow R 200
Original Operating Instructions 150000521_04_en 45

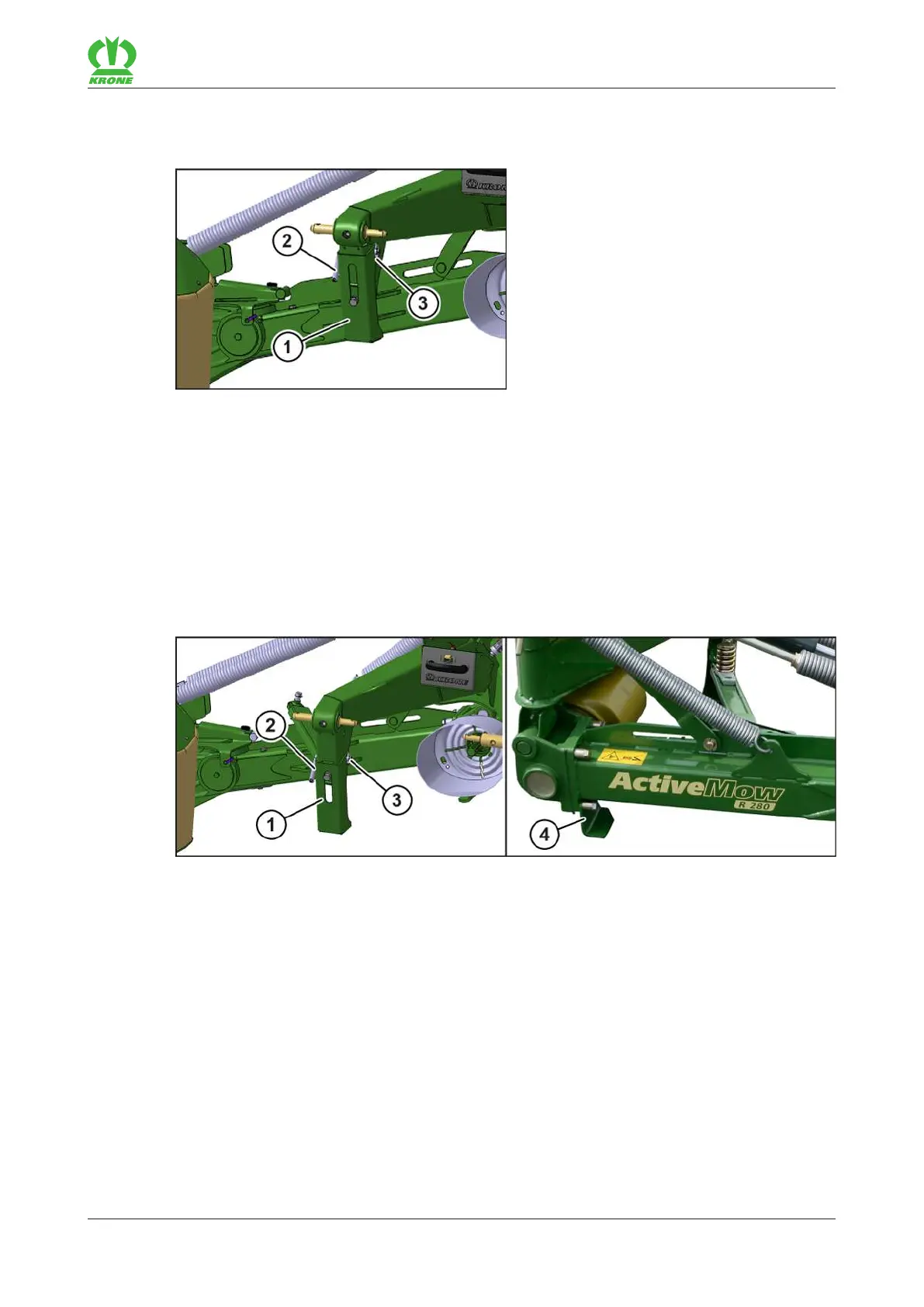

8.2.1 Moving support jack into transport position
For the "Series" version
KM000-715
 Raise the machine via the rear hydraulics until the support jack(1) can be pushed up.
 Shut down and safeguard the machine, refer to page24.
 Pull the linch pin(3) out of the locking pin(2).
 Remove the locking pin(2) and move the support jack(1) into the upper position.
 Insert the locking pin(2) into the upper borehole and secure it with the linch pin(3).
8.2.2 Moving support jack into support position
For the "Series" version
KM000-436
 Raise the machine via the rear hydraulics until the support jack can be pushed down.
 Pull the linch pin(3) out of the locking pin(2).
 Remove the locking pin(2) and move the support jack(1) into the lower position.
 Insert the locking pin(2) into the lower borehole and secure it with the linch pin(3).
 Lower the machine via the rear hydraulics until the machine is resting on the support
jack(1,4).
 Shut down and safeguard the machine, refer to page24.
