13 Maintenance - Gearbox
13.1 Input gearbox
64
ActiveMow R 200
Original Operating Instructions 150000521_04_en
13 Maintenance - Gearbox
WARNING
Risk of injury due to non-observance of relevant safety instructions
If the relevant safety instructions are not observed, persons may be seriously injured or killed.
To avoid accidents, the relevant safety instructions must be read and observed, refer to
page12.
WARNING
Risk of injury due to non-observance of safety instructions
If the relevant safety routines are not observed, persons may be seriously injured or killed.
The safety routines must be read and observed to avoid accidents, refer to page24.
13.1 Input gearbox

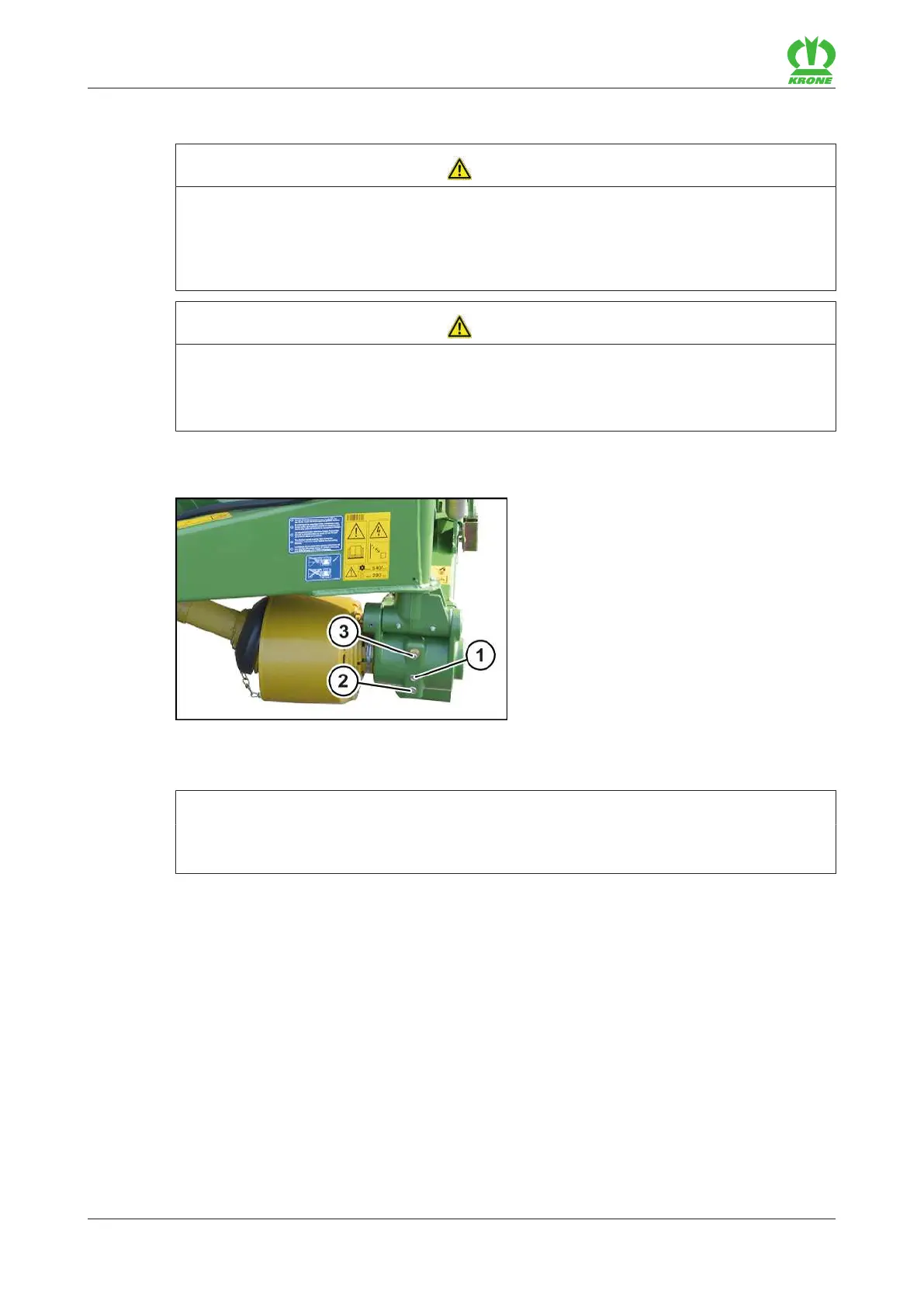

KMG000-005
Observe the safety routine “Safely performing oil level check, oil change and filter element
change”, refer to page25.
INFORMATION
The oil level must be checked and the oil must be changed in working position and with
machine in horizontal position.
Check oil level
Unscrew the locking screw of the inspection hole (1).
ð If the oil reaches up to the inspection hole(1):
Screw on the locking screw of the inspection hole (1), tightening torque refer to
page60.
ð If the oil does not reach up to the inspection hole(1):
Remove the locking screw from the filling hole (3).
Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
Screw on the locking screw of the inspection hole(1) and the locking screw of the filling
hole(3), tightening torque refer to page60.
