10.3.3 From Headland Position to Transport Position
Pos: 117.27 /BA/Bedienu ng /EasyCut/Tripel/ Transport in Arbeits stellung Bild EC B750/ B890/B970 neue Bedieneinh eit @ 163\mod_13660 33831225_78.doc x @ 1423909 @ @ 1
1
2
3
ECB00068

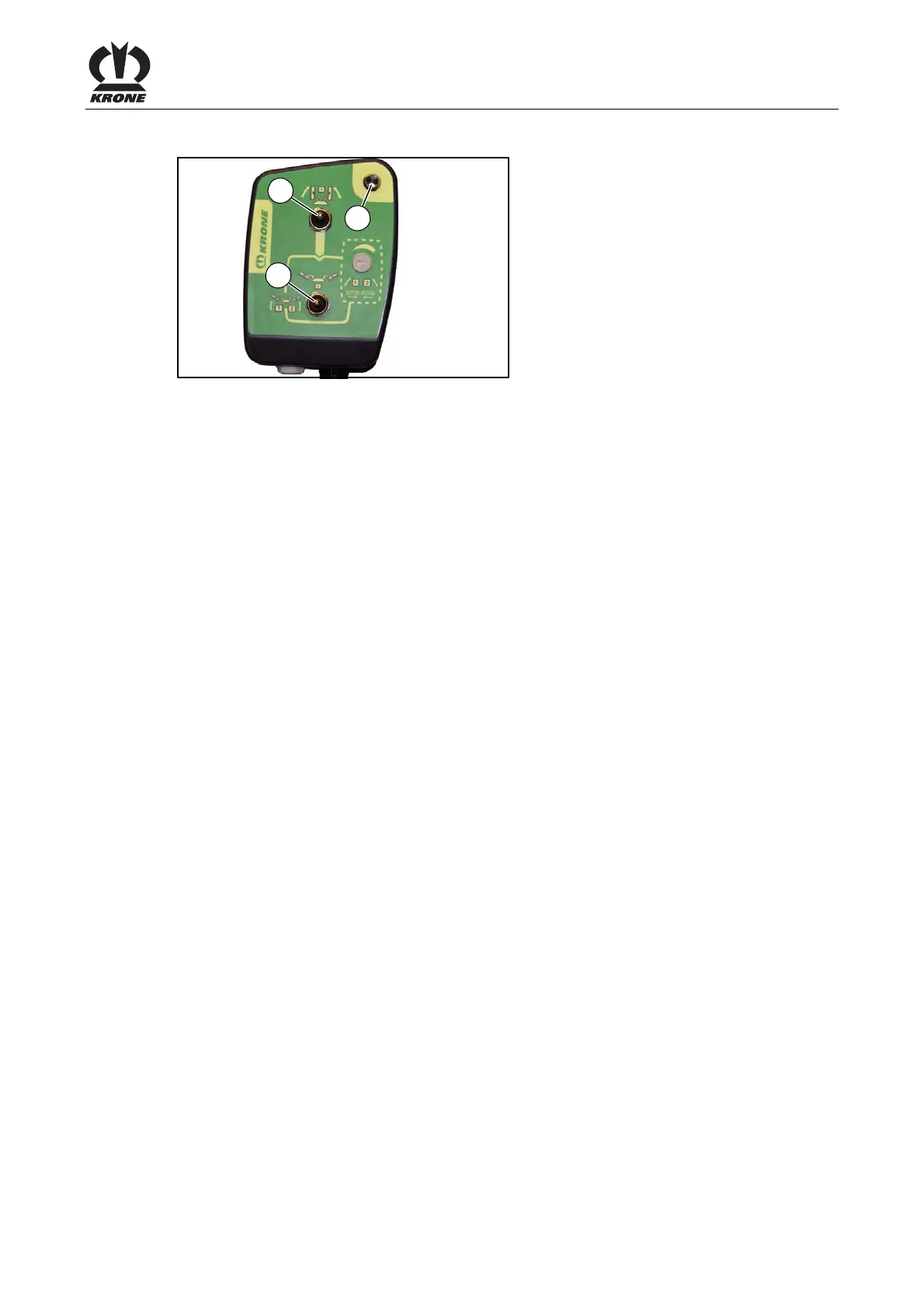

Fig. 21
Pos: 117.28 /BA/Bedienu ng /EasyCut/Tripel/ Vorgewende- in Transpor tstellung bringen Te xt EC B 870 / B 890 / B 970 neue Bedieneinhei t @ 202\mod_13857215084 42_78.docx @ 1694193 @ @ 1
Prerequisite:
– The PTO shaft drive is switched off.
– The parking supports are swivelled into transport position and locked by bolts, refer to
chapter Start-up “Swivelling Parking Support into Transport Position”.
– The machine is in headland position.
From headland position to transport position:
• Move the rocker switch (2) to “up” position and keep it there.
• Activate the double-action control unit (blue 2+) until the mowing units are raised from
headland position to transport position.
• Move the rocker switch (2) to centre position to switch off the control unit.
