14.1.1 Cutter Blades
Pos: 140.7 /BA/W artung/Mähwerke/Die Bohrun g der Mähklingen kann sic h durch Verschleiß auf weiten. @ 10\mod_12210489827 15_78.docx @ 13167 5 @ @ 1
The borehole on the cutter blades may spread due to wear.
Pos: 140.8 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Warnung - Zu geringe Mater ialstärke an den Mähklinge n_neu @ 312\mod_141898 3956660_78.docx @ 24095 55 @ @ 1
Danger! - Insufficient thickness of material on the cutter blades.
Effect: Danger to life or serious injuries.
• The cutter blades must be replaced at the latest when the wear limit is reached (see mark
(1) on the cutter blade; dimension a less than or equal to 13 mm).
Pos: 140.9 /BA/W artung/Mähwerke/Mähklin gen beidseitig verwe nbar_neu @ 3\mod_1204728 012601_78.docx @ 72608 @ @ 1

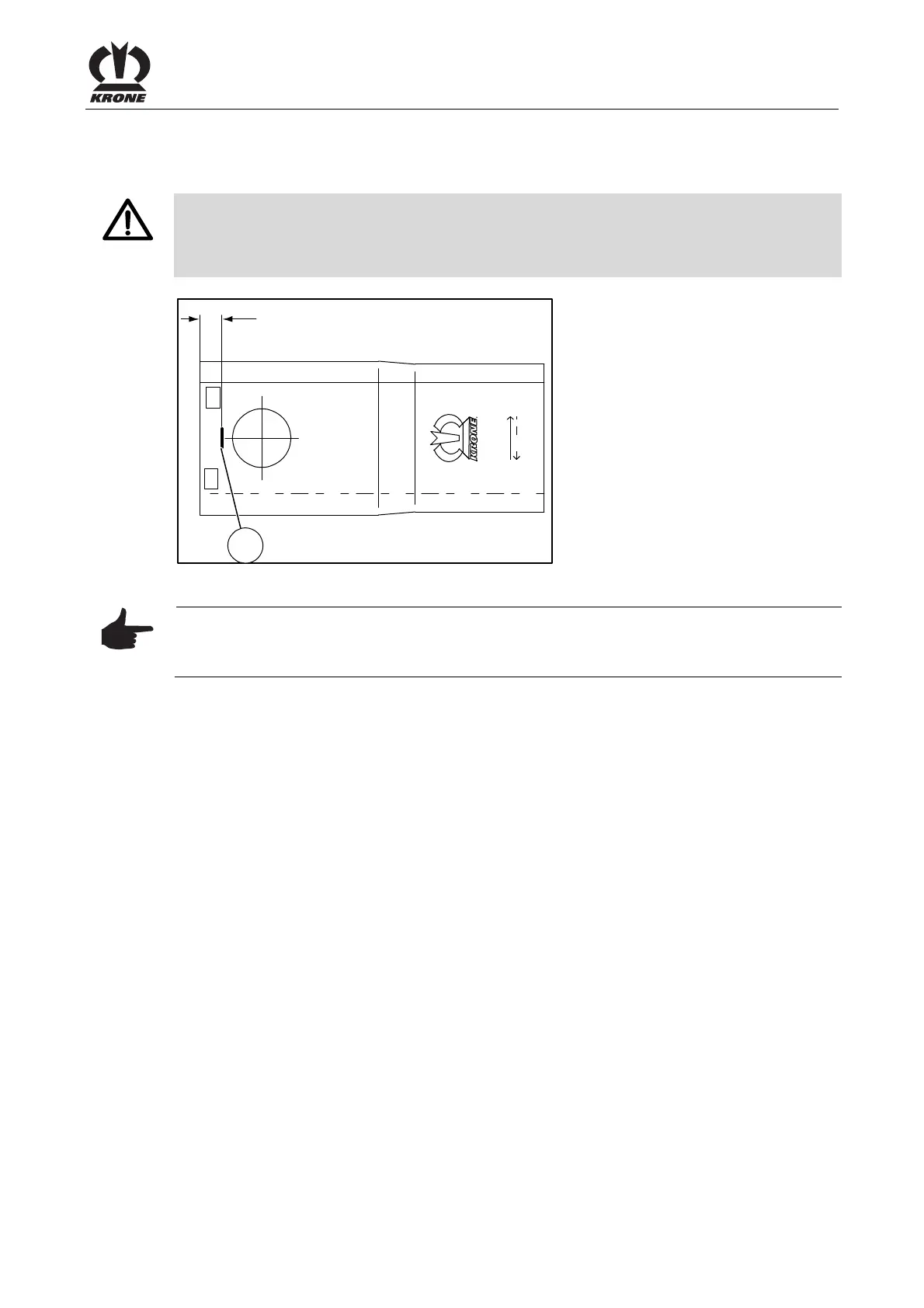

a
EC 253 0
1
Fig. 49
Note - The cutter blades can be turned around and used on both sides.
• When cutter blades are missing or damaged, they must be replaced as a complete set.
This prevents dangerous unbalanced rotation
