11.7 Setting the Distance of the Rollers
Pos: 119.67 /BA/Einste llungen/Mähwer ke/Rollen-Condition ers/Bei Ausführung Rollen-Conditioner @ 193\ mod_138323213453 8_78.docx @ 1647193 @ @ 1
With roller conditioner design (CR)
Pos: 119.68 /BA/Einste llungen/Mähwer ke/Rollen-Condition ers/Einstelle n des Rollenabstandes Easy Cut CR-Ausführung @ 193\ mod_1383229458078_78. docx @ 1647015 @ @ 1
EC-452-0
2
1
CRI-0-001
Fig. 36

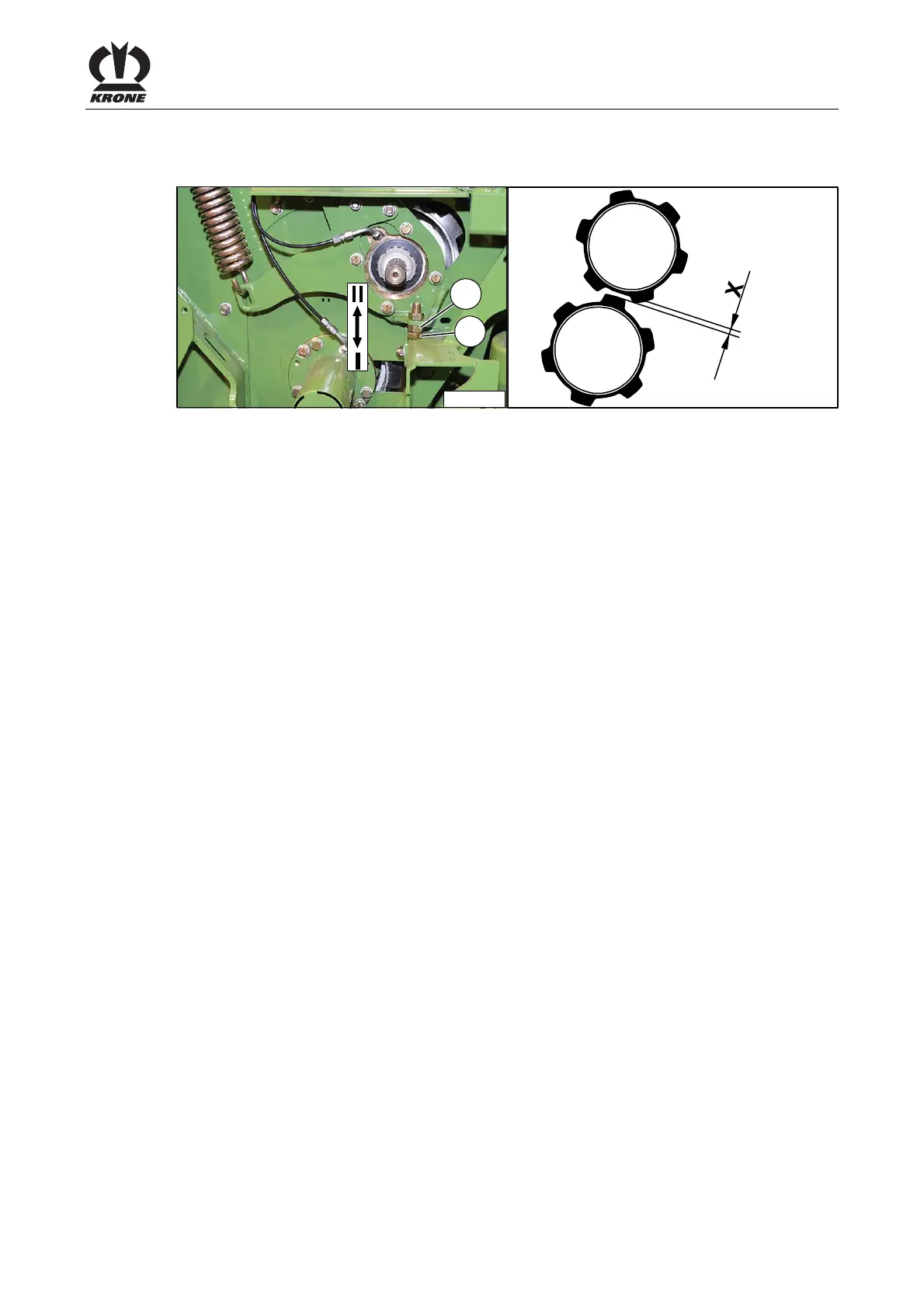

The roller distance (X) can be adjusted by means of the screw (1), right and left side of the
machine. The dimension X = 2 mm must not be below this level to avoid high wear on the
rollers.
• Loosen the nuts (2).
Increasing the distance X
• Rotate the screw (1) in the direction (I) to increase the distance.
Reducing the distance X
• Rotate the screw (1) in the direction (II) to reduce the distance.
• Tighten the counter nut (2) again
