10.5 Swivelling parking support into transport position
Pos: 117.40 /BA/Bedienu ng /EasyCut/Abste llstütze/Achtung Abs tellstütze eingekla ppt EC 280/320 CV-Q @ 10\mod_122 1637532743_78.doc x @ 135563 @ @ 1
Caution! - Parking support(s) not swivelled into transport position before road/transport
travel and for work!
Effect: Damage to the machine
• Make certain before road/transport travel and for work that the parking support(s) is/are
raised or folded in and secured in place with a bolt!
Pos: 117.41 /BA/Bedienu ng /EasyCut/Abste llstütze/Abstel lstütze eingeklappt Bi ld EC B 870 @ 225\mod_139230633 7073_78.docx @ 1818505 @ @ 1

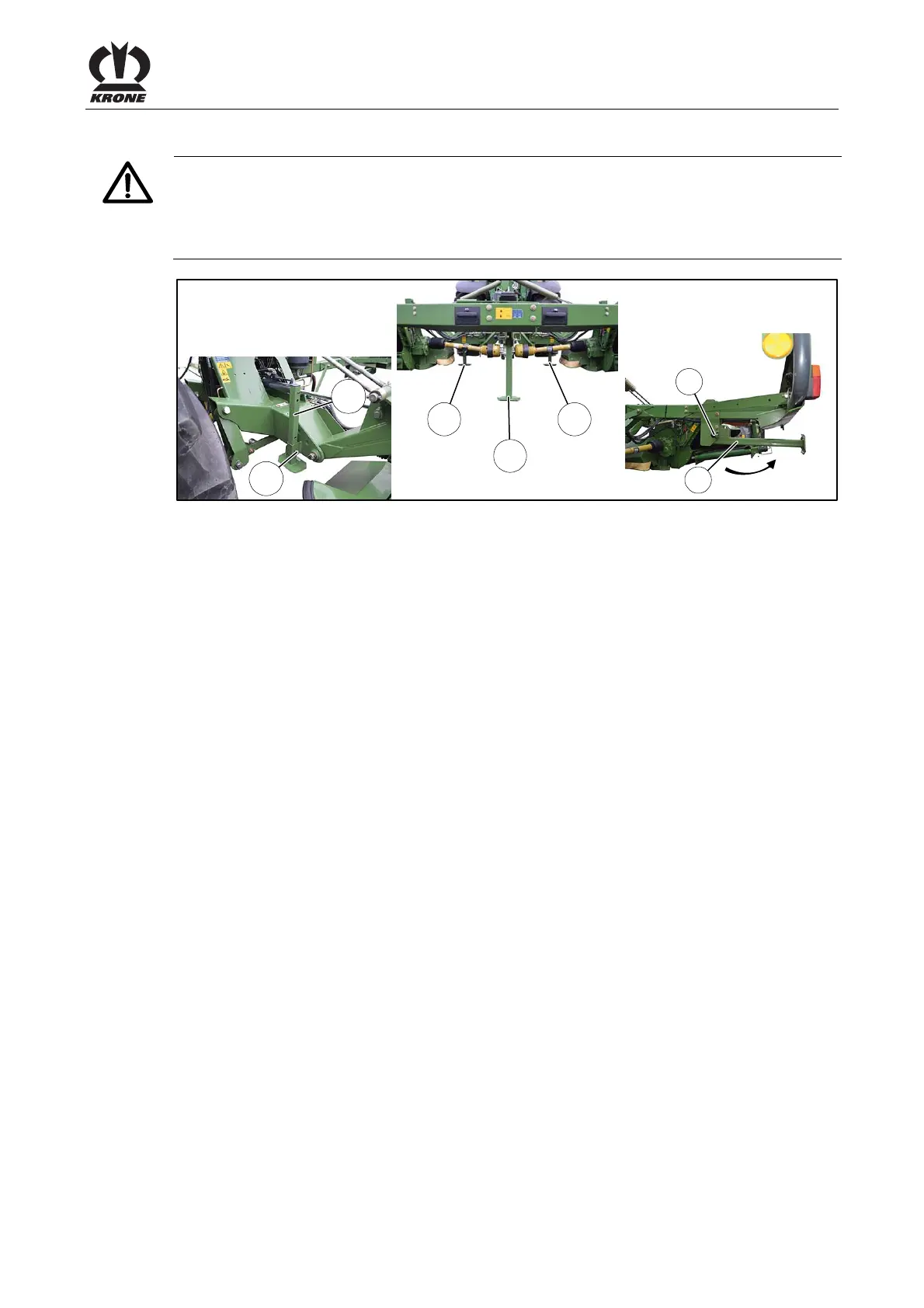

ECB00085
1
4
1
2
3
2
2
Fig. 23
Pos: 117.42 /BA/Bedienu ng /EasyCut/Abste llstütze/Abstel lstützen einklappen EC 7540/ 9140/B 870 @ 11\mod_1223 444229897_78.doc x @ 146352 @ @ 1
The machine is equipped with three parking supports (1+2).
• The parking supports (2) on the right-hand and left-hand sides in working position of the
disc mower must be lifted and locked in position with the bolt (3).
• Swivel the parking support (1) backward and lock it in position with the bolt (4).
