KTM 2016 RC 390 User Manual

13 BRAKE SYSTEM 106
L02133-10

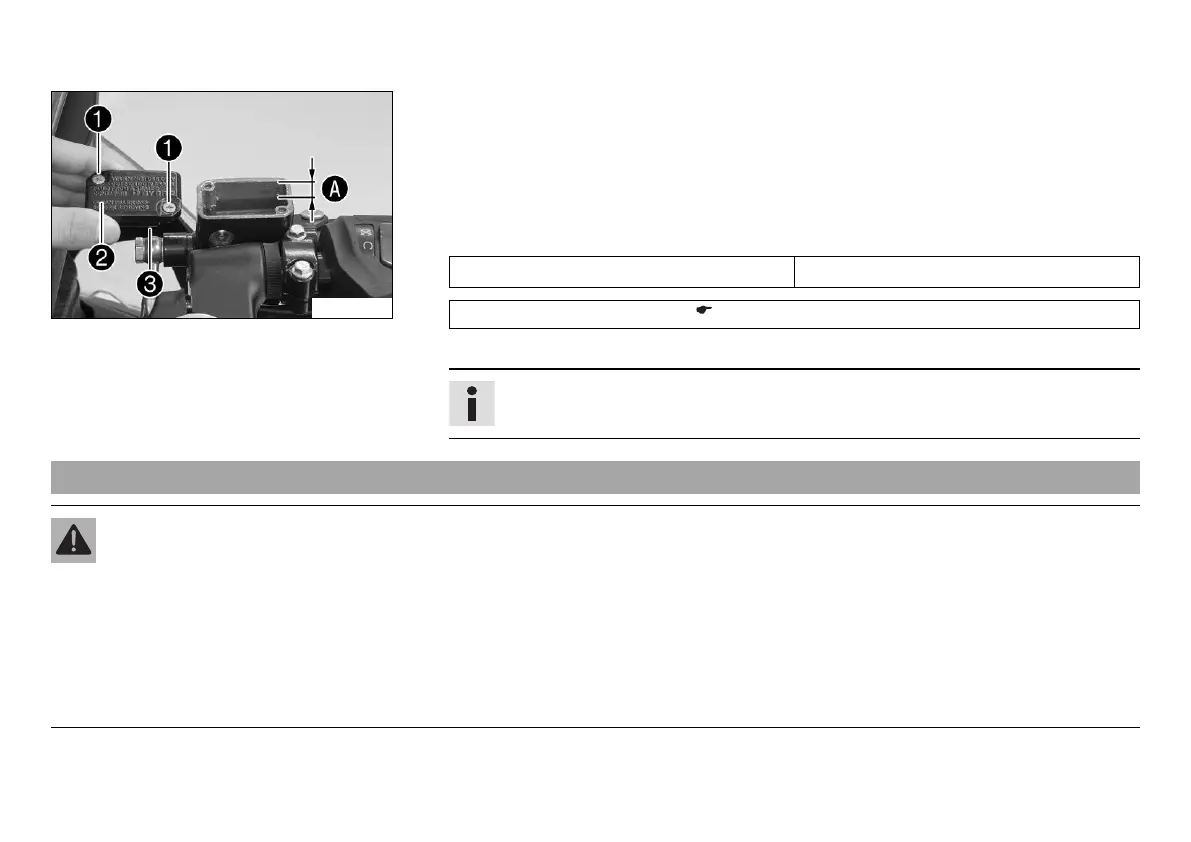

Main work
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws

.
–
Remove cover

with membrane

.
–
Add brake fluid to level

.
Guideline
Level

5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 185)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
13.5 Checking the front brake linings
Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized KTM workshop will be glad to help.)
Note
Danger of accidents Reduced braking efficiency caused by damaged brake discs.
– If the brake linings are not changed in time, the steel brake lining carriers grind on the brake disc. The braking effect is greatly
reduced and the brake discs are destroyed. Check the brake linings regularly.

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
