KTM 2016 RC 390 User Manual

14 WHEELS, TIRES 118

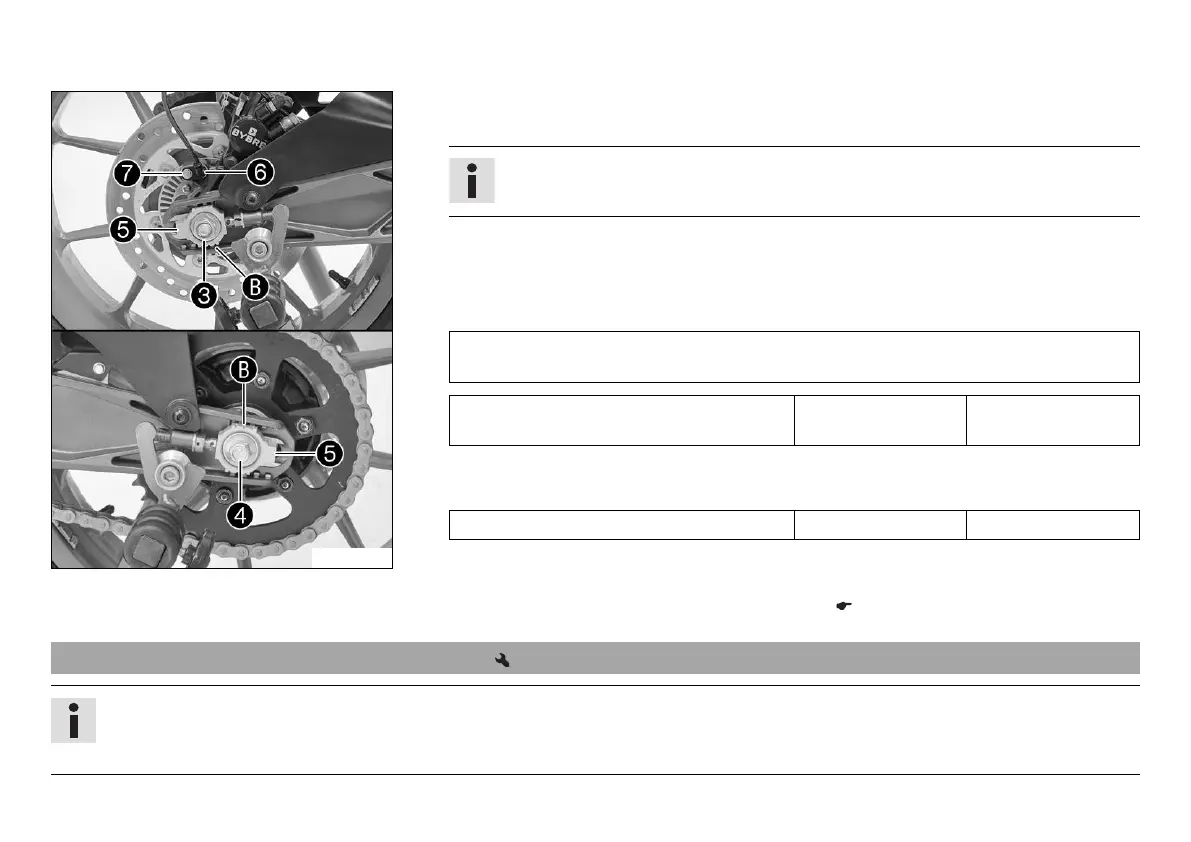

L02150-13
–
Pull the rear wheel back and mount wheel spindle

with the washer and chain
adjuster

.
Info
Mount the left and right chain adjusters

in the same position.
–
Mount nut

and washer.
– Push the rear wheel forward so that the chain adjusters are in contact with the screws,
and tighten nut

.
Guideline
In order for the rear wheel to be correctly aligned, the markings on the left and right
chain adjusters must be in the same position relative to the reference marks

.
Nut, rear wheel spindle M14x1.5 90 Nm
(66.4 lbf ft)
–
Position wheel speed sensor

in the drill hole. Mount and tighten screw

.
Guideline
Screw, wheel speed sensor holder M6 7 Nm (5.2 lbf ft)
Finishing work
– Take the motorcycle off of the rear wheel stand. ( p. 78)
14.5 Checking the rear hub rubber dampers
Info
The engine power is transmitted from the rear sprocket to the rear wheel via 6 rubber dampers. They eventually wear out during
operation. If the rubber dampers are not changed in time, the rear sprocket carrier and the rear hub will be damaged.

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
